Category: AUTOMATIC CHANGING SYSTEMS OF TOOLS AND HEADS

1-position PICK-UP

1-position PICK-UP - Machine image

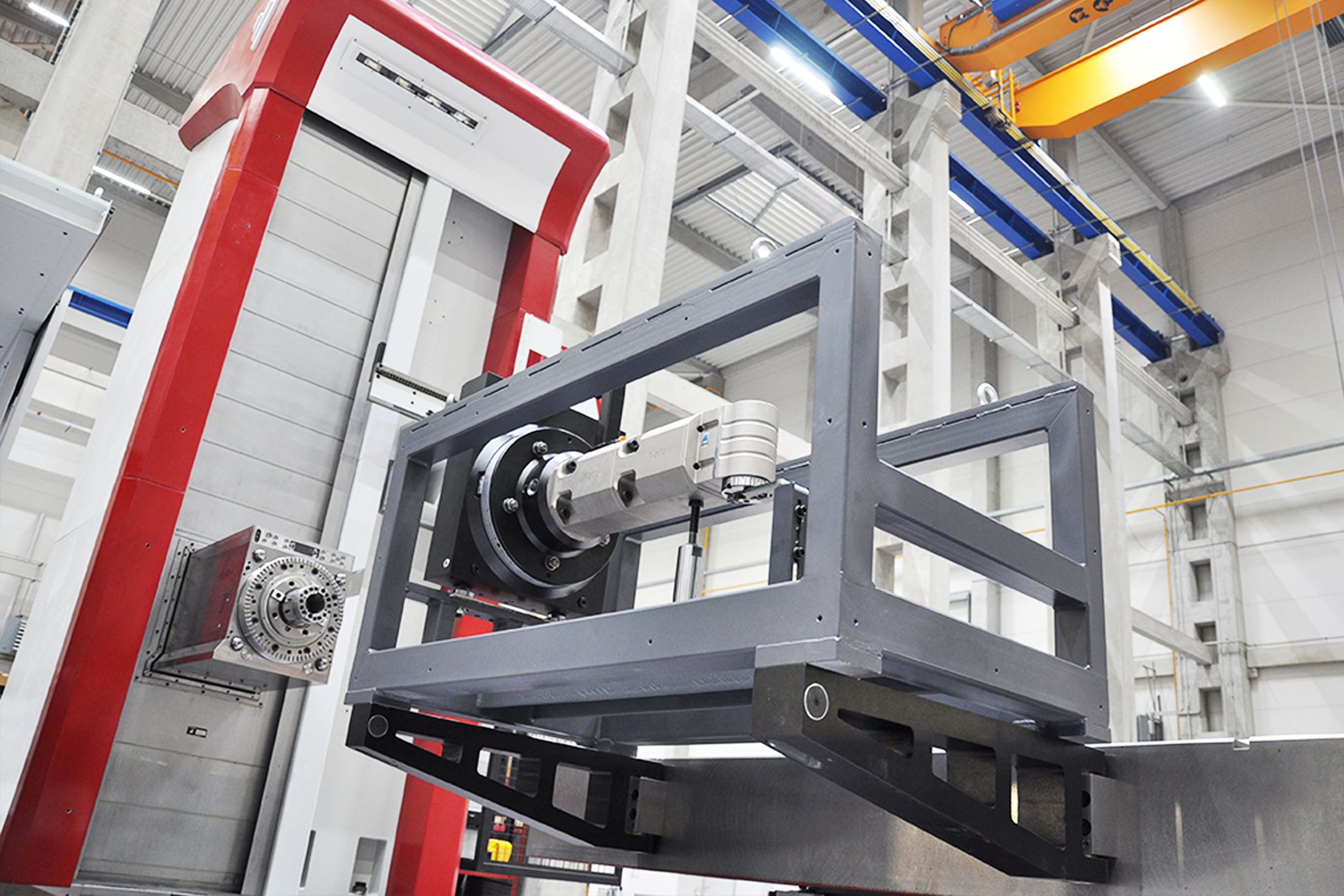

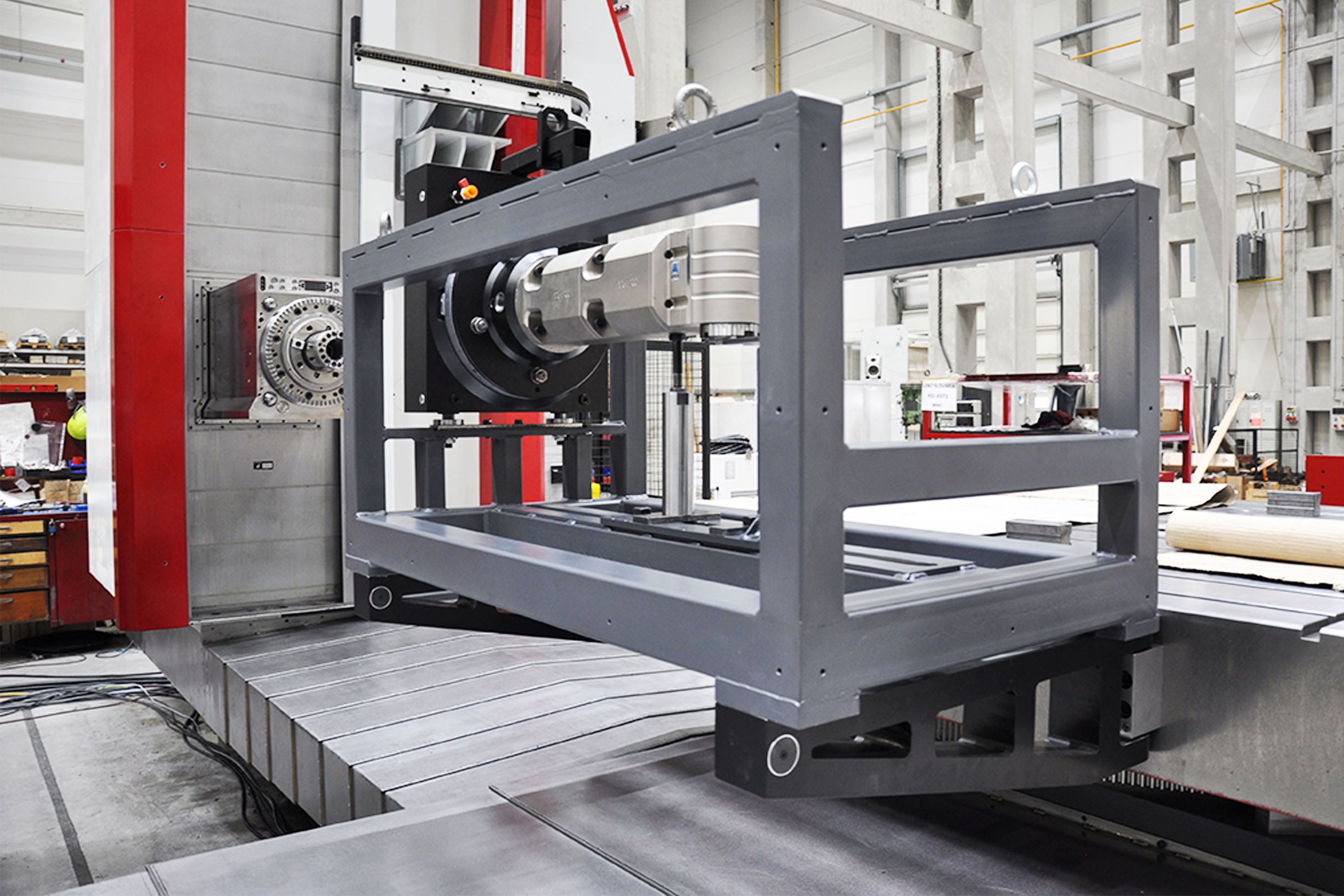

PICK-UP is used for automatic exchange of milling heads with automatic clamping on headstock.

Suitable for table-type machines for tables 1800x2200 mm and bigger.

• The head holder consists of two hinged arms permanently attached to the side of R plate (when arms are folded, there is no risk of holder hitting the column during rotation).

• The head is accurately seated in portable frame.

• For this solution, as an option, we offer also cover for the milling head, which prevents its possible damage (for example caused by flying chips during machining).

• It is semi-automatic exchange of milling head, controlled and inspected by machine operator.

• Fast and accurate exchange for reasonable price.
