Category: AUTOMATIC CHANGING SYSTEMS OF TOOLS AND HEADS

ATC 20/32/40/60/80/100

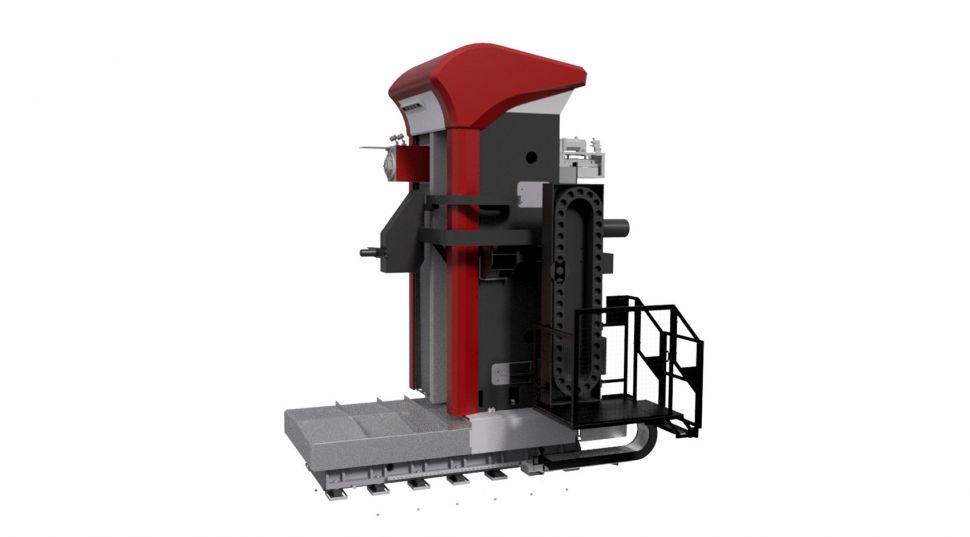

ATC 20/32/40/60/80/100 - Machine image

ATC – automatic tool changer is one of the possibilities of how to automatically change tools into spindle on FERMAT machines.

The ATC can store 20/32/40/60/80/100 tools in the magazine.

Depending on the version, the ATC can change tool into spindle of headstock (horizontal exchange), or into spindle of automatic milling head in zero position (vertical exchange).

Parameters of ATC
Max. tool weight25 kg
Max. weight of all the tools in magazine600 kg
Max. tool diameter – every pocket full
125 mm
Max. tool diameter – every other pocket empty250 mm
Max. tool length400 mm
Spindle taper
DIN 50, CAT 50, BT 50

Gallery
