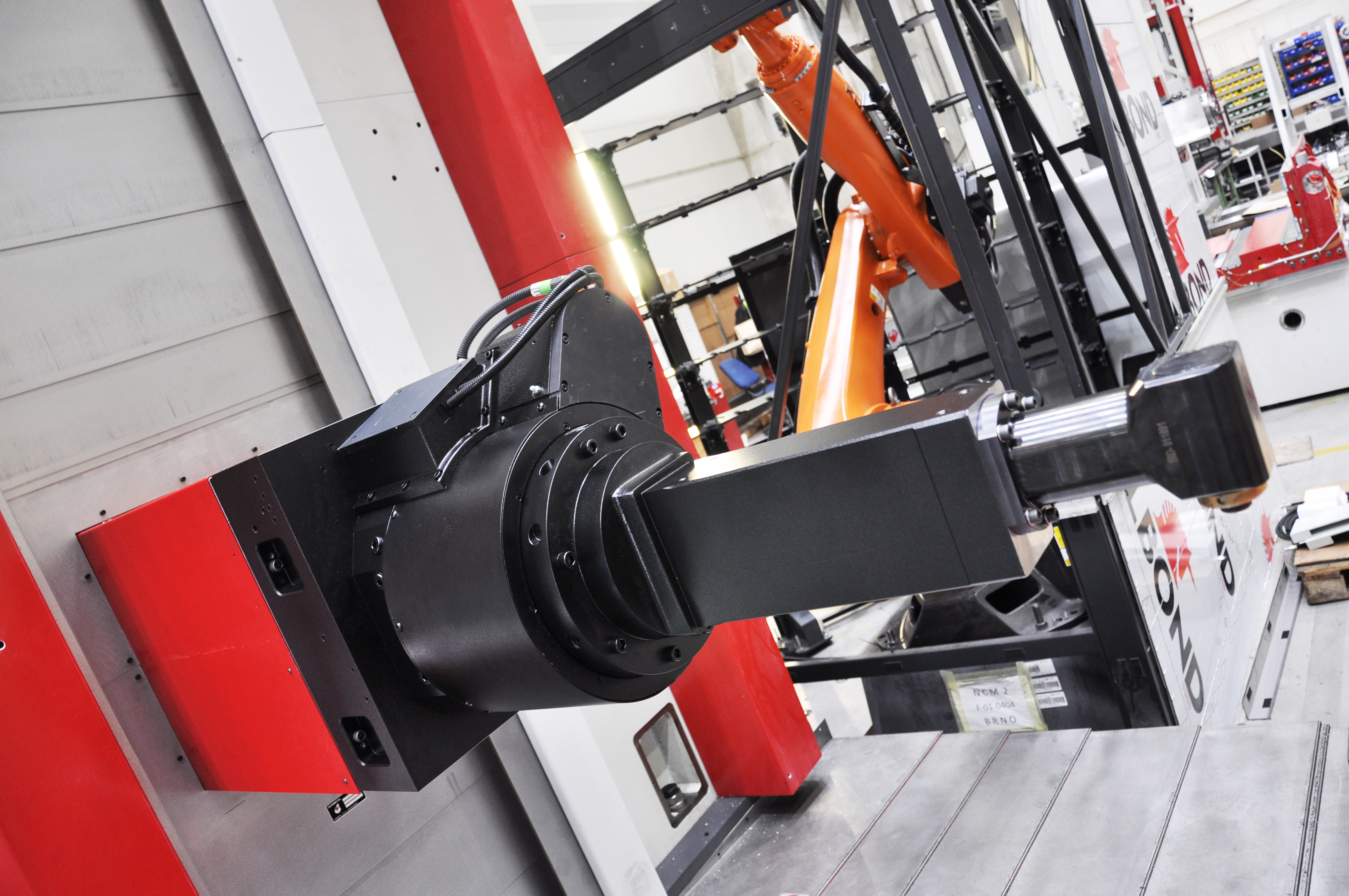

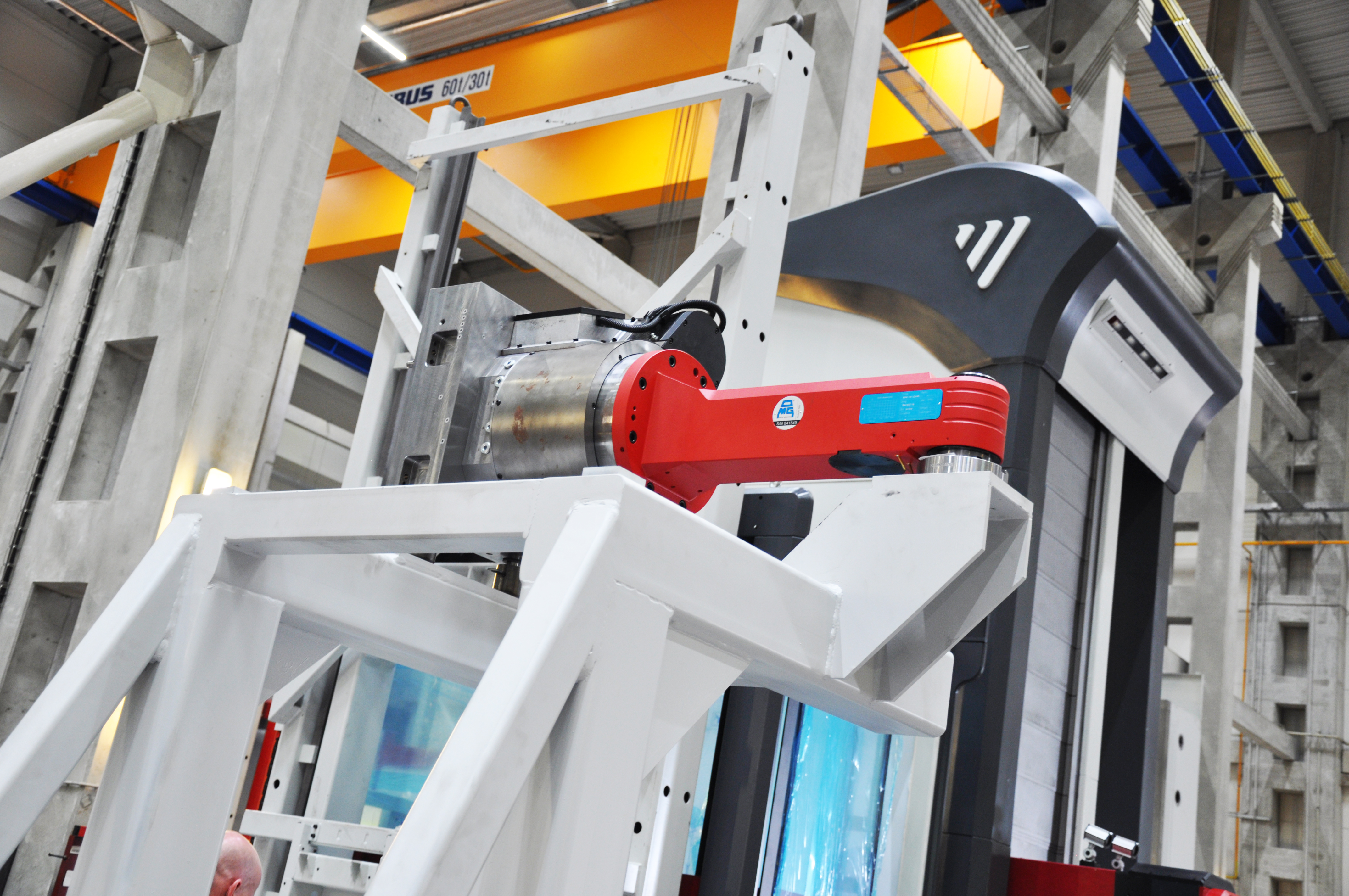

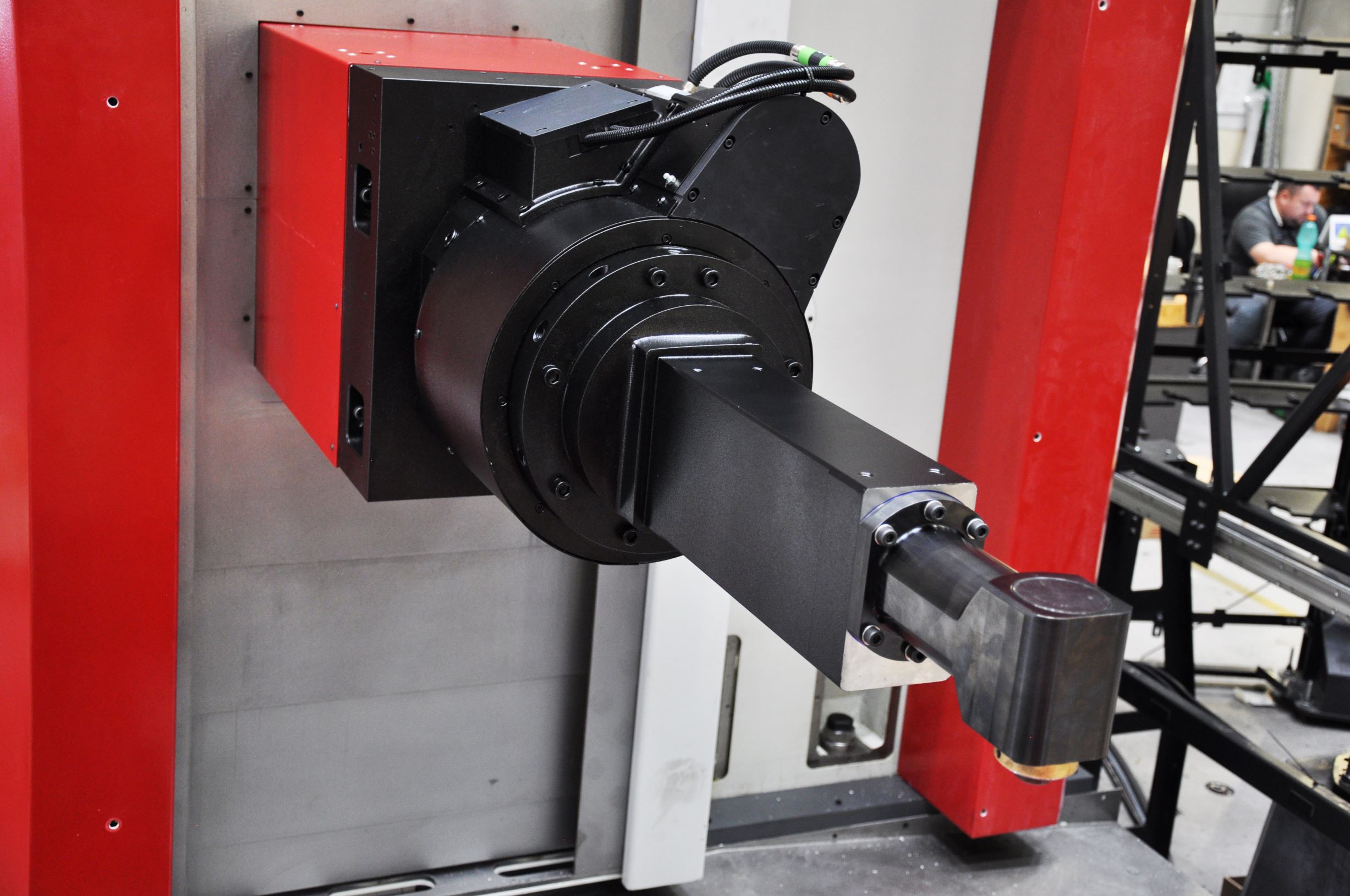

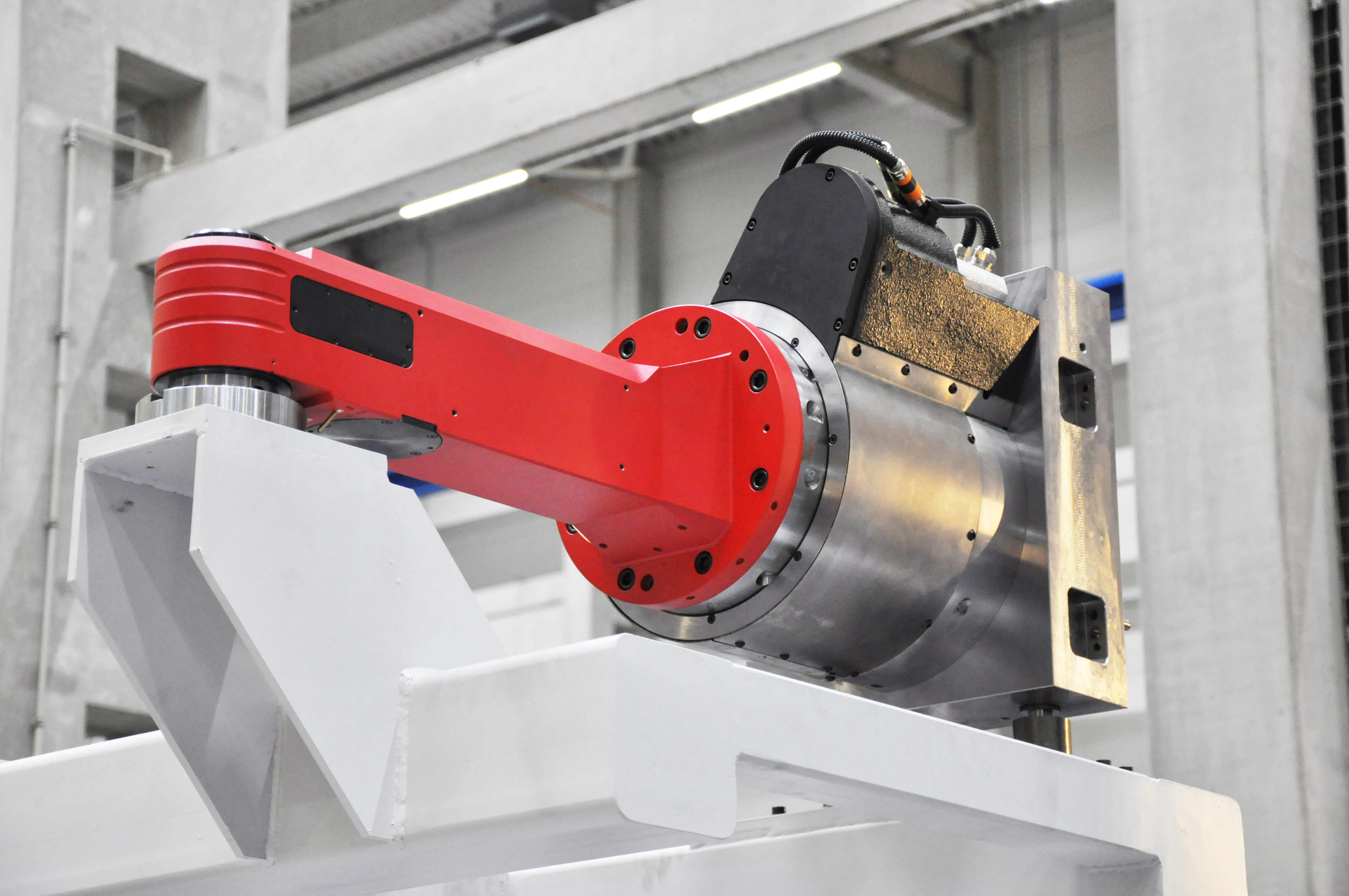

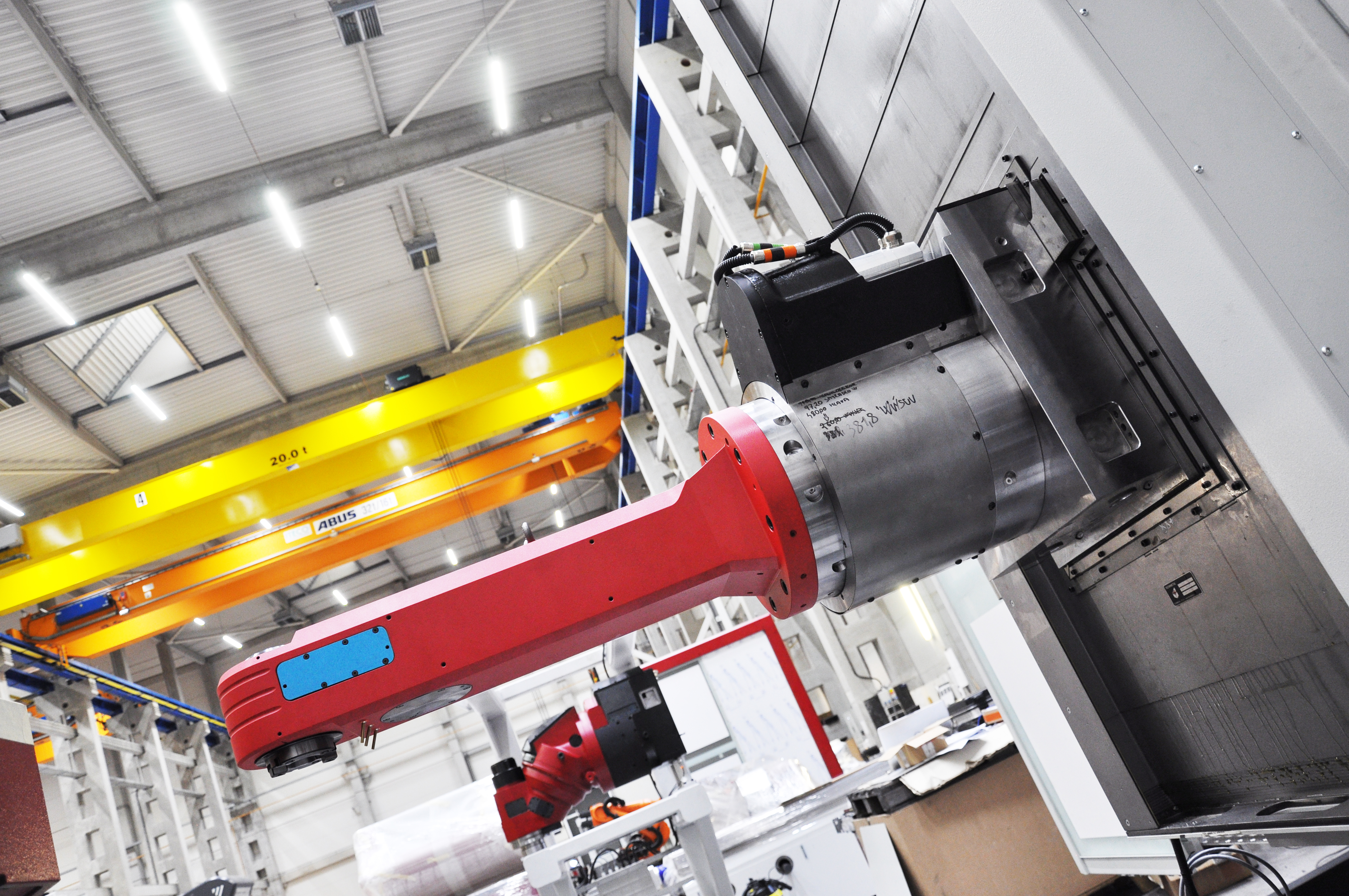

Automatic C-axis

Manual heads are typically positioned manually, after screws that keep the head in position, are released. This restriction can be removed by adding an adapter - automatically positioned C-axis - between headstock and the milling head. Therefore manual head becomes automatic, where positioning of C-axis is faster and more accurate.

  • this adapter is suitable for all types of headstocks.
  • indexing by 0,001°
  • automatic positioning by servo motor
  • range of C-axis ± 180°
  • clamping force of brake 3000/3427 Nm
  • sensor accuracy ±3,8’’
  • max. torque 830/976 Nm
  • max. speed 8,5/7,3 rpm
  • automatic or manual clamping on headstock
