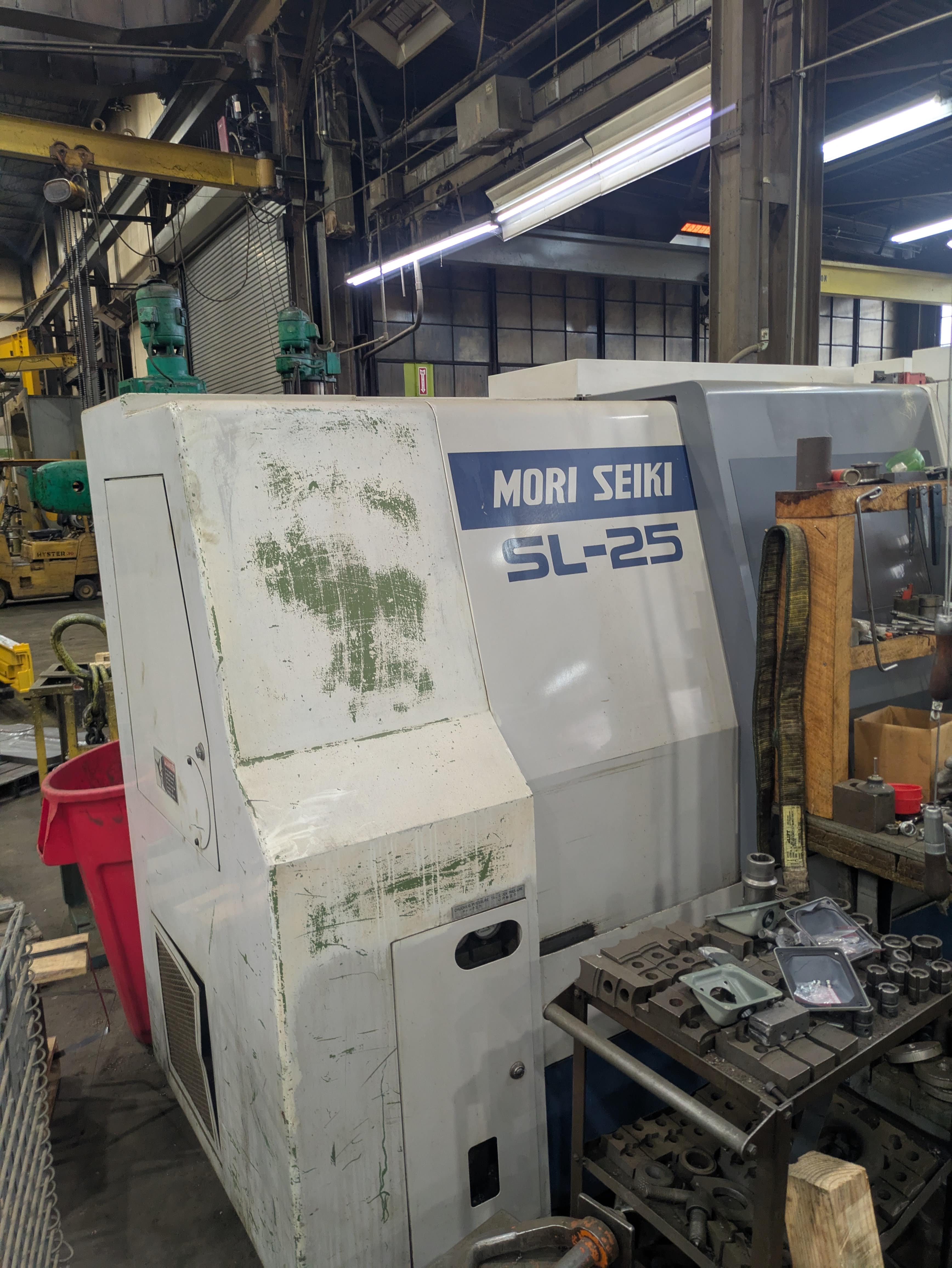

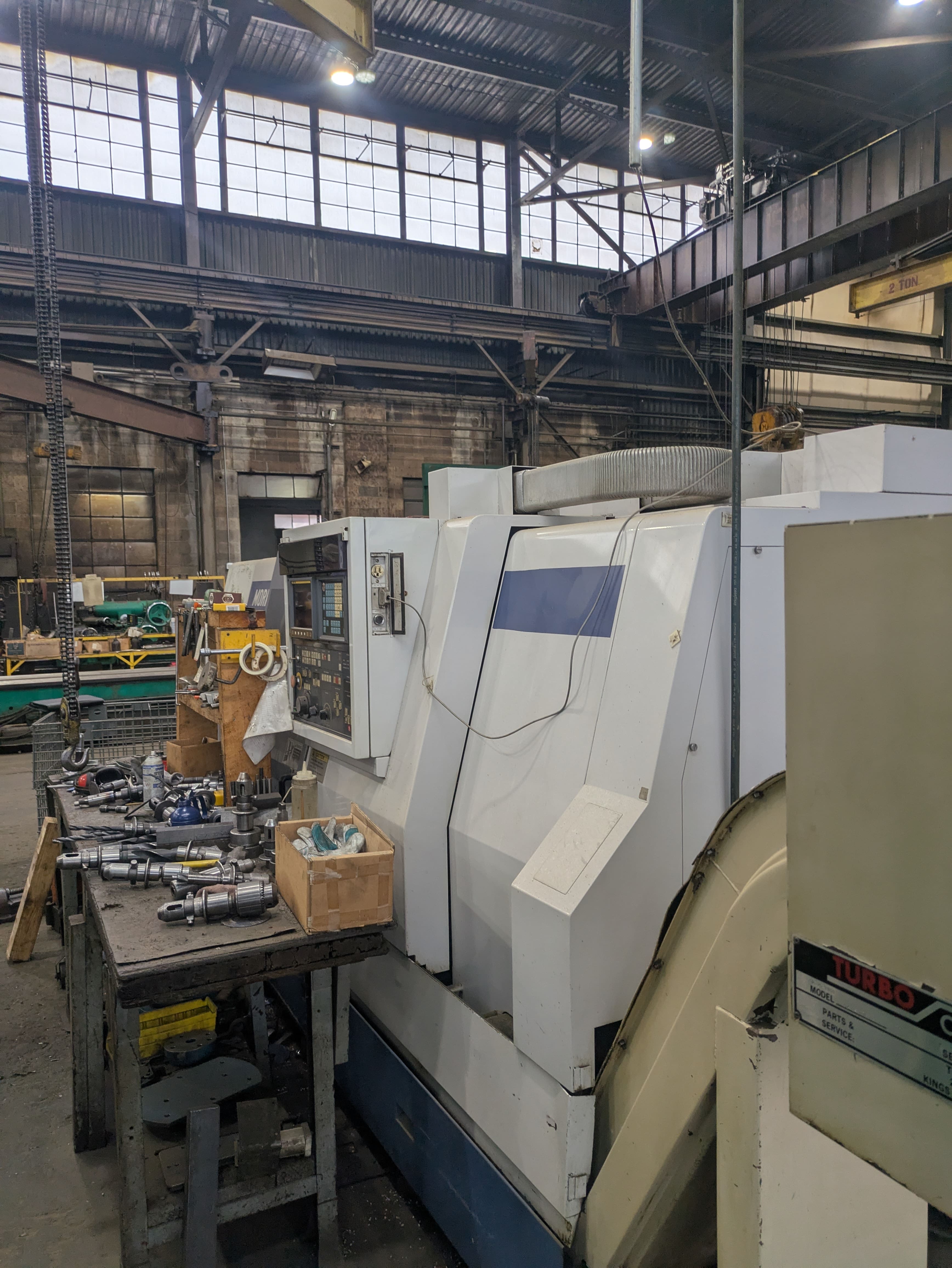

CNC Lathe MORI SEIKI SL 25

SWING OVER BED 20.5"

SWING OVER CROSS SLIDE 13.8"

MAX. TURNING DIA. (RECOMMENDED) 10.2"

DISTANCE BETWEEN CENTERS 44.3"

MAXIMUM TURNING LENGTH 40.6"

X AXIS TRAVEL 6.3"

Z AXIS TRAVEL 43"

RAPID TRAVERSE RATE X AXIS 472 IPM

RAPID TRAVERSE RATE Z AXIS 590 IPM

SPINDLE NOSE A2-6

SPINDLE BORE 3.15"

MAXIMUM BAR CAPACITY 2.68"

SPINDLE SPEEDS 35 - 3,500 RPM

SPINDLE MOTOR 20 HP

TURRET CAPACITY 10 STATION TURRET

TAILSTOCK QUILL TAPER MT #4

TAILSTOCK QUILL DIAMETER 4"

TAILSTOCK QUILL STROKE 4"

TAILSTOCK BODY TRAVEL 39"

DIMENSIONS, APPROX. 169"L x 63"W x 74"H WEIGHT, APPROX. 12,100 LBS
