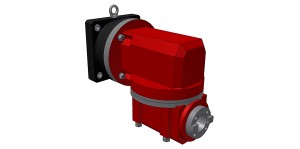

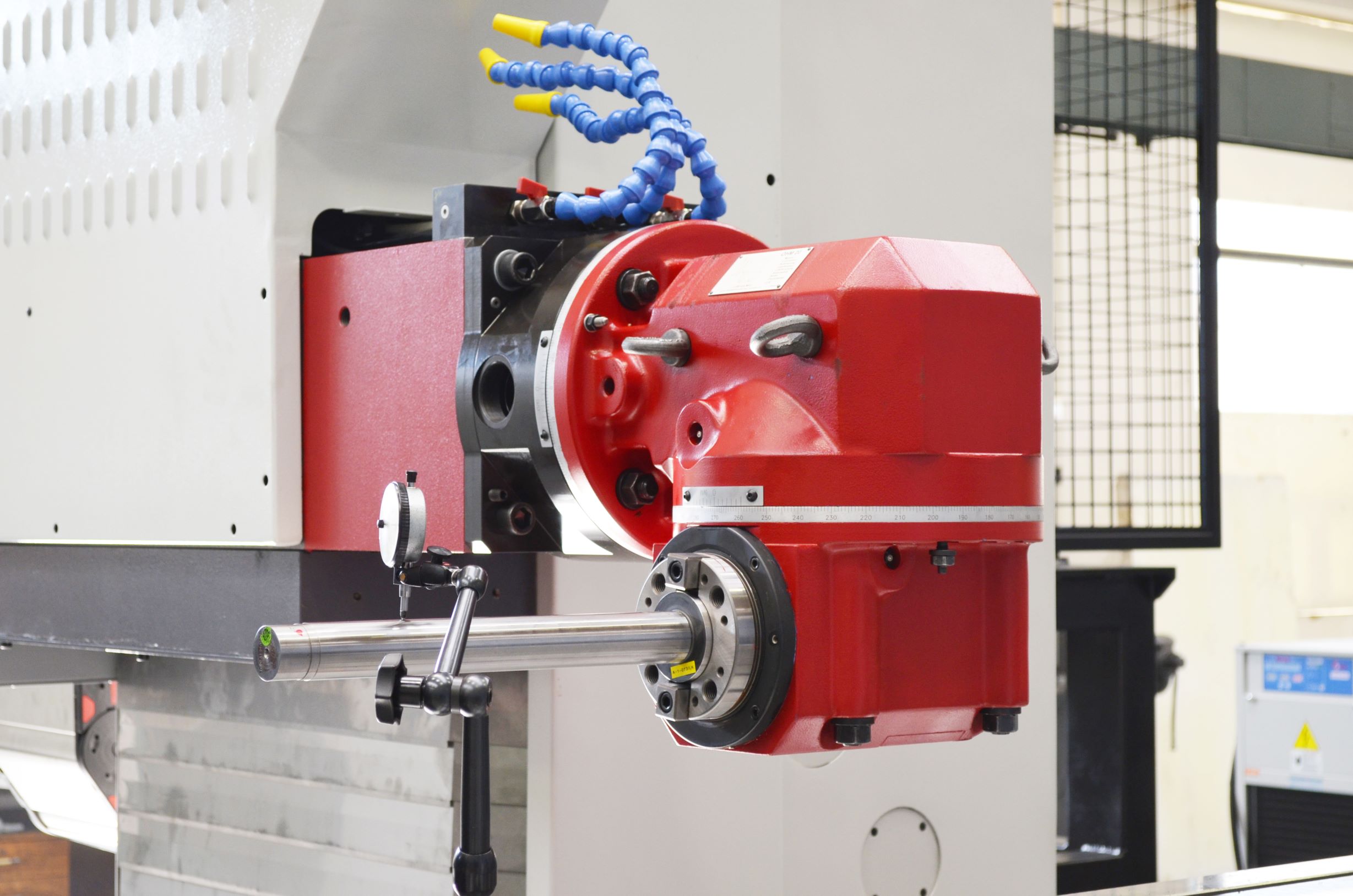

OHM 20
Two Axis Orthogonal Manual Milling Head.
Manually attached to the headstock, manual positioning, manual tool clamping and unclamping.
units
OHM 20
Revolutions
rpm
10-2000
Maximum Power
kW
20
Max. Torque
Nm
1000
Tool Taper
-
SK 50
Tool Clamping Force
kN
20±15%
Positioning
°
any
Outside Coolant: standard
Cooling Through Spindle: not possible
