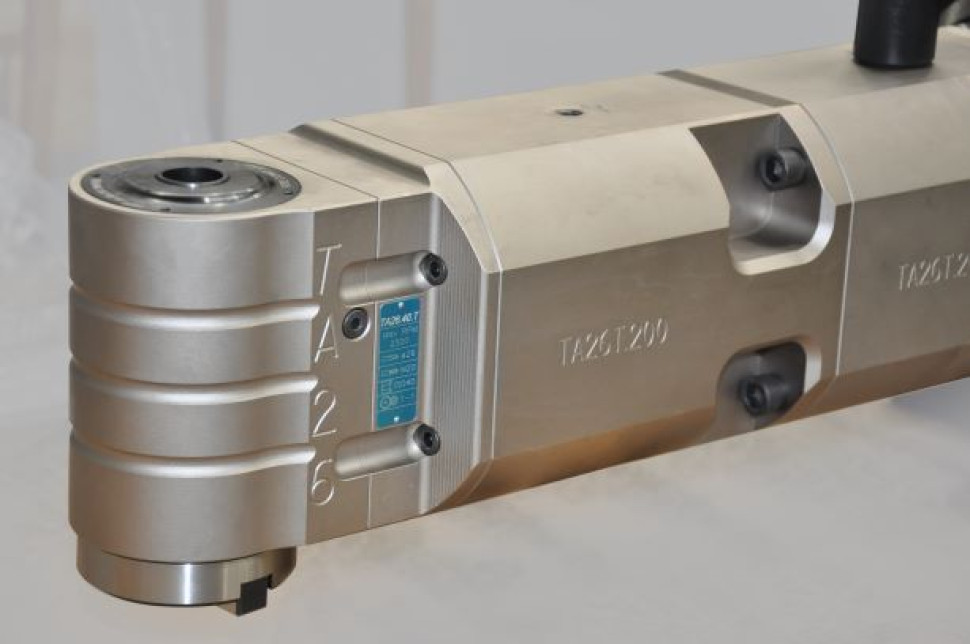

OMG TA 26 Right Angle Milling Head

Manually attachment to the headstock, tool clamping and unclamping, positioning.

	units	OMG TA 26
Max. Speed	rpm	10 - 2 500
Tool Taper		SK 40 (DIN, MAS 45°, ANSI) / Capto C4, HSK63, SK40, ER40
Tool Clamping Force	kN	-
Positioning	°	any
Extension	in	7.9 / 15.7 / 23.6 / 31.5
Extension	mm	200 / 400 / 600 / 800
Outside Coolant		standard
Coolant Through Spindle		NO
Lubrication		manual by grease
