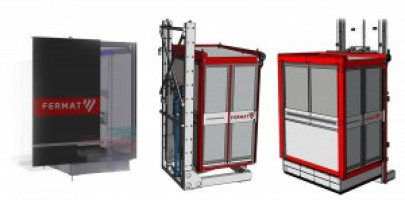

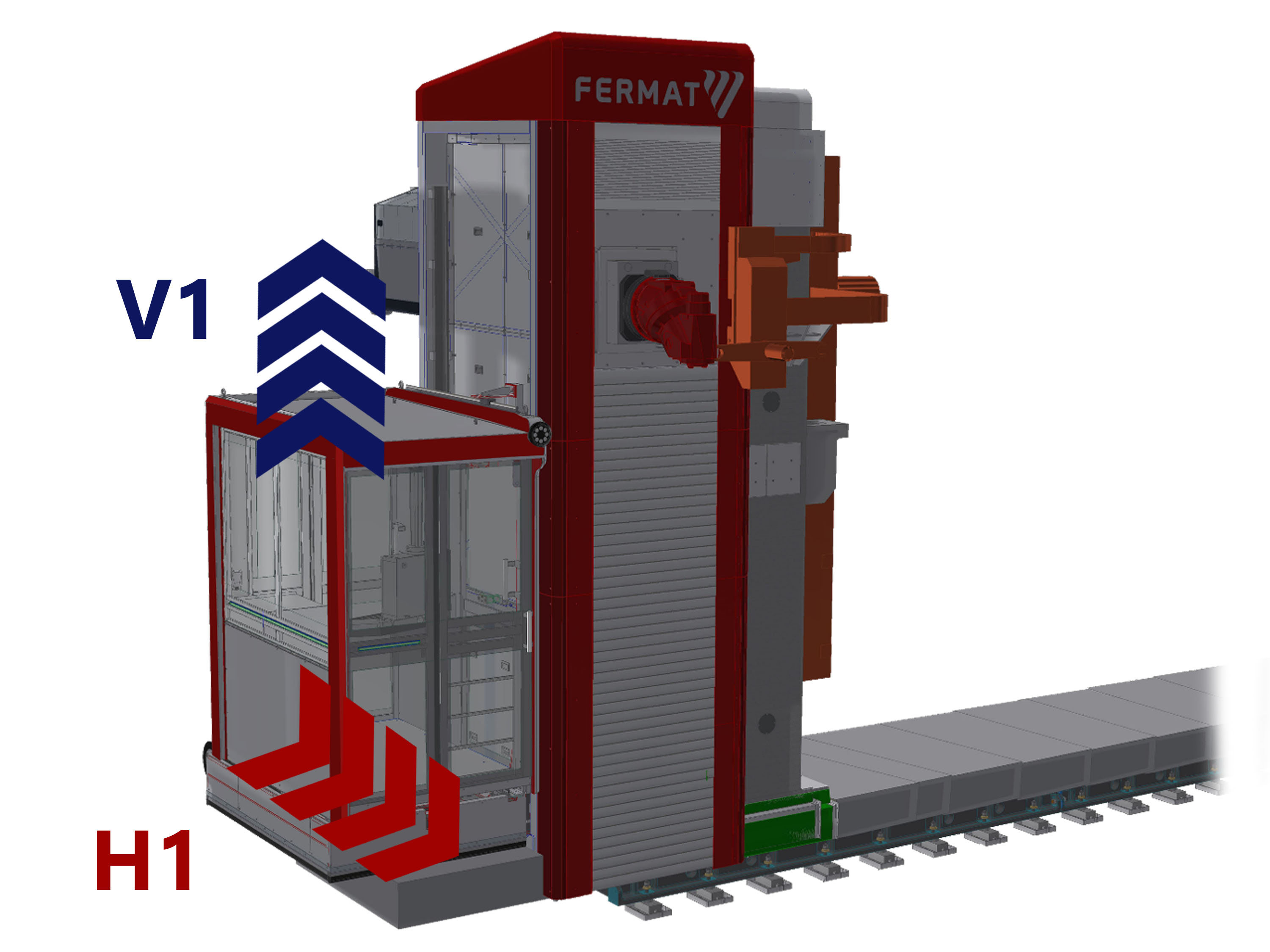

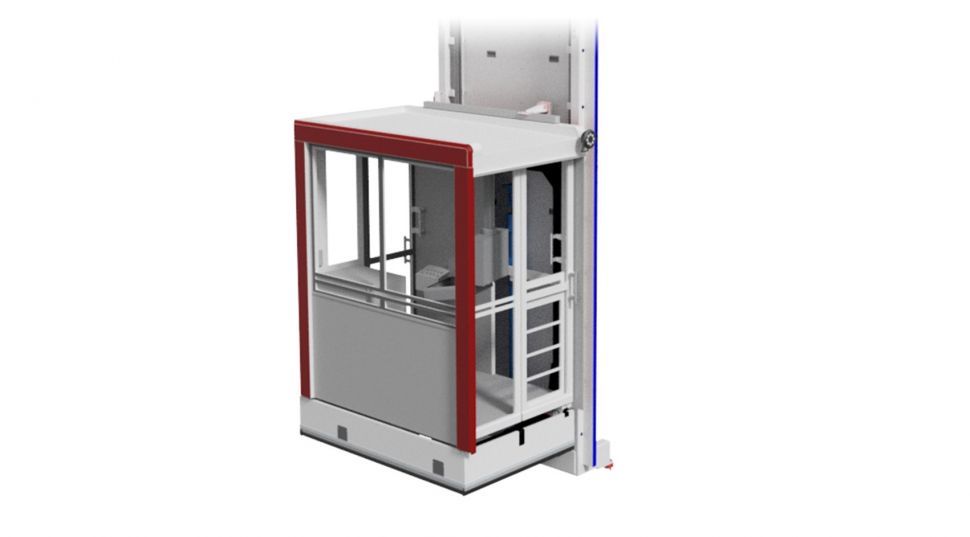

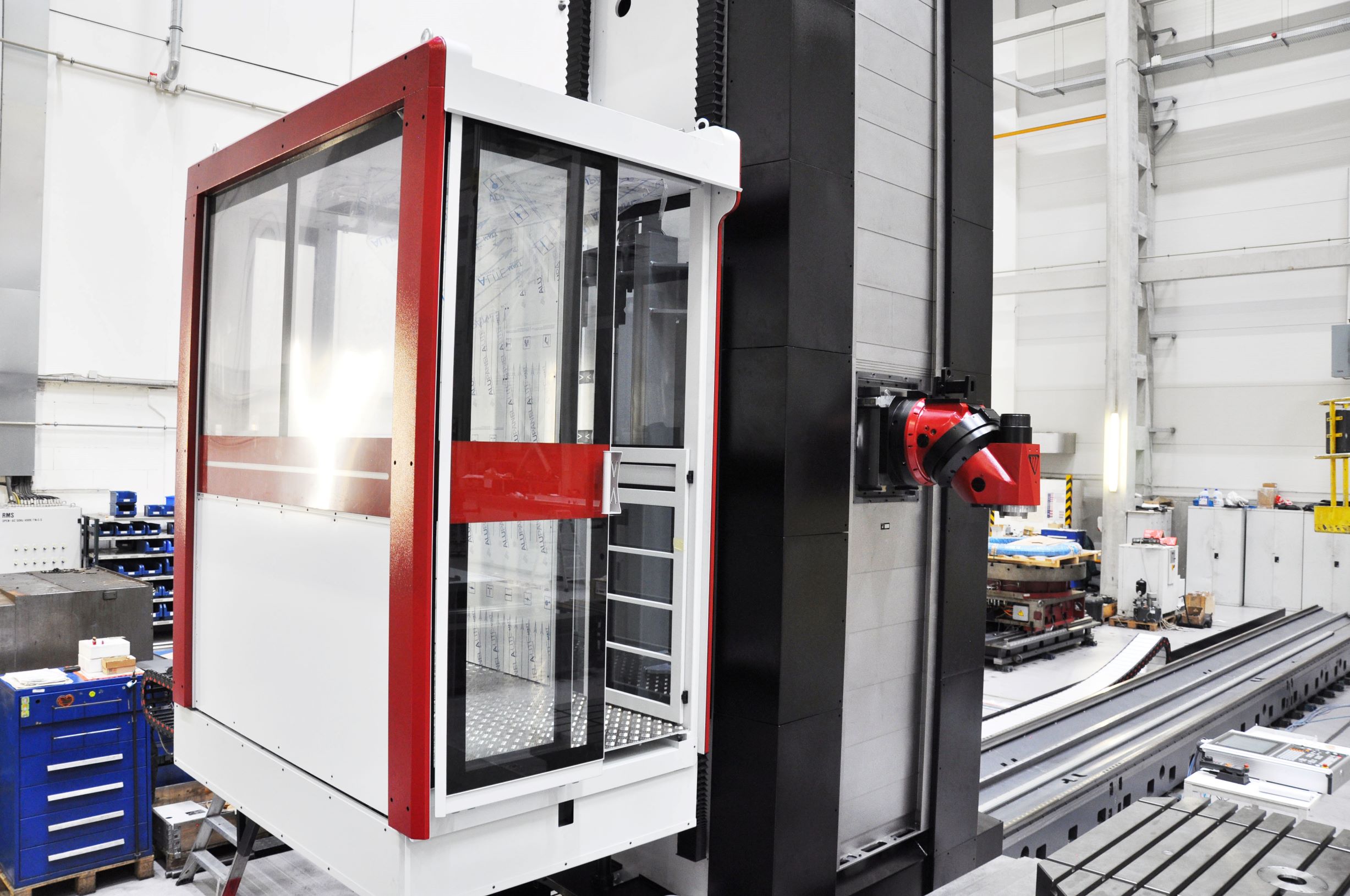

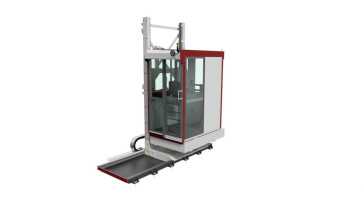

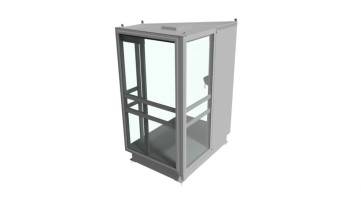

Operator cabins for floor-type machines WF and WRF, with vertical and horizontal travel as a standard. Length of vertical travel depends on Y axis.
|
Axis Y
|
Vertical Cabin Travel V
|
Horizontal Cabin Travel H
|
|||
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
|
98
|
2 500
|
55
|
1 400
|
32
|
800
|
|
118
|
3 000
|
74
|
1 900
|
32
|
800
|
|
138
|
3 500
|
95
|
2 400
|
32
|
800
|
|
158
|
4 000
|
110
|
2 800
|
32
|
800
|
|
177
|
4 500
|
130
|
3 300
|
32
|
800
|
|
197
|
5 000
|
150
|
3 800
|
32
|
800
|
|
236
|
6 000
|
185
|
4 700
|
32
|
800
|
