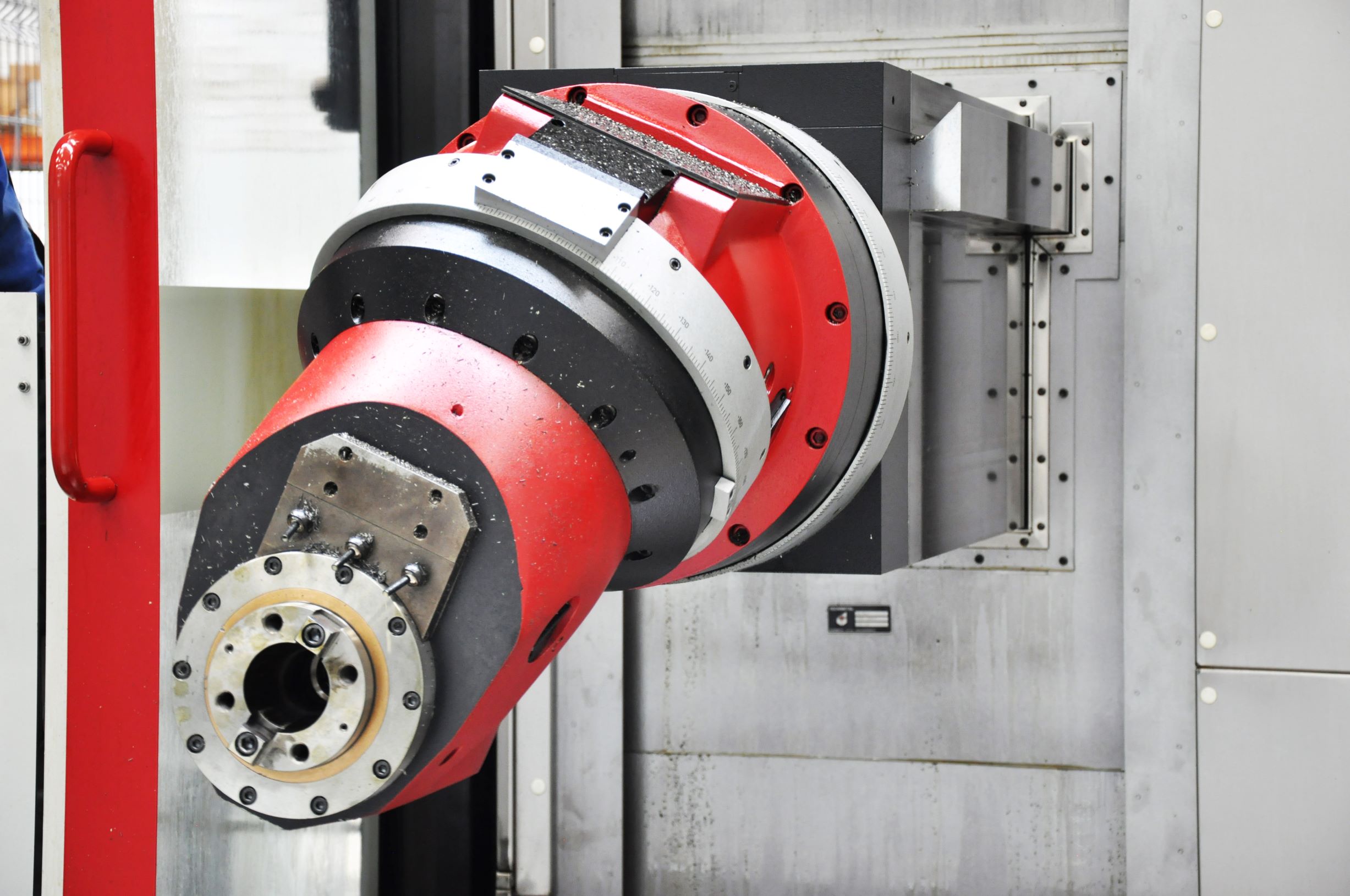

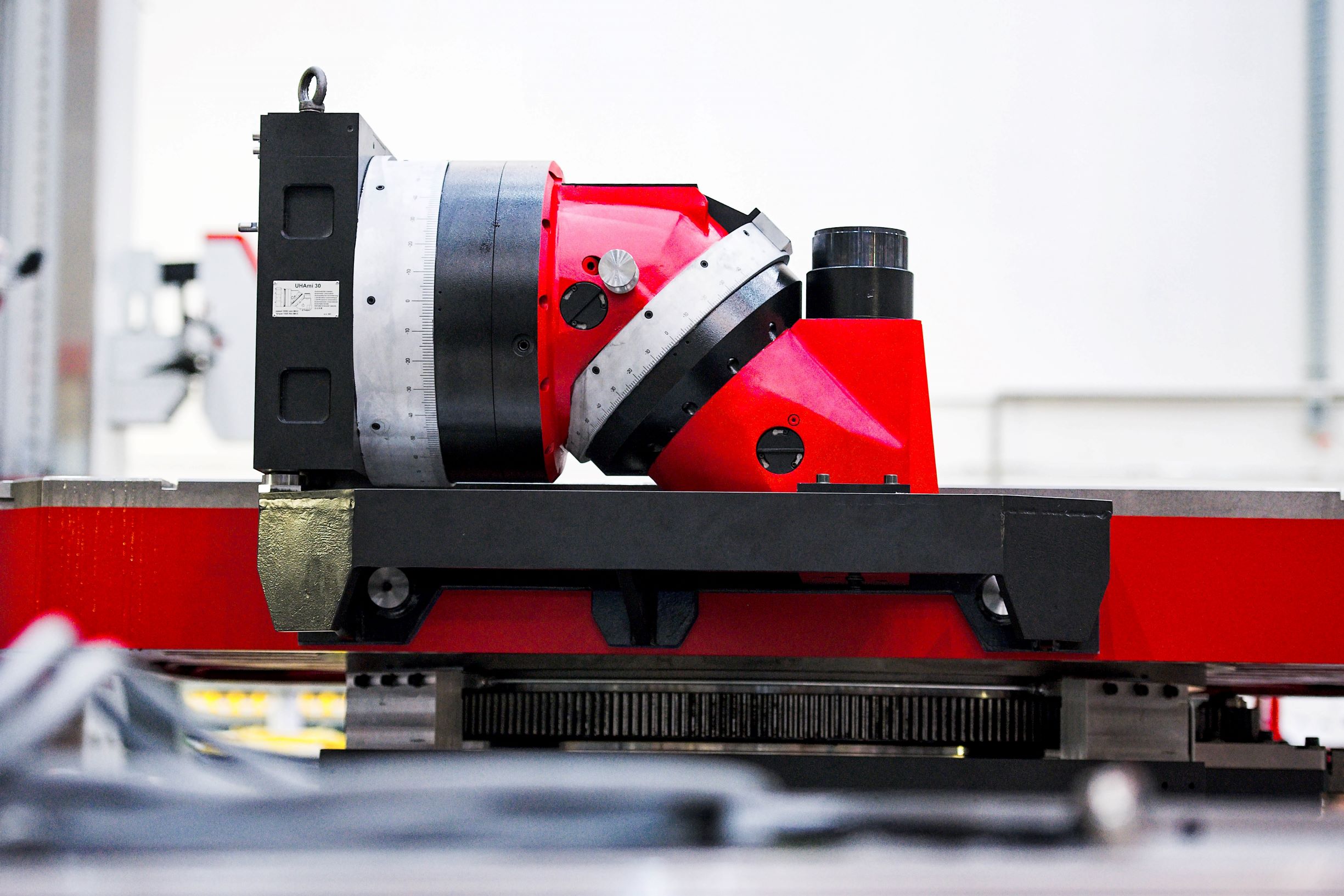

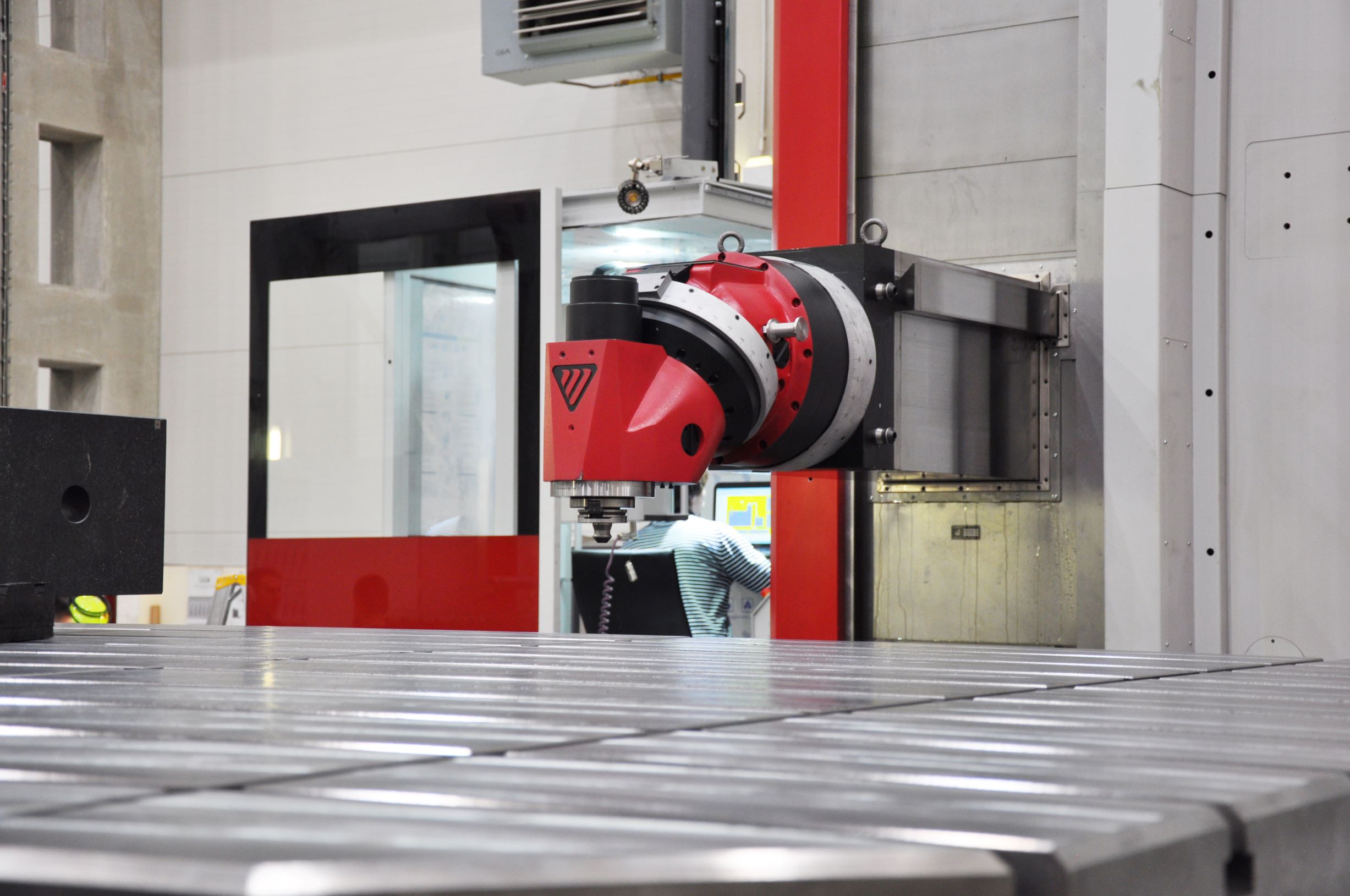

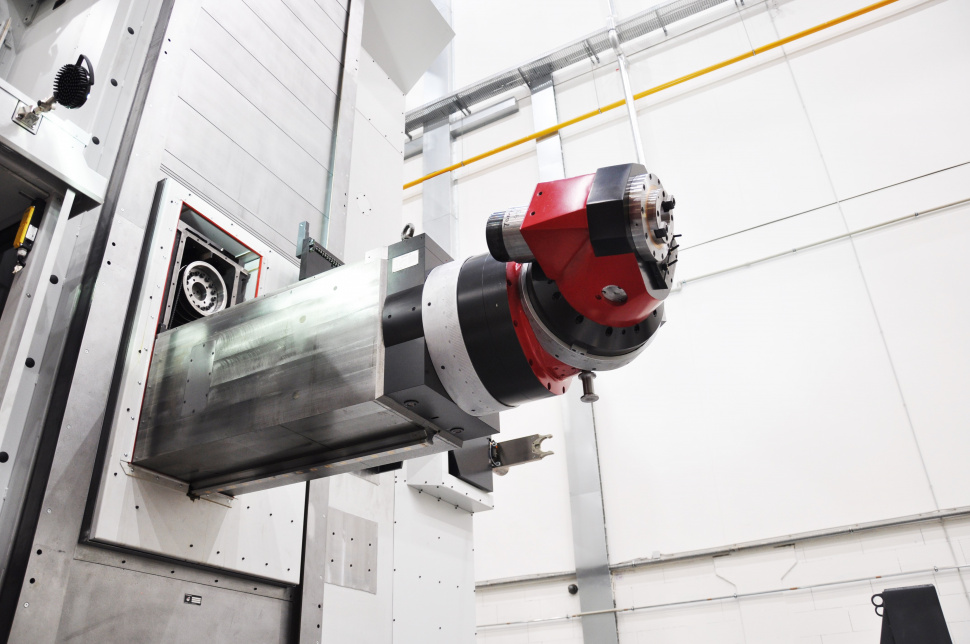

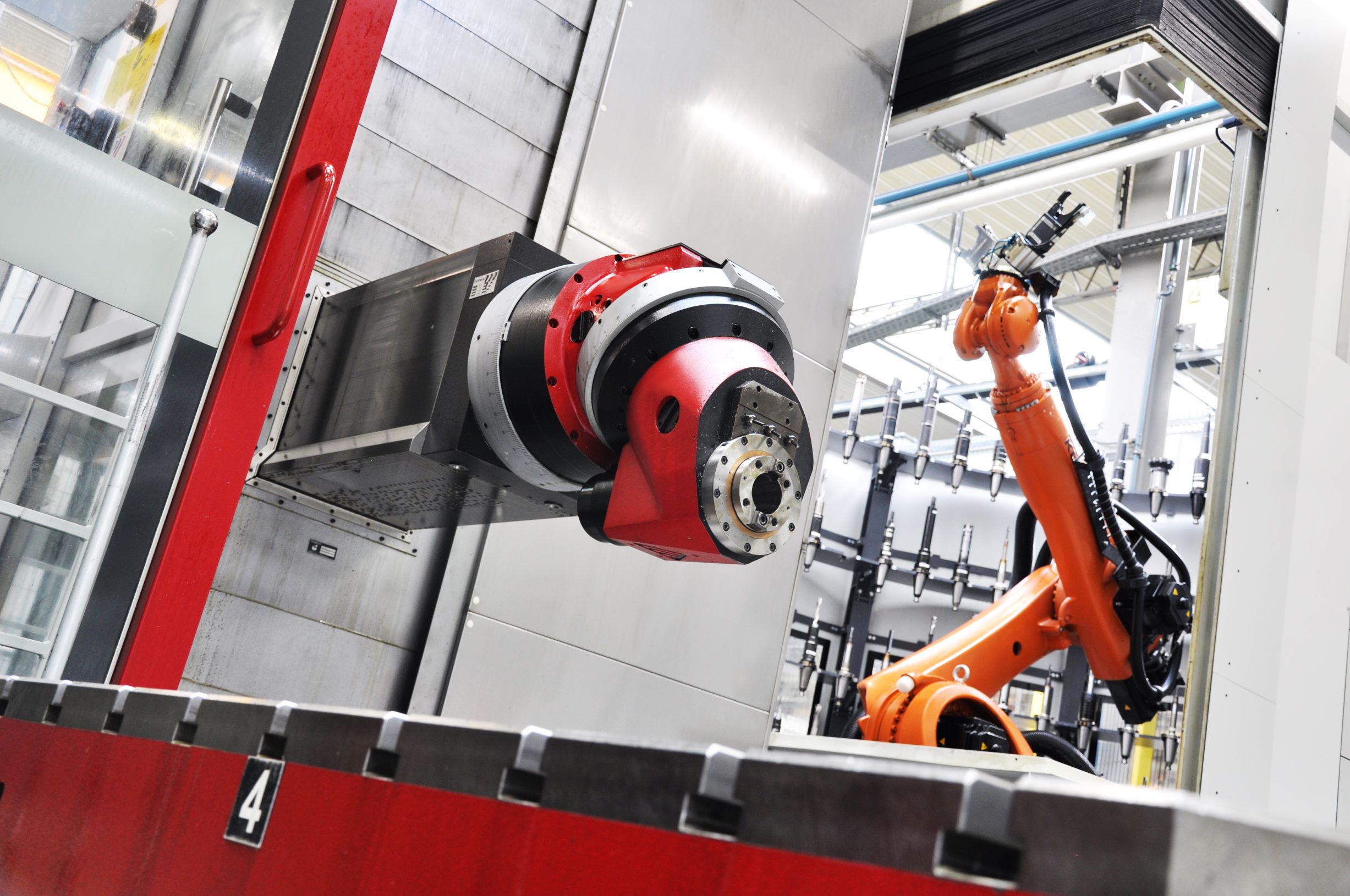

UHAmi (0,001°) Universal Automatic Micro-Indexing Milling Head
Fully automatic attachment to the headstock, tool clamping, positioning, lubrication.
|
|
units |
UHAmi
|
| Revolutions |
rpm
|
10 - 3 000 (opt. 4 000)
|
| Max. Torque |
Nm
|
1 600
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
| Clamping Force of Tool |
kN
|
20±15%
|
| Stall Torque in Axis A |
Nm
|
3 800
|
| Stall Torque in Axis C |
Nm
|
6 500
|
| Indexing |
°
|
+/- 180, by 0.001
|
| External Tool Coolant |
|
standard
|
| Coolant Trough Spindle |
|
standard
|
| Lubrication |
|
automatic, grease
|
