We Make America Productive

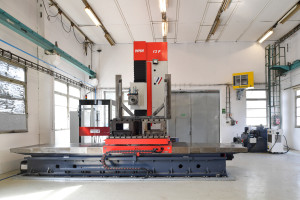

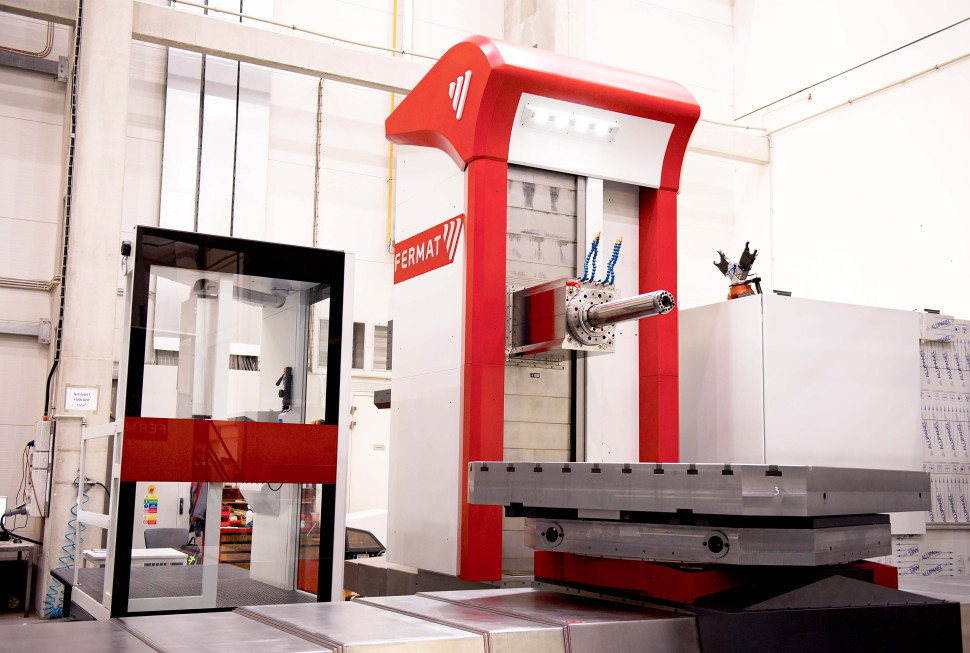

New WFT 15 CNC table-type HBM. Equipped with Spindle Support Sleeve 9.8 in | 250 mm; Operator’s Platform; Chip Conveyor; Coolant Through the Spindle 20 bar and Automatic Tool Changer 40H.
Similar to our WFT 13 table-type HBM, but with a spindle diameter of 5.9 in | 150 mm. Ideal for even larger and heavier workpieces up to 44 093 lbs | 20 tons. Powerful and precise milling, coordinate drilling, boring, and threading.

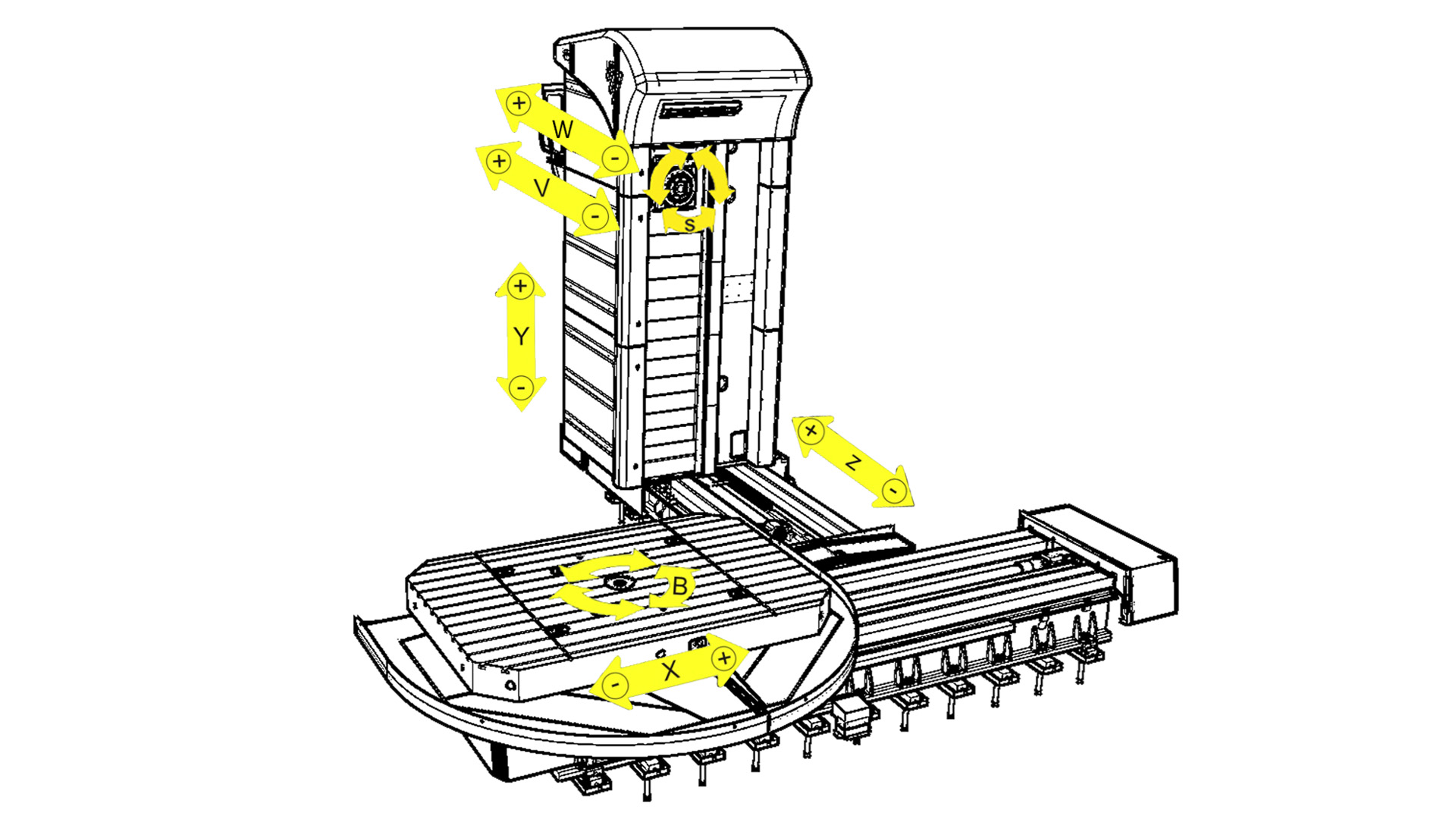

| units | WFT 15 | |
| Table Travel - X-Axis | in | mm | 157.5 / | 4 000 |
| Headstock Travel - Y-Axis | in | mm | 98.4 | 2 500 |
| Column Travel - Z-Axis | in | mm | 59.1 | 1 500 |
| Spindle Travel - W-Axis | in | mm | 31.5 | 800 |
| Spindle Diameter | in | mm | 5.9 | 150 |
| Control System | Fermat Fanuc | |
| Spindle Speed | rpm | 3 000 |
| Main Motor | HP | 50 |
| Build In Power Rotary Table | in | mm | 70.9 x 102.4 | 1 800 x 2 600 |
| Max. Table Load | lbs | ton | 44.000 | 20 |
| New | 2025 | |
| Available | SEPTEMBER 2025 | |
