Horizontal floor-type machines with cross traveling column are designed for machining of workpieces of up to 100 tons / 220462 lbs.

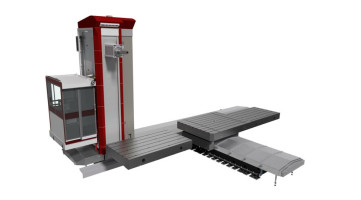

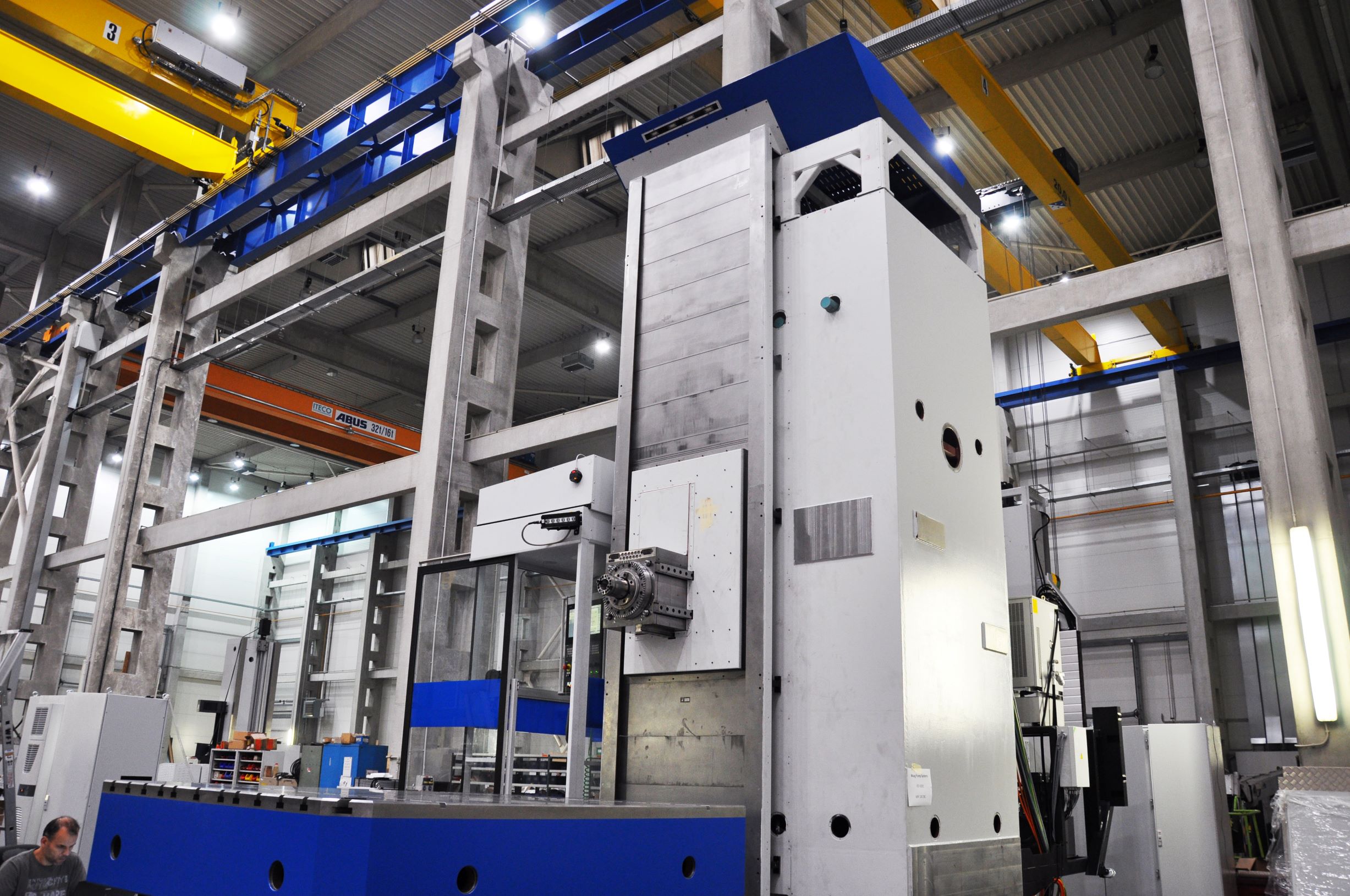

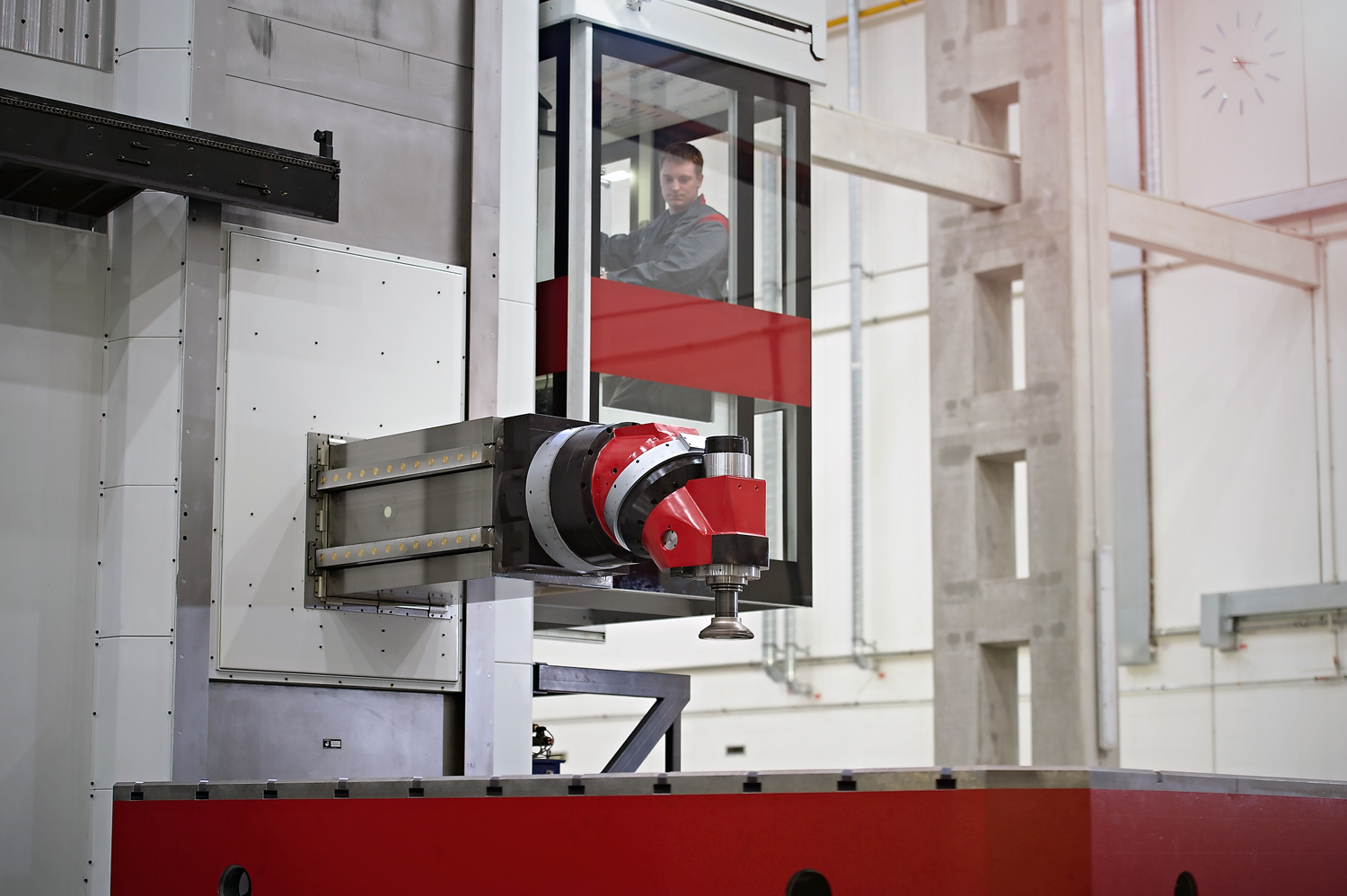

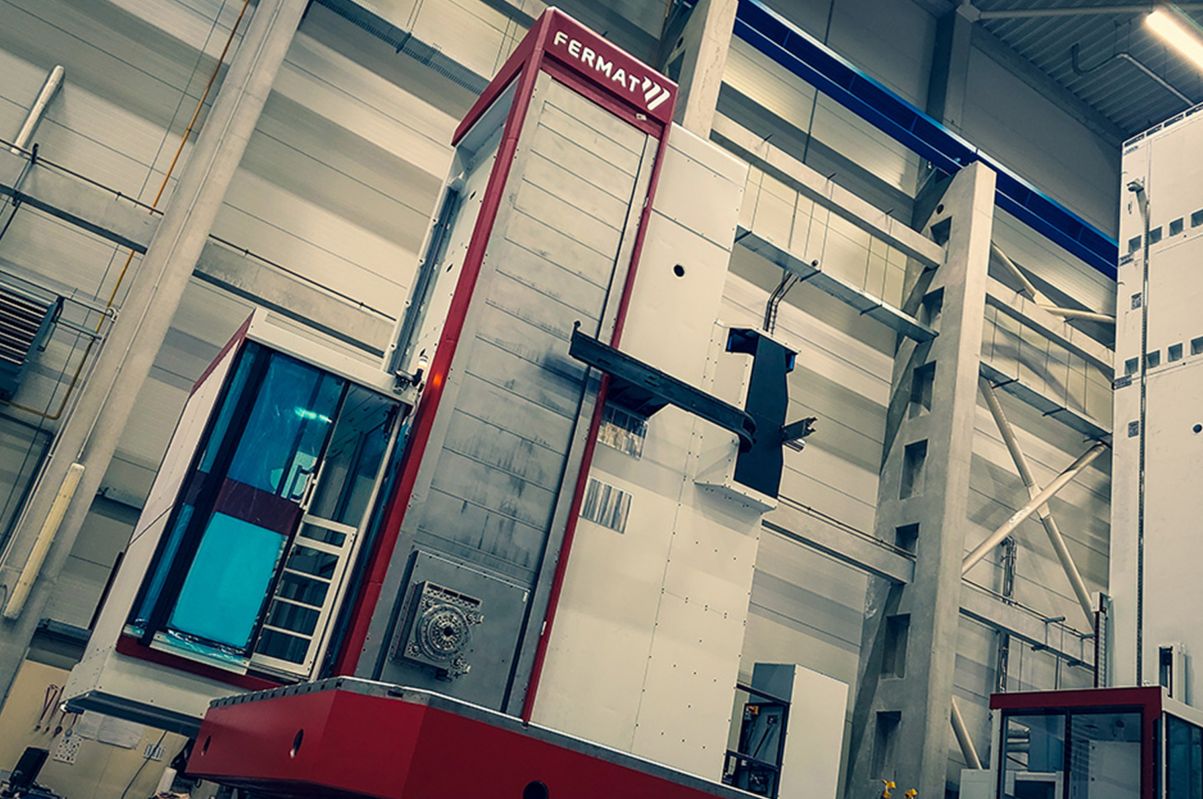

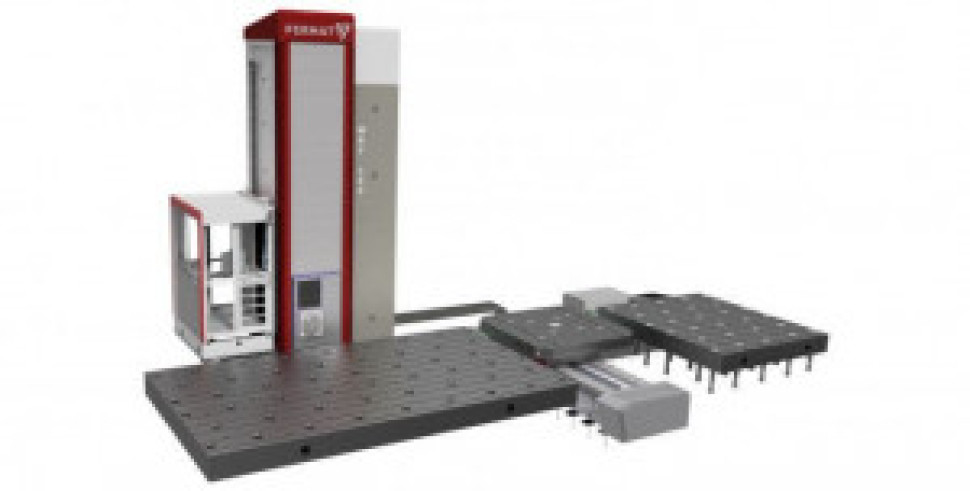

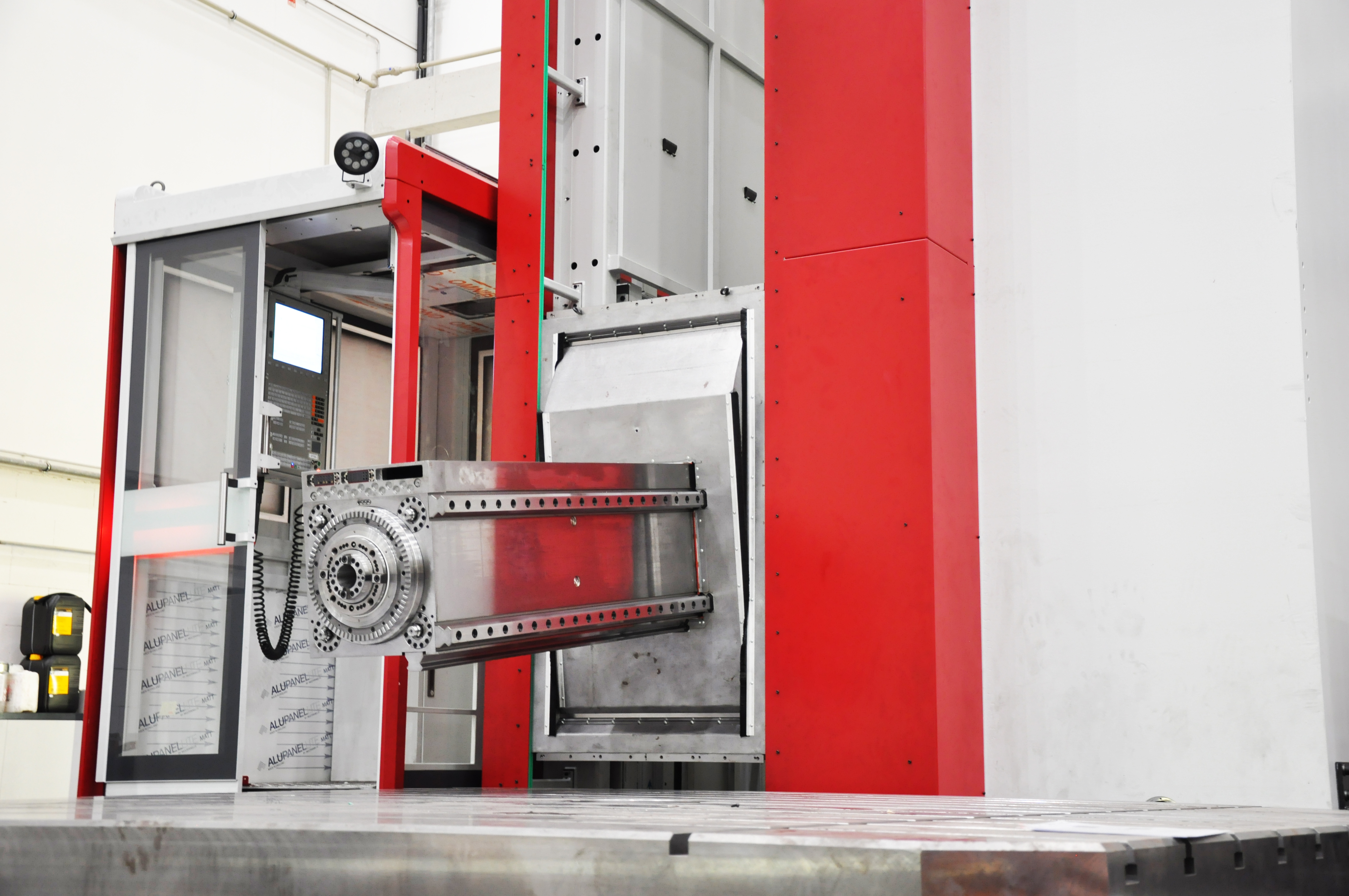

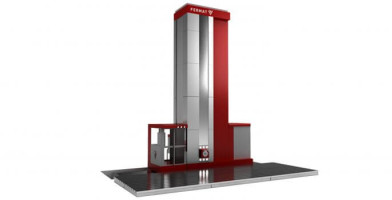

WRF is FERMAT’s large series of floor-type horizontal boring mills, excellent for powerful and precise machining of enormous, heavy workpieces. Spindle diameter of 5.1 in | 130 mm, 5.9 in | 150 mm, 6.3 in | 160 mm or 7.1 in | 180 mm; spindle travel from 31.5 in | 800 mm to 39.3 in | 1 meter. Equipped with operator’s cabin with both horizontal and vertical travel, floor plates and/or rotary tables that can hold up to 220 462 lbs | 100 tons. Optional tilting headstock.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
|
|
units |
WRF 130
|
WRF 150
|
WRF 160 / 180
|
|
|
in |
5.1
|
5.9
|
6.3 / 7.1
|
|
Spindle Diameter |
mm |
130
|
150
|
160 / 180
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
||
| Spindle Speed (max.) | rpm |
3 400 (opt. 4 000)
|
2 800 (opt. 3 500)
|
2 500 (opt. 3 200) / 2 500
|
| Max. Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
54.9 / 82.4; 71 / 104.4
|
77.7 / 115; 99.2 / 146
|
|
| kW |
41/61,5; 53/77,9
|
58/86; 74/109
|
||
|
Max. Torque Heidenhain or SIEMENS CNC (S1/S6) |
Nm |
2 099 / 3 149; 2 713 / 3 989 |
3 281 / 4 988; 3 349 / 4 923
|
|
| Main Power FANUC CNC (S1/S3) | hp |
49.6 / 60.3; 71 / 104.4
|
80 / 100.5
|
|
| kW |
37 / 45; 53 / 62
|
60 / 75
|
||
|
Main Torque FANUC CNC (S1/S3) |
Nm |
2 362 / 2 873; 2 713 / 3 989 |
2 829 / 3 536
|
|

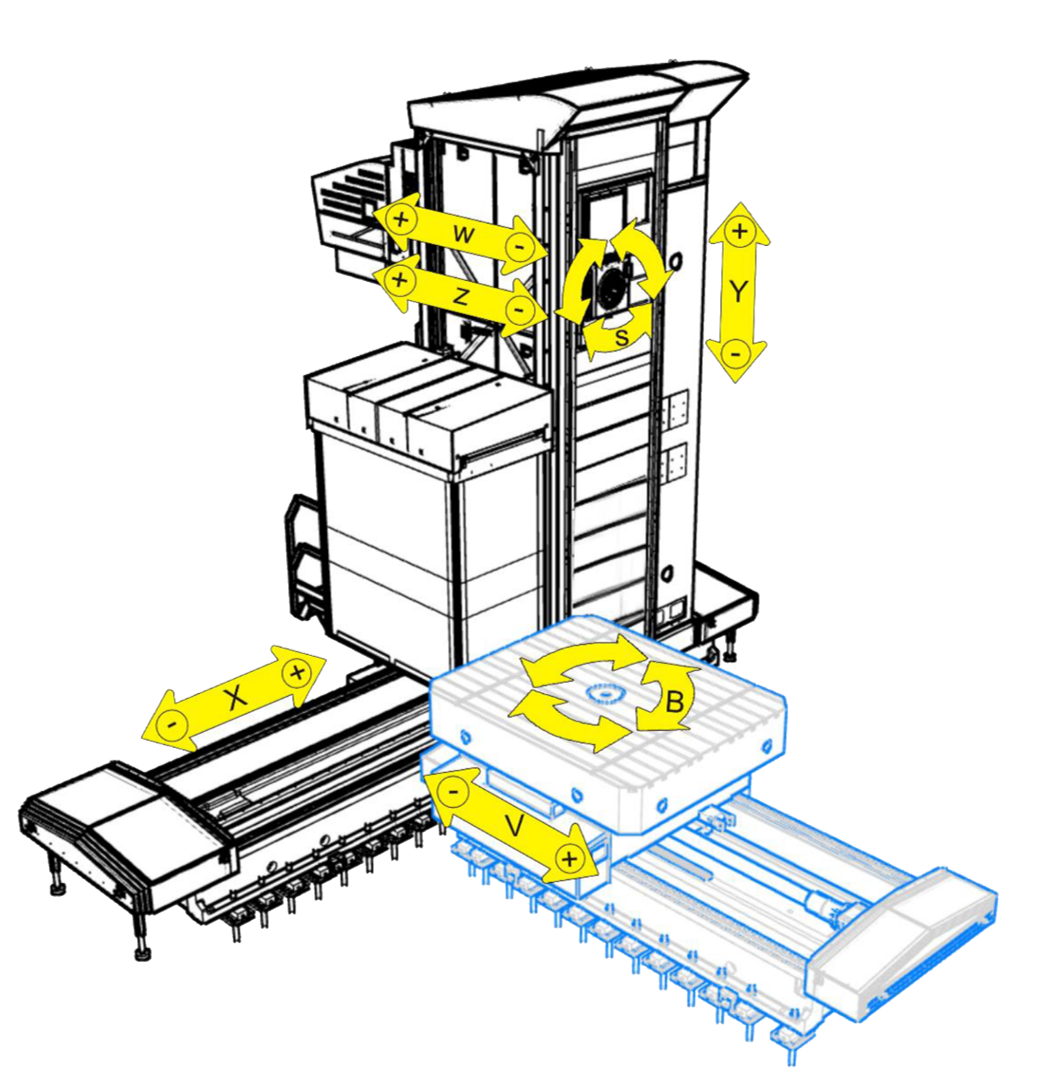

| X-Axis Cross-Travel of Column | in |
157.5 - 1 082.6
|
||
| mm |
4 000 - 27 500
|
|||
| Y-Axis Vertical Travel of Headstock | in |
98.4 / 118.1 / 137.7 / 157.4 / 177.1 / 196.8 / 216.5 / 236.2
|
||
| mm |
2 500 / 3 000 / 3 500 / 4 000 / 4 500 / 5 000 / 5 500 / 6 000
|
|||
| Z-Axis Longitudinal Travel of Ram | in |
39.3 (opt. 47.2)
|
47.2 (opt. 59.1)
|
|
| mm |
1 000 (opt. 1 200)
|
1 200 (opt. 1 500)
|

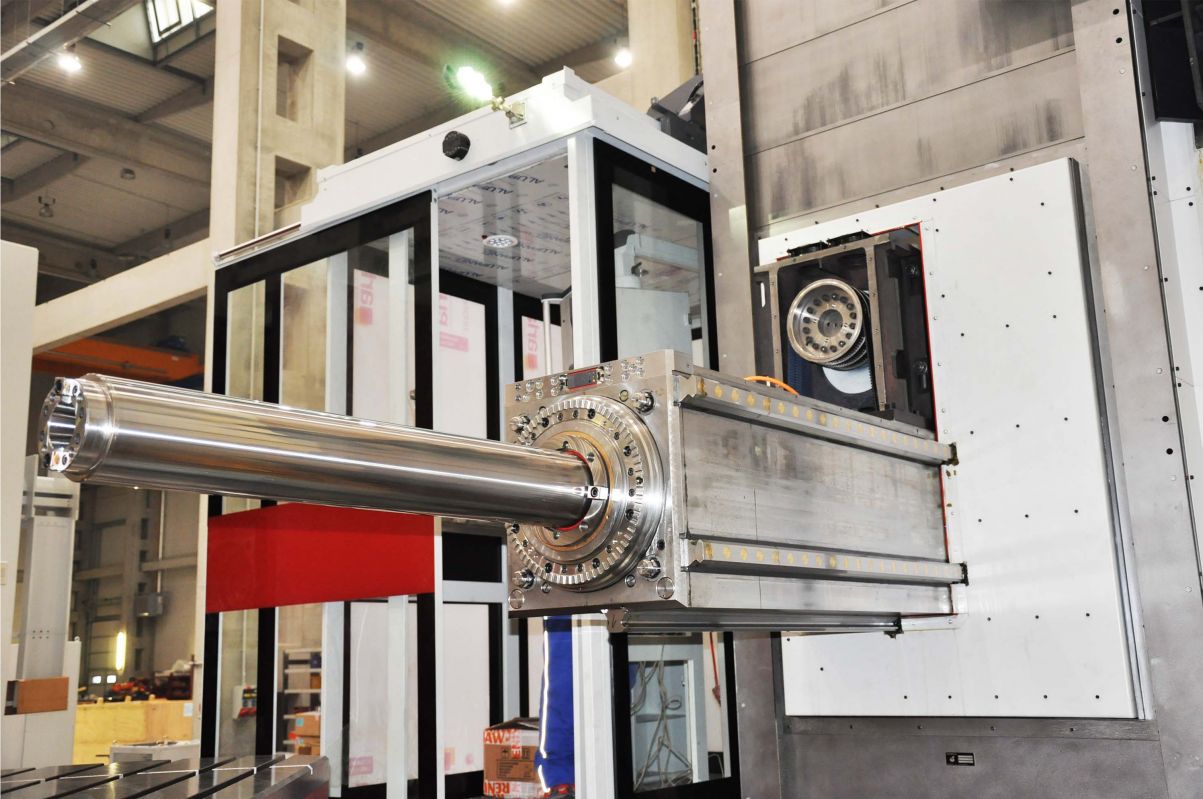

||
| W-Axis Spindle Travel | in |
31.5
|
39.3
|
|
| mm |
800
|
1 000
|
||
| Rapid Feed X, Y | in/min |
787, 591
|
||
| mm/min |
20 000, 15000
|
|||
| Rapid Feed Z, W | in/min |
394, 394
|
394, 394
|
|
| mm/min |
10 000, 10 000
|
10 000, 10 000
|

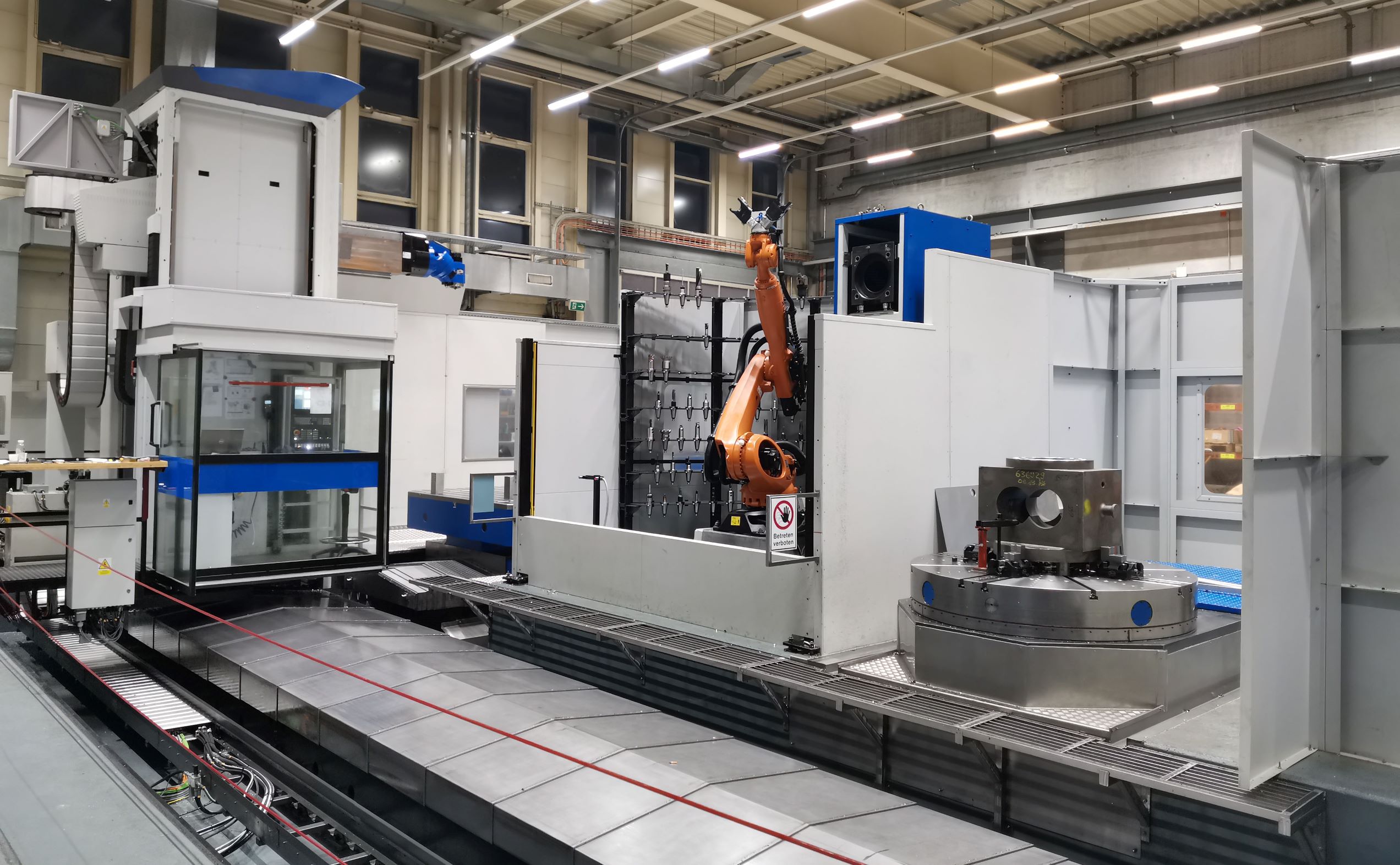

||
| Rotary Table - Optional | ||||
| Max. Table Load | lbs |
44 092 / 55 115 / 88 184 / 110 231 /132 277 / 176 369 / 220 462
|
||
| kg |
20 000 / 25 000 / 40 000 / 50 000 / 60 000 / 80 000 / 100 000 |
|||
