New 2025 TOS WH 10 CNC - Available soon

USED MACHINES

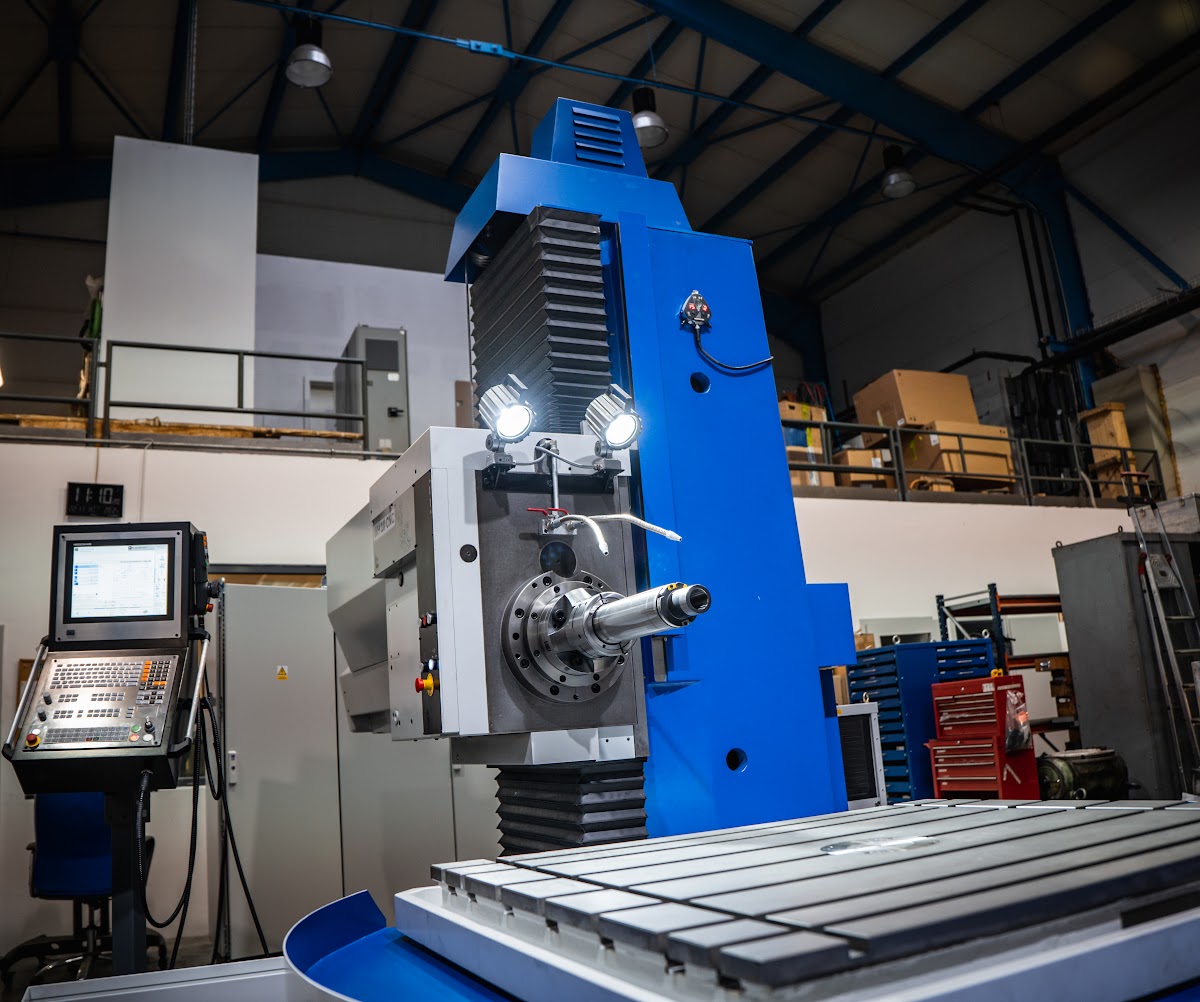

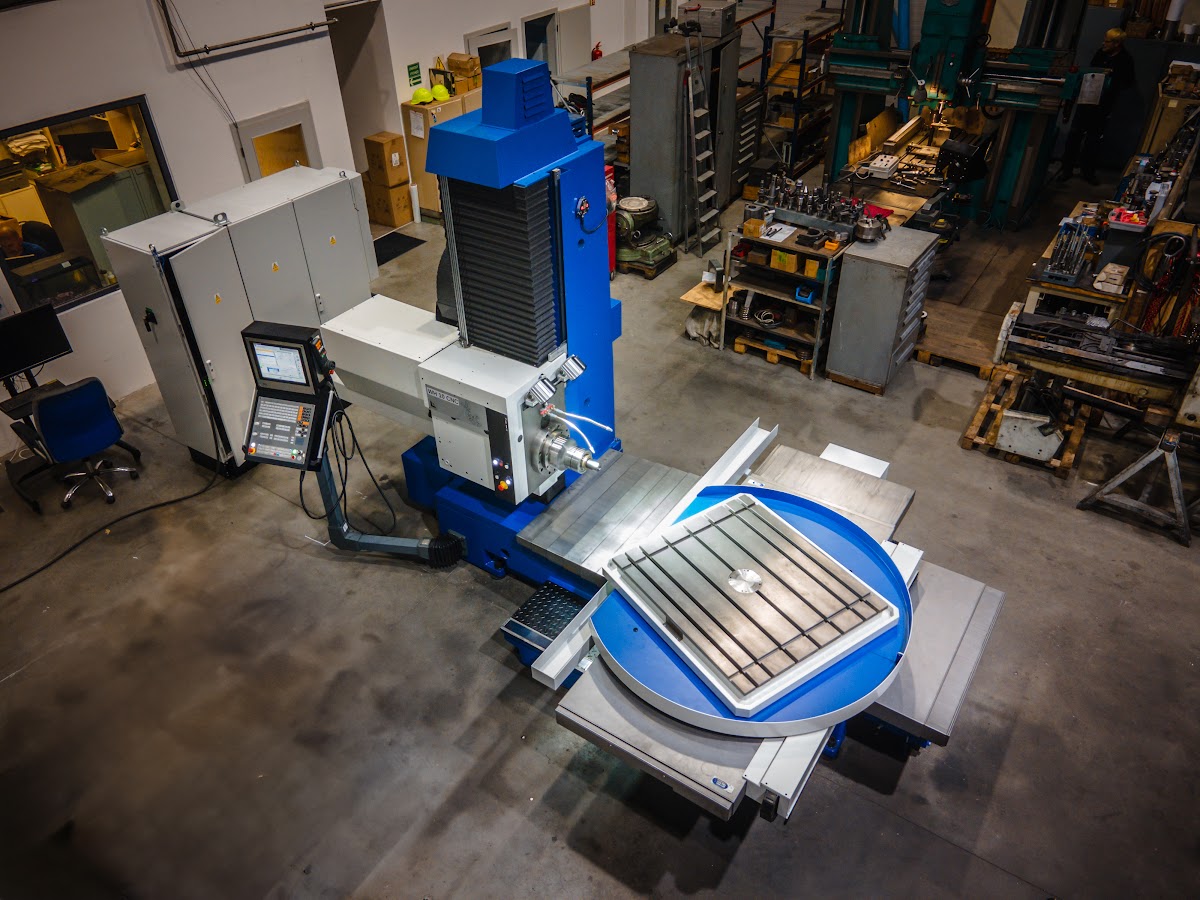

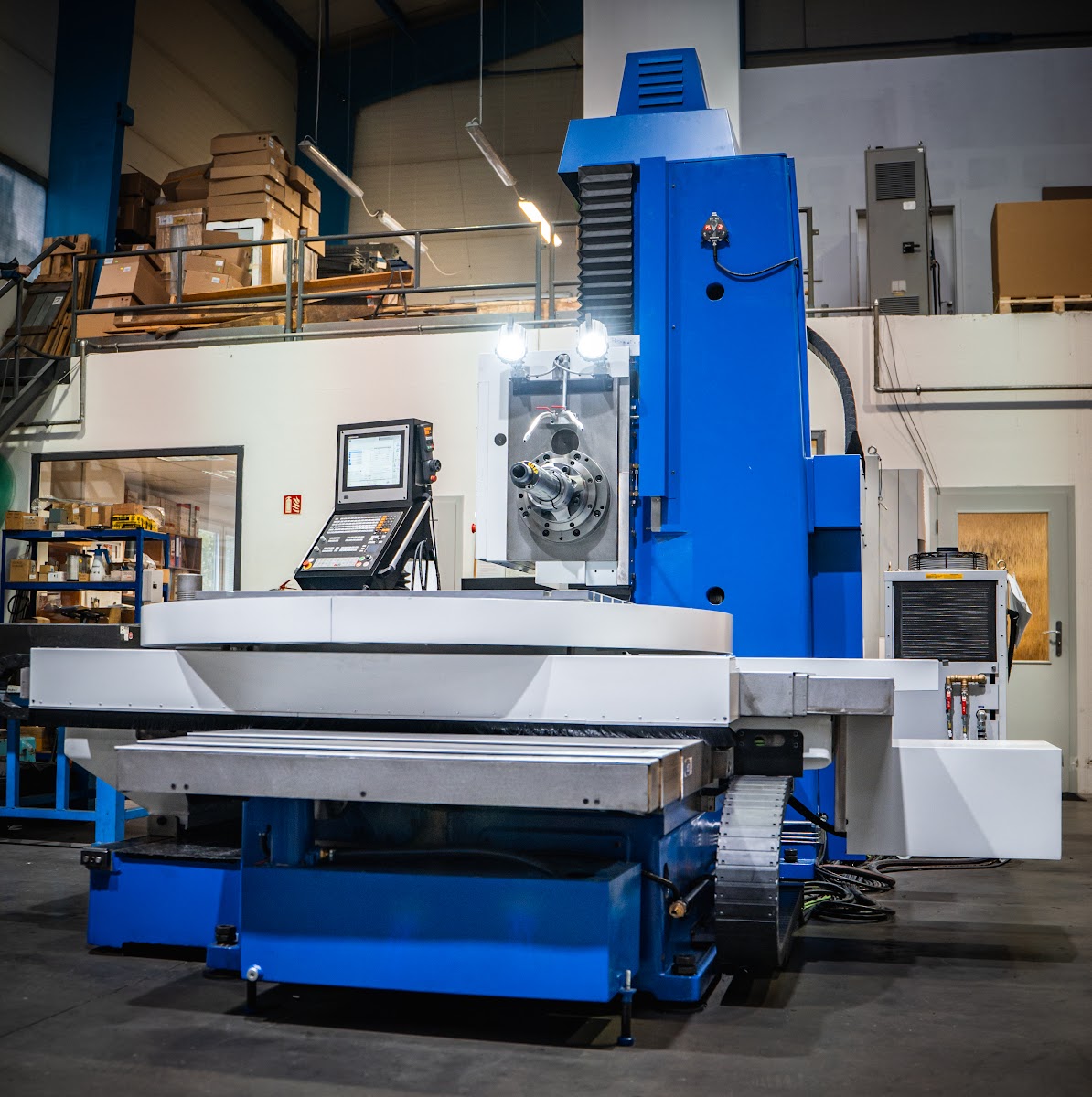

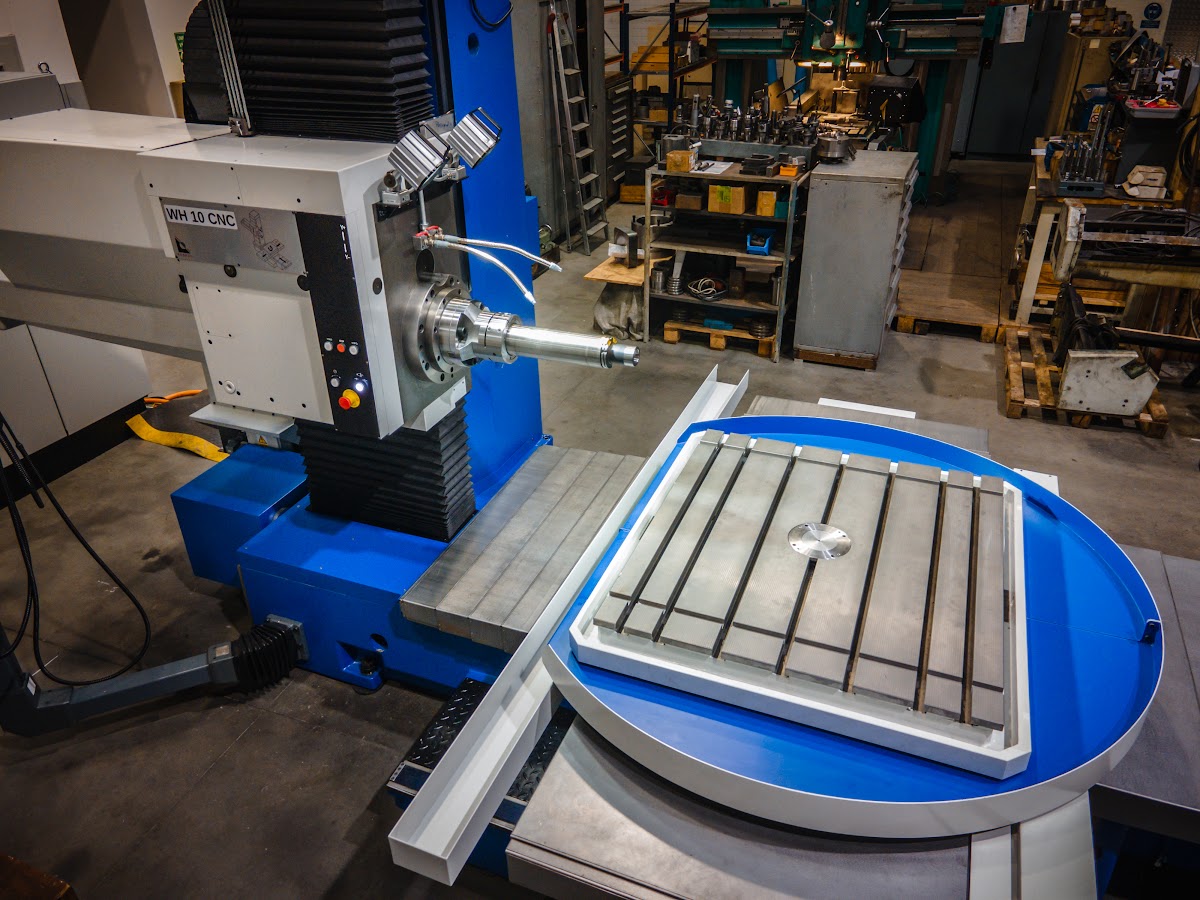

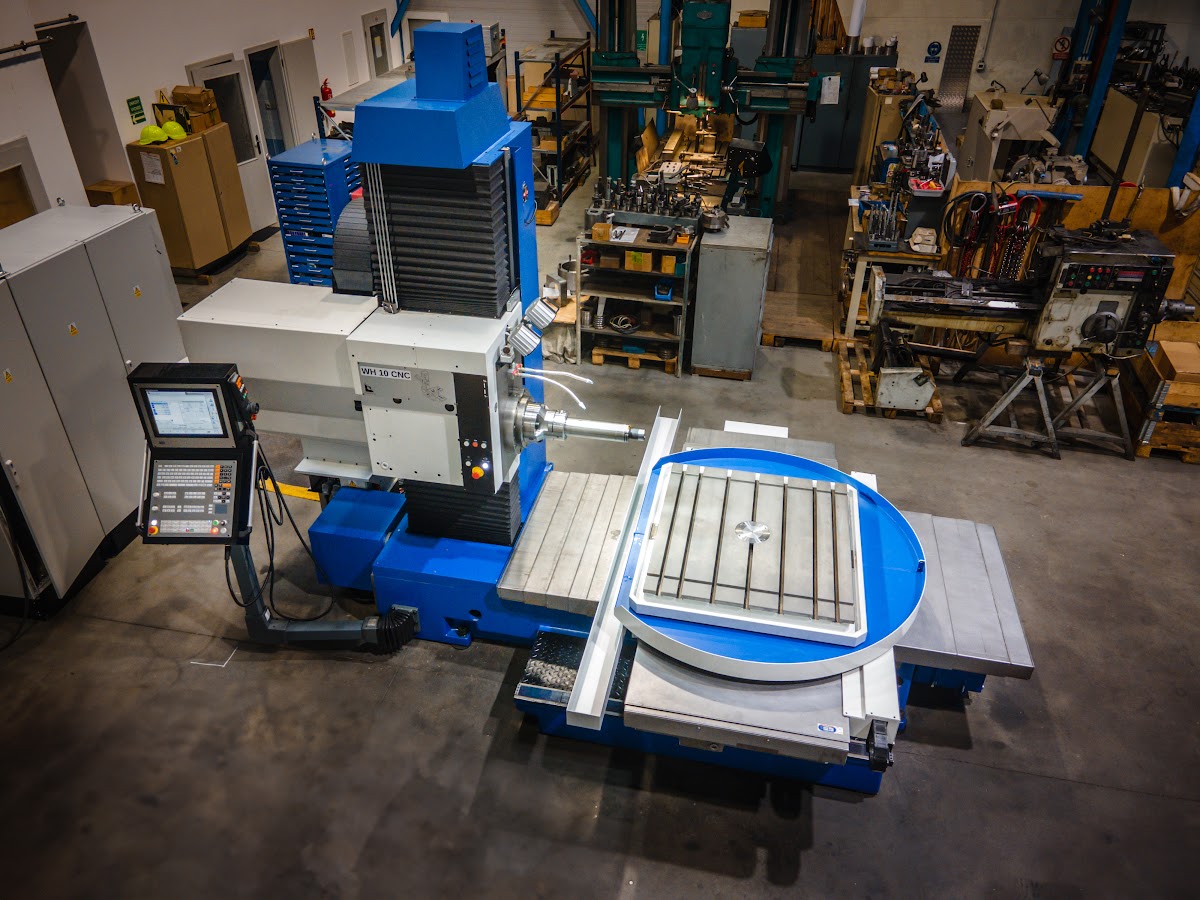

New 2025 TOS WH 10 CNC - Available soon - Machine image

FEATURES:
o Machine fully remanufactured in 2025 by FERMAT

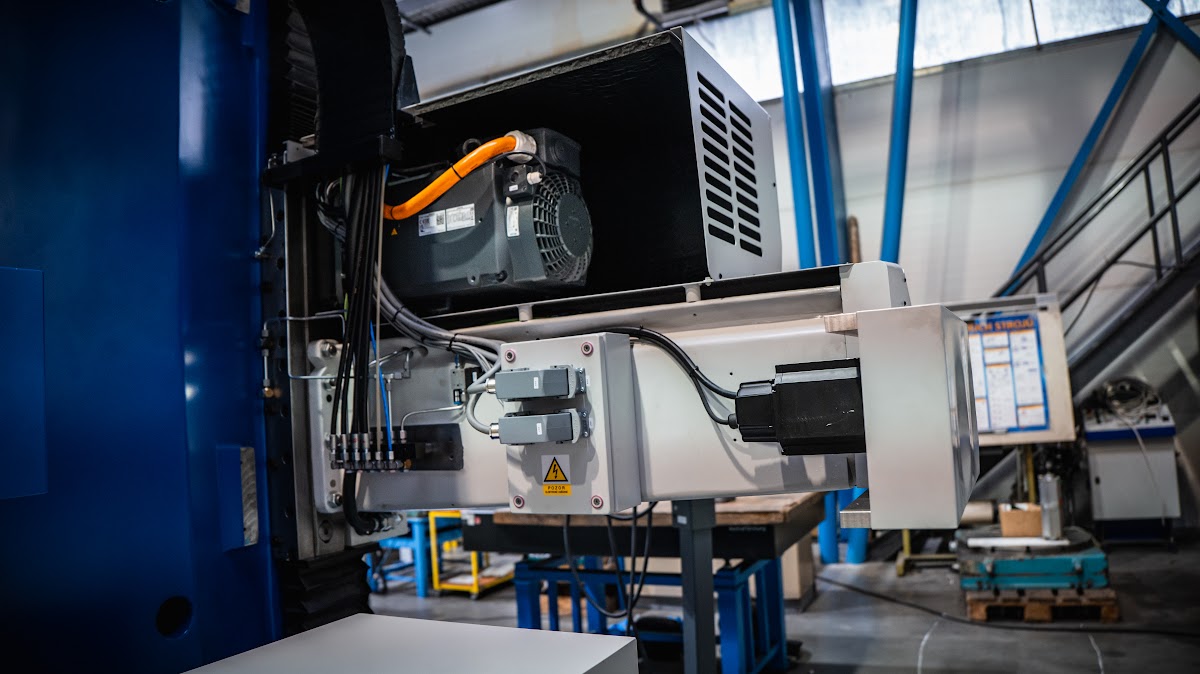

o Machine with modern Motor and Electrics
o CNC Control Heidenhain iTNC 620
o Long life Spindle and Spindle Bearings
o Central Lubrication System for All Axes
o Main Motor Siemens 17.5kW
o Heidenhain drives for all axes
o Documentation
o CE Electrical Specifications


unitsWH 10 CNC
Table Travel - X-Axisin | mm 49.2 | 1 250
Headstock Travel - Y-Axisin | mm40.5 | 1 030
Column Travel - Z-Axisin | mm36.6 | 930
Spindle Travel - W-Axisin | mm23.6 | 600
Spindle Diameterin | mm4| 100
Max. Spindle Speedrpm2500

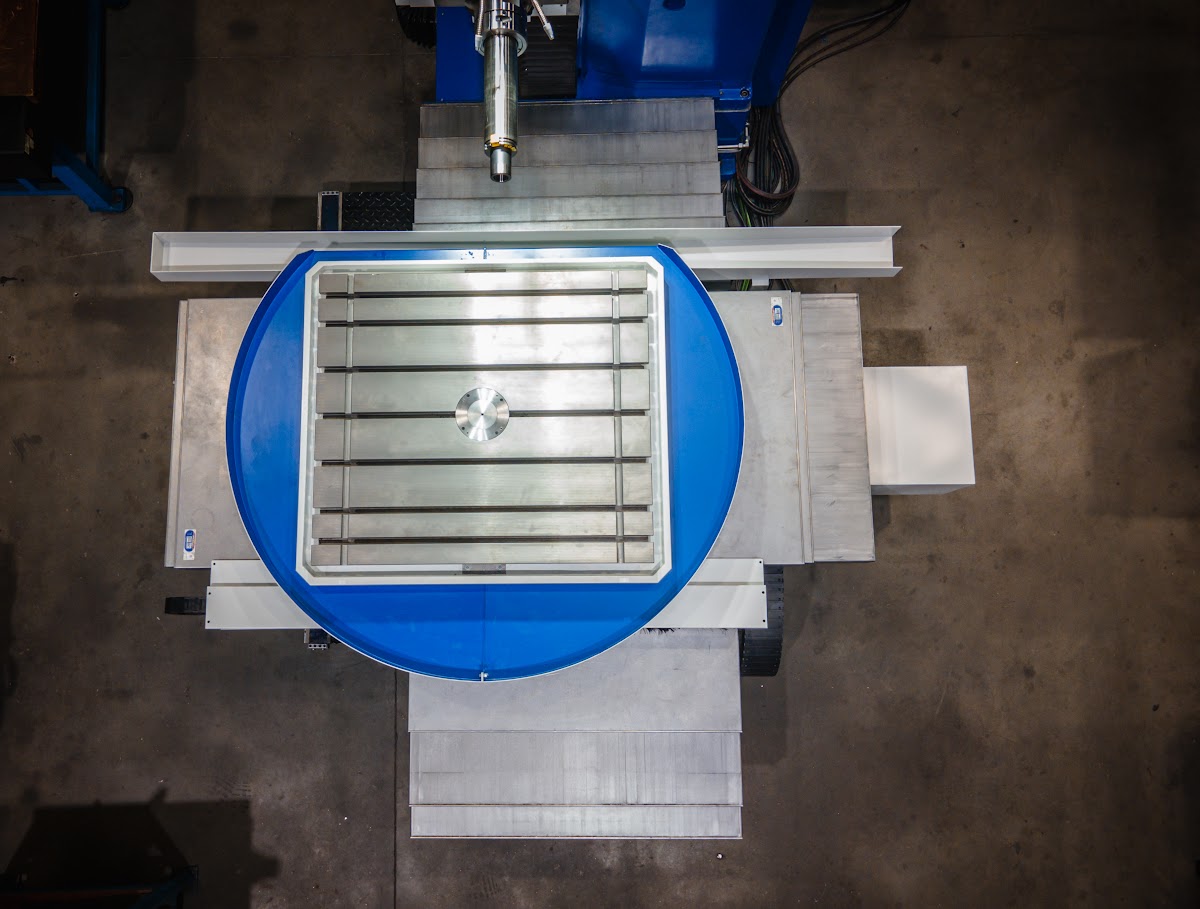

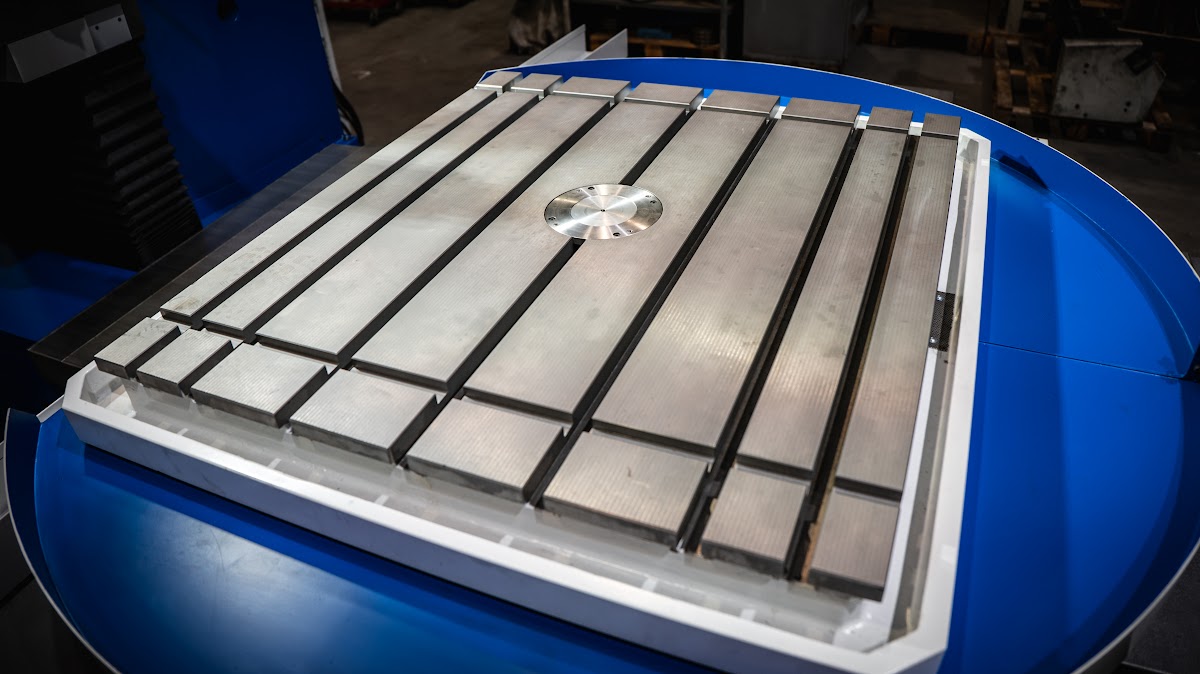

Rotary Tablein | mm39.4 x 44.1 |1 000 x 1 120
Table Loadlbs | ton6 600 | 3 000
Max. Powerhp | kW23.8 | 17.5
Control System

Heidenhain TNC 620

Available
