RETROFIT AND REMANUFACTURE

Lucas Machine Rebuilding

Lucas Precision’s rebuilding programs are specifically designed to return any manufacturer’s horizontal boring mill to its original accuracy or even upgrade it to a higher performance level.

  1. Complete Machine Rebuilding: Renews machine to original performance and efficiency levels.
  2. Alignment Rebuilding: Improves overall machine accuracy.
  3. Unit Rebuilding: Restores specific functional units.



Remanufacturing


This is a cost-effective alternative to purchasing a new machine. Lucas Precision can actually upgrade older boring mills to today’s high tech standards. Lucas Precision’s Remanufacturing Program includes:

  • Complete inspection of all parts & systems
  • Replacement of high-maintenance gearbox with precision ball screws & servomotors.
  • Complete Electrical upgrade with state-of-the-art electronics.
  • Rebuilding or replacement of all remaining parts to increase precision levels.
  • Installation of CNC control retrofit and feedback system.



REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com



Natco Retooling and Refixturing

With extensive knowledge of your Natco Multi-Spindle Drill, Lucas is prepared to “TOOL-UP” your next project. We can do the complete project from design to installation.

Allow our staff to design the proper fixturing for your specific parts that will allow you to achieve maximum productivity.



The fixturing can feature any or all of the following:

  • ROTARY TABLES
  • PART SET UP AND CLAMPING
  • MULTIPLE PARTS OR MULTIPLE OPERATIONS
  • PROPER JOINT AND SHAFT SELECTION
  • UPPER JOINTS AND LOWER JOINTS, SHAFTS, UNIVERSALS
  • DESIGN AND BUILD OF SLIP PLATES AND DRILL PLATES
  • ADJUSTABLE ARMS

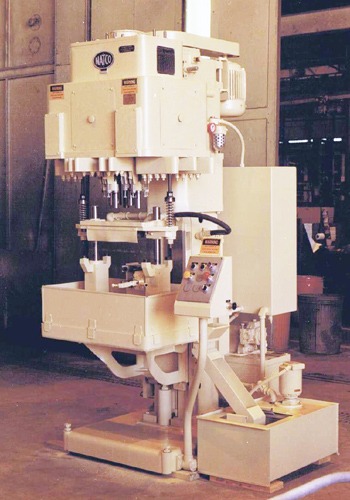

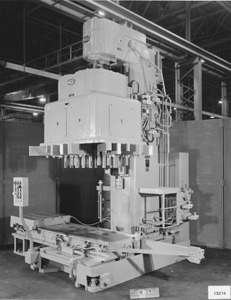

NATCO - shown with Slip and
Drill Plate

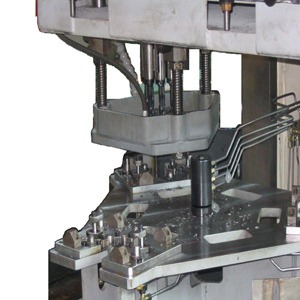

NATCO - shown with adjustable arms



REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com

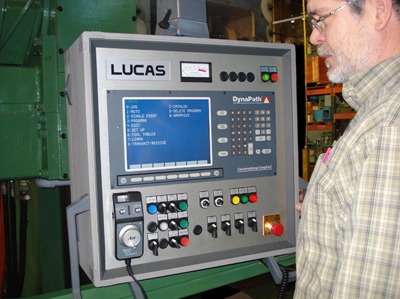

CNC Retrofits

Lucas Precision offers advanced CNC retrofit systems specifically developed to increase the productivity and efficiency of existing Boring Mills.

Interface software is custom-designed by Lucas Precision engineers to optimize your specific machine’s performance capability and efficiency. A wide selection of systems from major manufacturers lets you select the perfect upgrade for your particular unit and budget.

  • Expert & Professional On-Site Installation
  • Custom-Designed Interface Software
  • Numerous additional control standard features
  • Accurate and complete documentation
  • Warranty
  • New feedback all axis



REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com

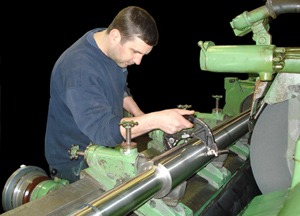

Spindle Rebuild for All Manufacturers

Our capabilities allow you to utilize “good iron” that may only need some TLC.

Lucas has the expertise to accurately restore your spindle and sleeve to meet or exceed our own OEM specifications. Lucas Precision manufactures replaceable spindle taper sockets for any manufacturer’s large spindle bar. This restoration program salvages this expensive unit of your machine tool and simplifies future maintenance requirements. You can count on the professionals at Lucas Precision to restore the close tolerances to any large spindle bar and sleeve.

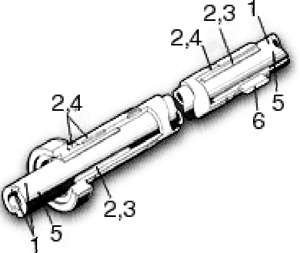

Exclusive Lucas 6-Point Restoration Program:

  • Regrinding spindle OD and taper
  • Replace sleeve bushings and bearings
  • Regrinding of sleeve bushings to fit OD of spindle
  • Chroming and regrinding all bearing diameters on OD of sleeve
  • Refit spindle in sleeve
  • Fit spindle key



Lucas Precision also offers in-place spindle taper grinding as part of our field service program. Our expert service technicians bring the equipment directly to your facility to help you reduce costs while saving time and labor.

We have modified spindles in various and unusual ways to accommodate rebuilt or remanufactured machines.



REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com



Natco/Carlton Rebuilds

We not only rebuild Lucas Boring Mills we are also the OEM for Natco Multi-Spindle Drills and Carlton Radial Arm Drills. Lucas Precision has been rebuilding Natco Carlton machine tools for a long time and ONLY Lucas Precision can perform a true ‘OEM-quality’ rebuild of your Natco or Carlton machine. We alone have the original engineering data and the original electrical, mechanical and structural drawings for your machine.

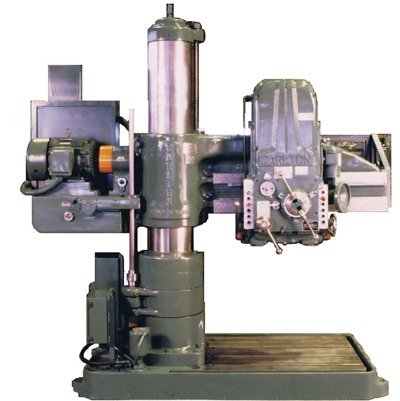

Carlton Radial Drill Rebuild

Scope Of Work:

  • Completely disassemble the drill, only the major castings will be saved.
  • Regrind the outer column.
  • Replace arm barrel bushings to fit reground column.
  • Re-machine and scrape the arm for original OEM tolerances.
  • Re-machine the machine base to clean up.
  • Install Appropriate Safety Guards.
  • Replace all motors and pumps.
  • Replace all clamps.
  • Replace all shafts, bearings, gears, o-rings and wipers.
  • Replace elevating screw and nuts.
  • Add upgraded arm lubrication system.
  • Install a new spindle and sleeve.
  • Replace all electrical components with new cabinet and pendant station.
  • The newly remanufactured drill will meet all NEC and NFPA codes.
  • Clean and paint
  • Limited Warranty





Natco Multi-Spindle Drill Rebuild

Scope Of Work:

  • Completely disassemble and inspect all parts.
  • Rebuild hydraulic cylinder.
  • Rebuild complete hydraulic system.
  • Rebuild head and neck assemblies.
  • Replace all bearings, seals and o-rings.
  • Replace electrical cabinet, hardware and wiring to current safety standards.
  • Install new PLC control (option) at additional cost.
  • Rework all gibs.
  • Upgrade lubrication system.
  • Replace gears, upper joints where required.
  • Cycle test machine with new fixture and tooling if ordered.
  • Clean and paint
  • Install new guarding if re-fixtured



REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com


Manual Machine Upgrades

RELAY CONVERSION PACKAGES

The LM7 Electrical Relay Conversion Package was originally developed to allow the removal of obsolete Numerical Control systems on machines that are not good candidates for CNC retrofit. This package allows the machine to operate in the same manner as the ‘power shift’ manual machines of the same period of construction. In later years, we expanded the product line to allow for the replacement and elimination of worn out and malfunctioning relays on Lucas models that were already manual machines. The proprietary software can greatly extend your machine’s service life while reducing downtime.

Don’t risk down time or damage to your customers parts or - most importantly - the safety of your machinist when you can quickly and efficiently get your control up to date with modern pre-assembled electrical components.



  • Replaces 30-50 Obsolete or Worn Relays
  • Replaces All Makes of Electrical Relays
  • Diagnostic LEDs Speed Troubleshooting
  • Custom-Designed Software for your Specific Machine
  • In-stock for Immediate Shipment



The LM-7 conversion package is often installed simultaneously with a replacement Pendant.

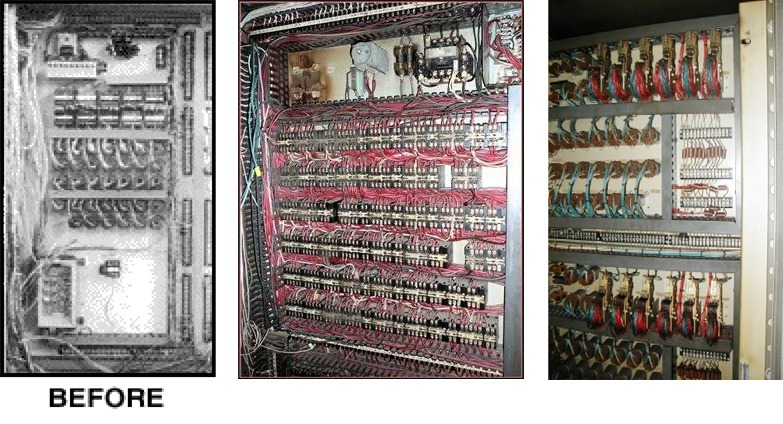

An obsolete Numerical Control OR Manual relay panel from the early 1960’s looks like this:

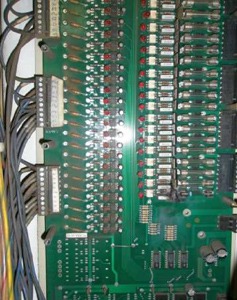

After LM-7 conversion, any of the older panels will look more like this:



As you can see, most of the control system has been replaced with modern sold-state technology that is far less prone to wear and should, therefore, result in much less downtime.

In addition, each LM-7 is equipped with ‘Trouble-Shooting’ lights to assist with problem diagnosis and fused outputs to prevent damage to the LM-7 in the event of ‘shorts’ on the machine tool.


Replacement Pendants

LUCAS - NEW PENDANT CONTROL STATIONS

Due to the complete unavailability of the old style ‘turn/ tilt’ switches used extensively in Lucas 41B, 42B and other models and for which there are no commercial substitutes, Lucas Precision has engineered a complete replacement Operator Pendant with a 30-foot pre-attached cable that completely removes the need for these obsolete switches.

The pre-attached cable allows ease of installation and simple connection to your relay panel resulting in greatly lowered costs of maintenance as well as increased ‘uptime’ for your machine. If your machine requires more than a 30-foot cable, please let us know at time of order. New pendants are often installed simultaneously with a relay conversion package.

Lucas Replacement Operator Pendants are equipped with the same ‘pull-on’ ‘slap off’ operation of the earlier pendant designs so that - in hurried or panic situations - your operator will be able to rapidly stop the machine with the same ‘time-tested’ motions to which he has been accustomed. In addition, since we have created the new pendants to use modern, commercial switches as much as possible in our new design, replacement of individual switches is more rapid and less costly than the replacement of the old ‘turn-tilt’ switches.

We have available several different designs to replace the older types of pendants. To assist you in determining which Replacement pendant will function with your machine, we offer the following:



All three of these OBSOLETE Operator Pendants may be replaced by this new Design REPLACEMENT Operator Pendant.

OBSOLETE
41B ‘2-Station’ Pendant 41B ‘2-Station’ Pendant
Later-Design’
REPLACEMENT











OBSOLETE
42B ‘Slim-Style’ Pendant
REPLACEMENT
‘3-Station’_or_’4-Station with Range Switch






OBSOLETE
41B ‘2-Station’ Pendant 41B ‘2-Station’ Pendant
Original-Design
REPLACEMENT





REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com

Machine Attachment Rebuild

SPINDLE HEAD

  • Replace all worn parts as necessary
  • Gears, shafts, clutches
  • Replace all bearings and seals
  • Rebuild the spindle and sleeve
  • Rebuild tool ejection system
  • Rebuild motor


PILLOW BLOCKS
GEAR BOXES
TRANSMISSIONS

ROTARY TABLES

  • Restore to OEM tolerance
  • Hand scraping
  • Install DIGITAL READ OUT on rotary axis
  • Additional fixed shot pin positions to your specific degree requirements

COMBINATION BORING AND FACING HEADS PRECISION FEED OUT (CONTOURING) HEADS

  • Restore to OEM tolerance
  • Hand scraping
  • Replace all necessary components

REPAIR PARTS DEPARTMENT HOURS:
Monday - Friday: 7:30 am - 4:30 pm EST
Phone: 216.451.5588
Fax: 216.451.5174
parts@lucasprecision.com


European Machine Rebuilding

Pressl, member of Fermat Group

Rebuilding, retrofitting and servicing of European machine tools.

Specializing in modernization and general repair of horizontal boring machines, lathes, carousels. Upgrading of machine specifications including spindle speed increases up to 2500 RPM, high pressure cooling, telescopic covers of the X and Y axis, safety cab, etc.

  • Installation of Siemens, Heidenhain, Fanuc, Mefi, etc. CNC Systems.
  • Accessories such as rotary table, milling heads, chip conveyor, ATC etc.
  • Dismantling and assembly.
  • Service and spare parts.
  • Guarantee 24 months.



Contact:

Pressl s.r.o.
Madlonova 21, 337 01 Rokycany, Czech Republic
Phone: +420 371 740 611
Fax: +420 371 740 612
E-mail: info@pressl.cz

Website: www.pressl.cz
