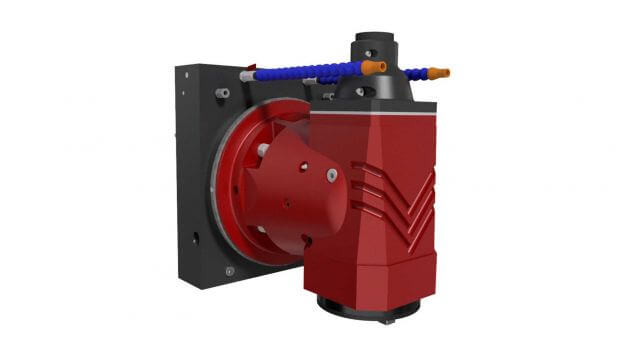

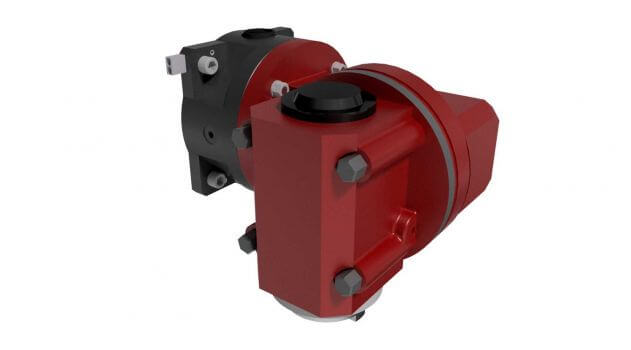

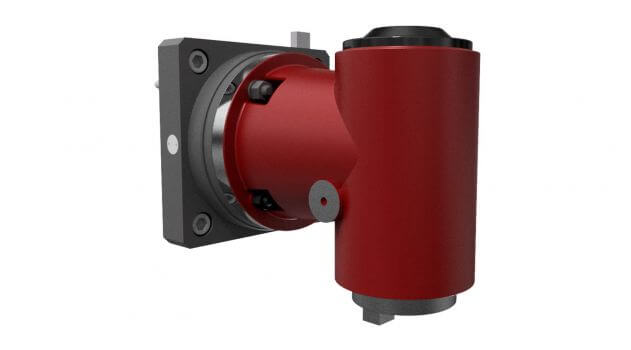

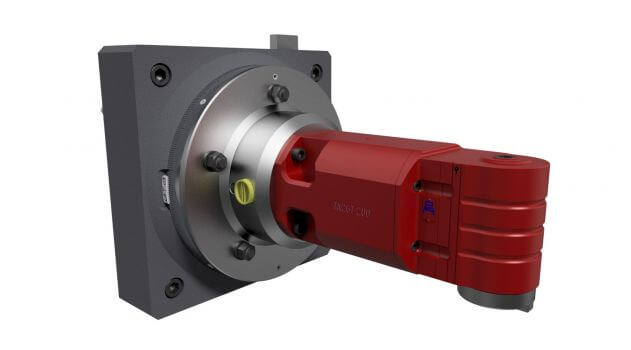

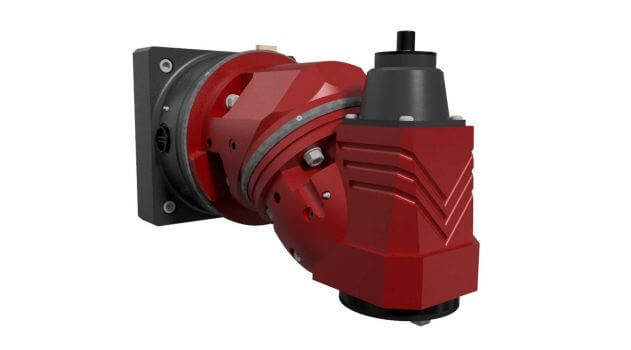

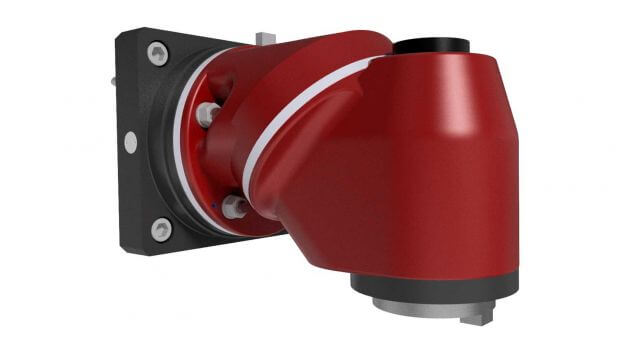

Preparation for manual heads.
|
|

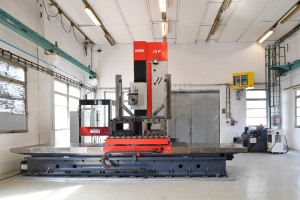

units | WFT 13 |

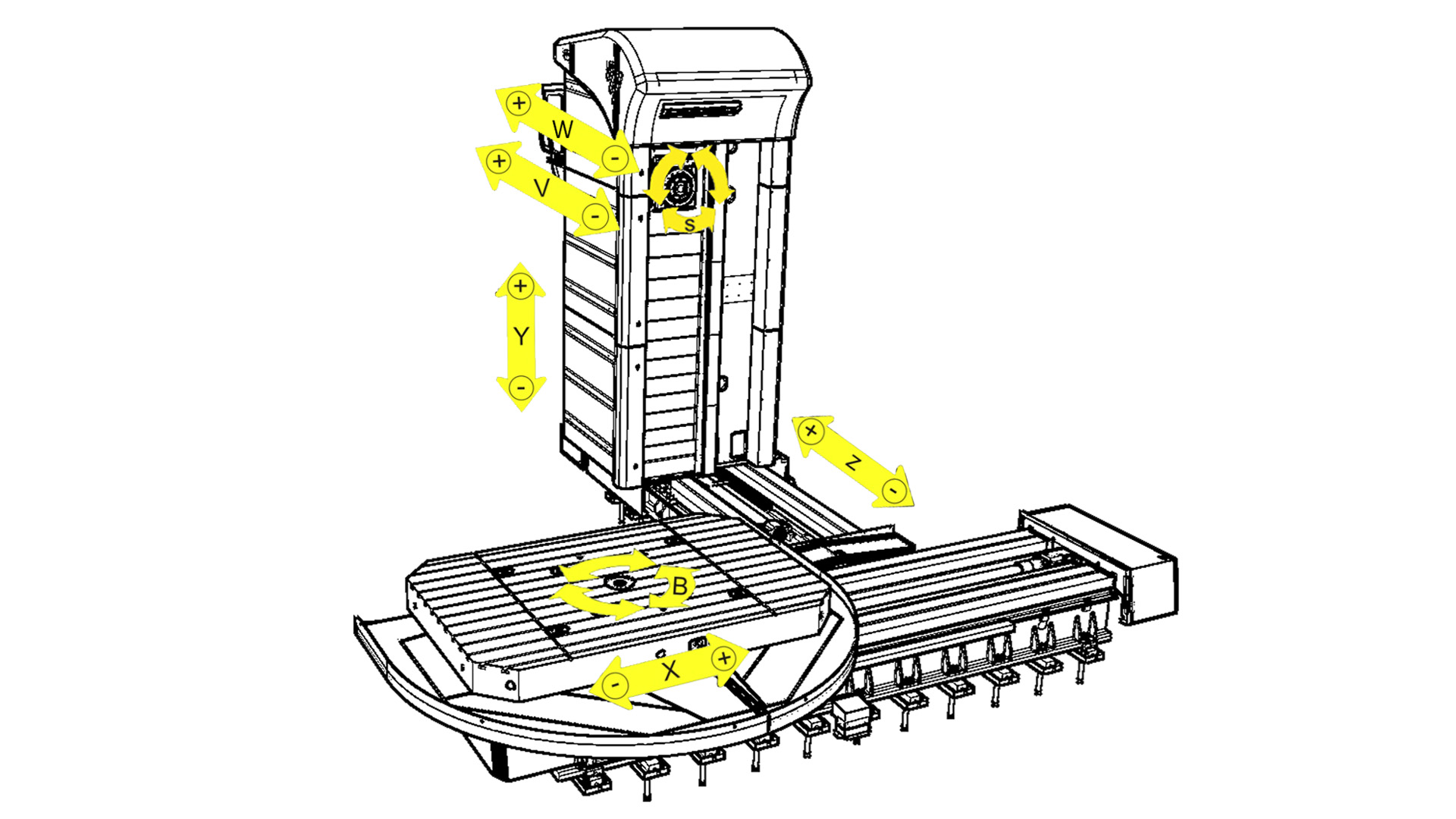

| Table Travel - X-Axis | in | mm | 118.1 | 3 000 |
| Headstock Travel - Y-Axis | in | mm | 78.8 | 2 000 |
| Column Travel - Z-Axis | in | mm | 59 | 1 500 |
| Spindle Travel - W-Axis | in | mm | 31.5 | 800 |
| Spindle Diameter | in | mm | 5.1 | 130 |
| Max. Spindle Speed | rpm | 3 400 |
| Rotary Table | in | mm | 70.9 x 86.6 |1 800 x 2 200 |
| Table Load | lbs | ton | 44 000 | 22 |
| Max. Power | hp | kW | 50 | 37 |
| Control System |
FANUC Fermat series
|
|
| Available |
NOW
|
|
