Horizontal Machining Centers with high performance milling heads for a wide range of machining.

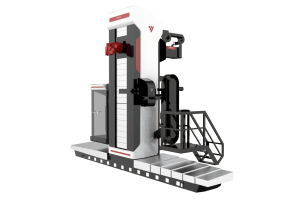

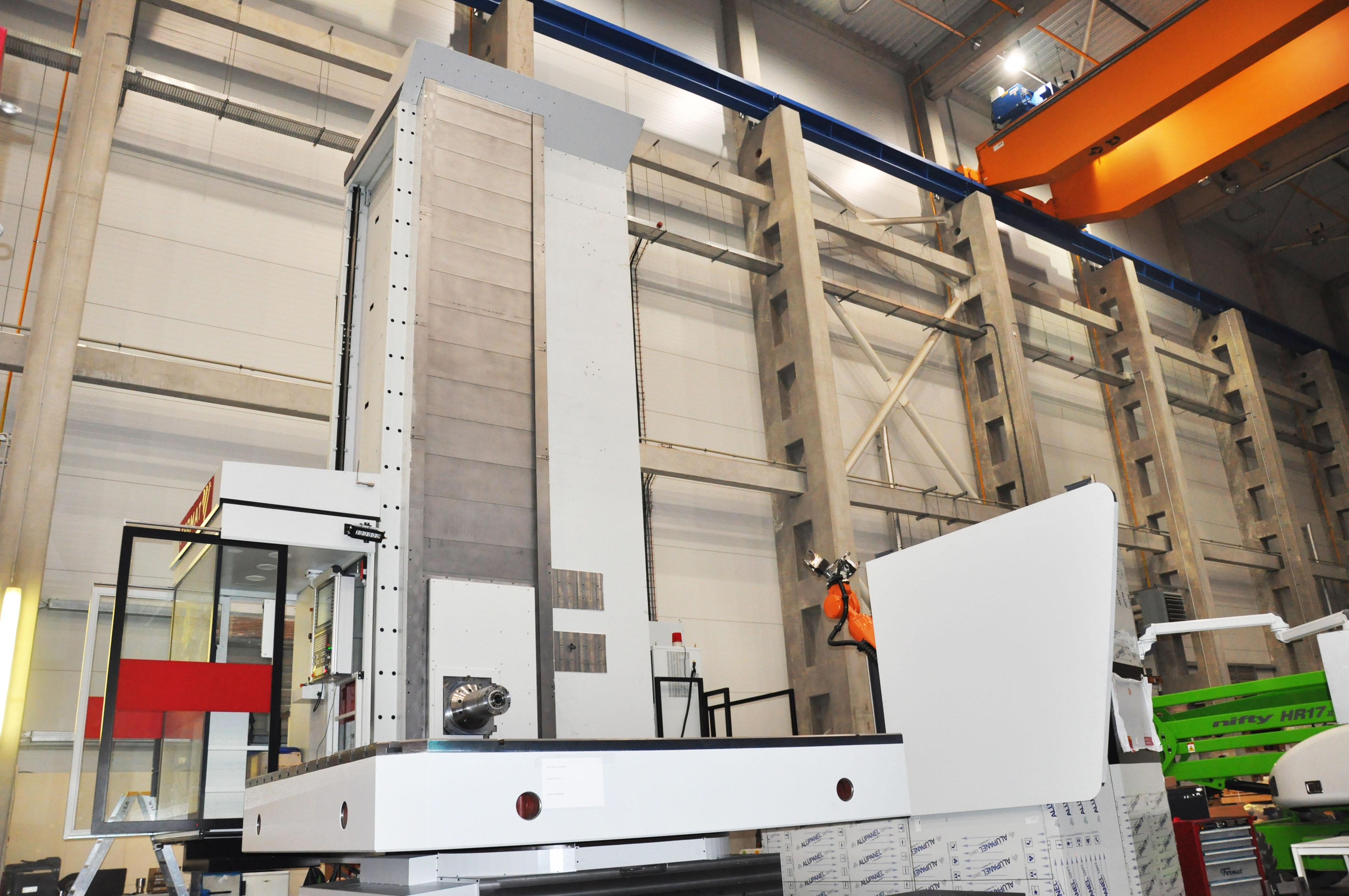

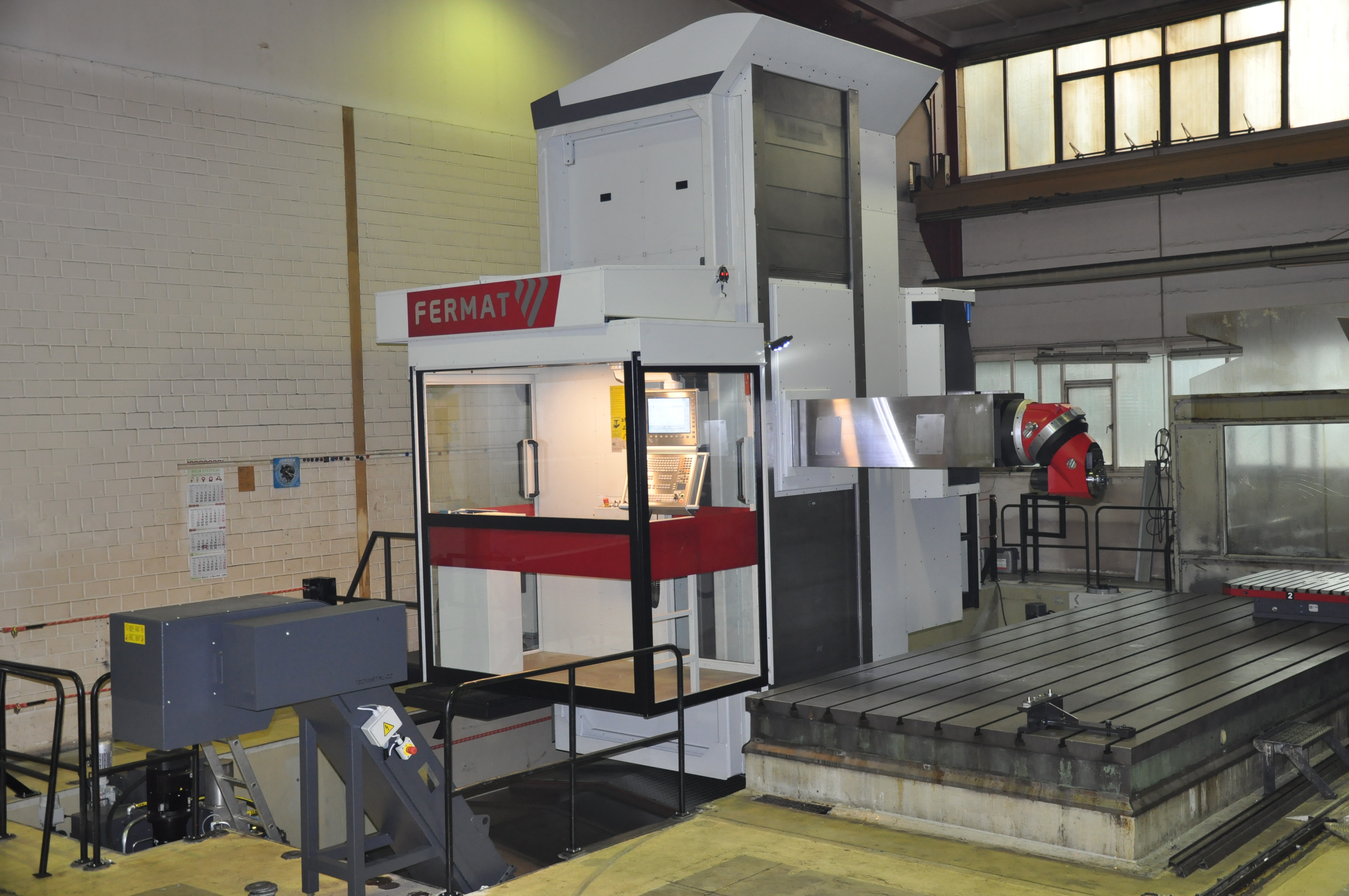

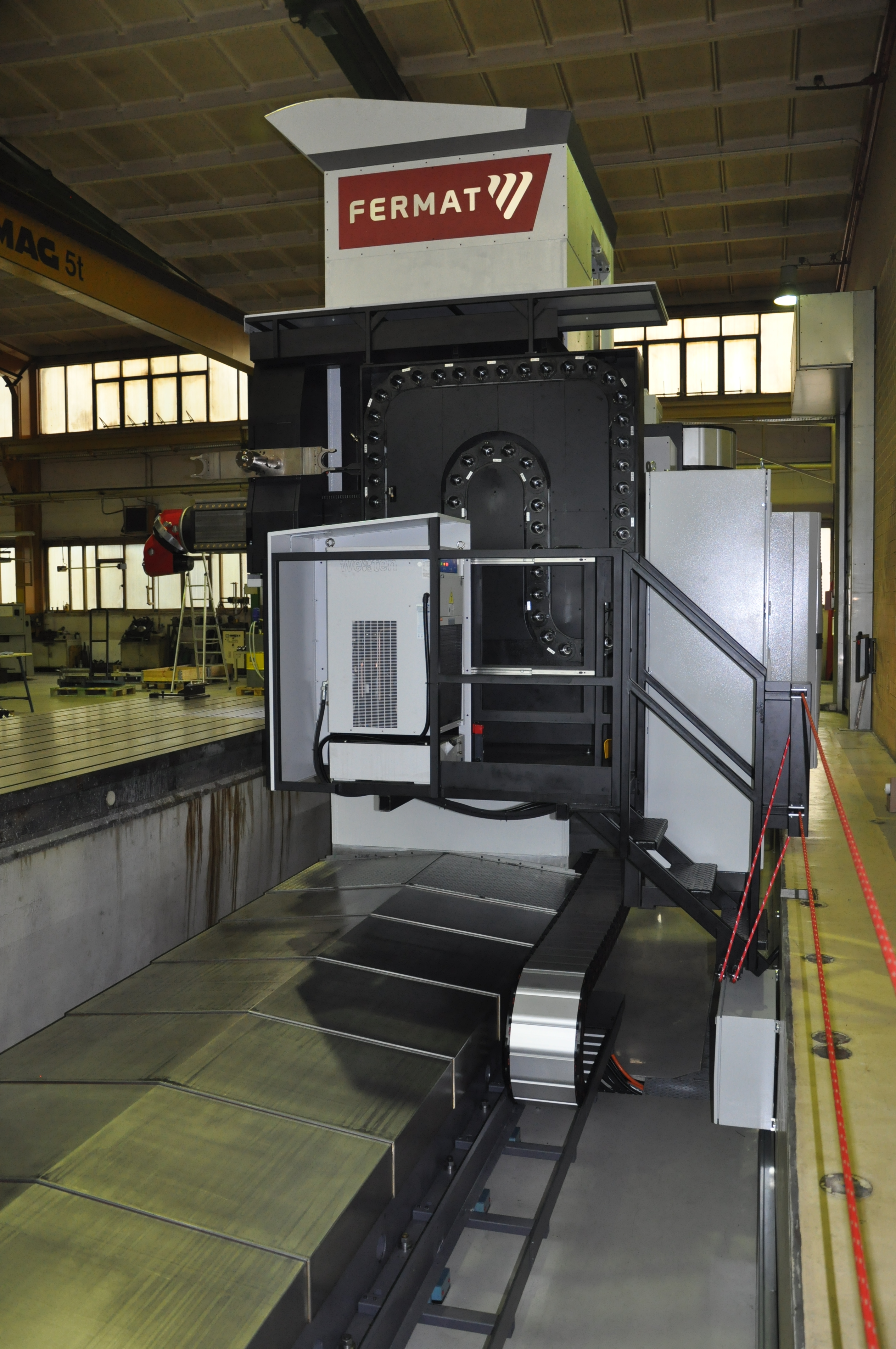

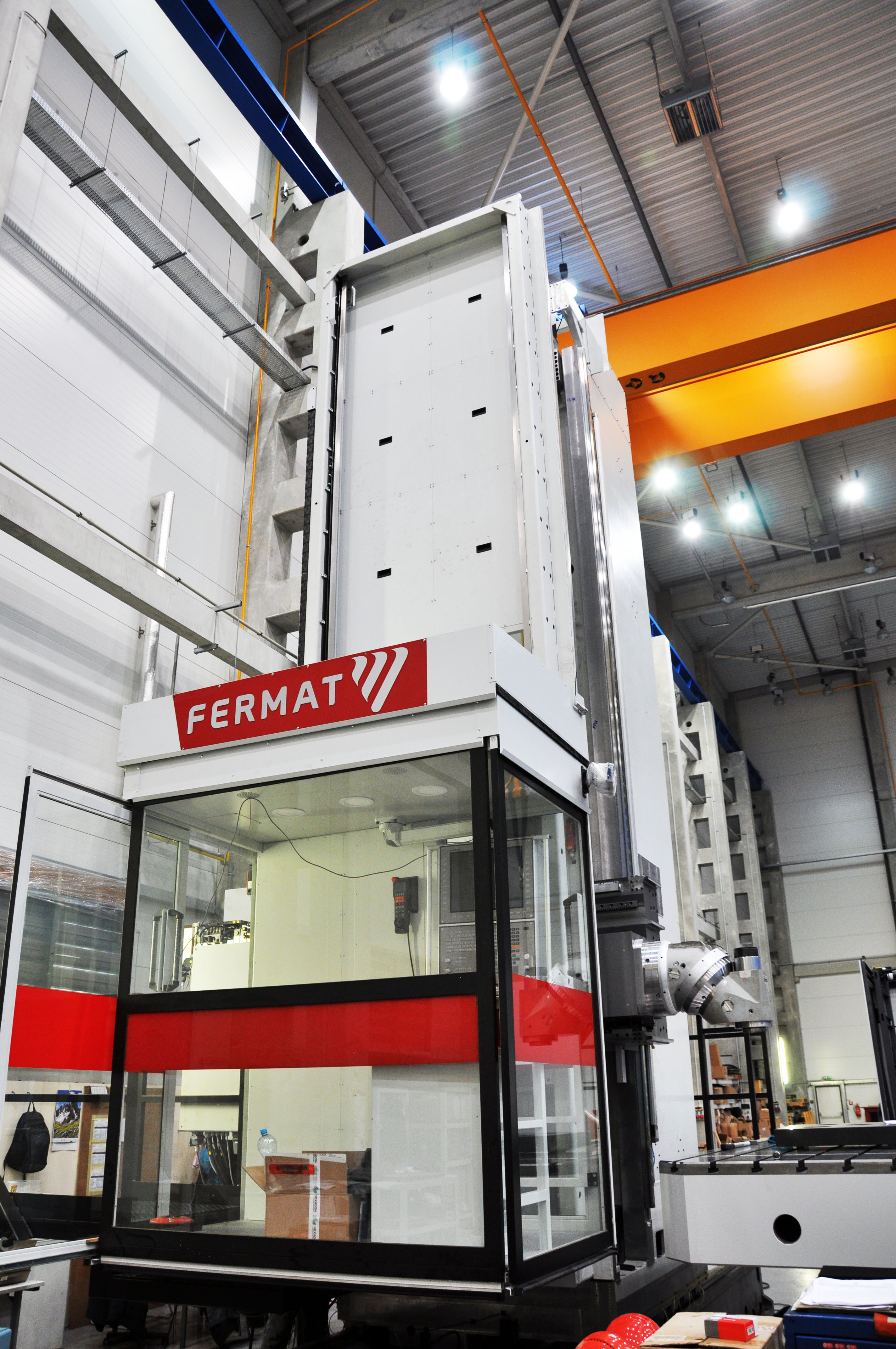

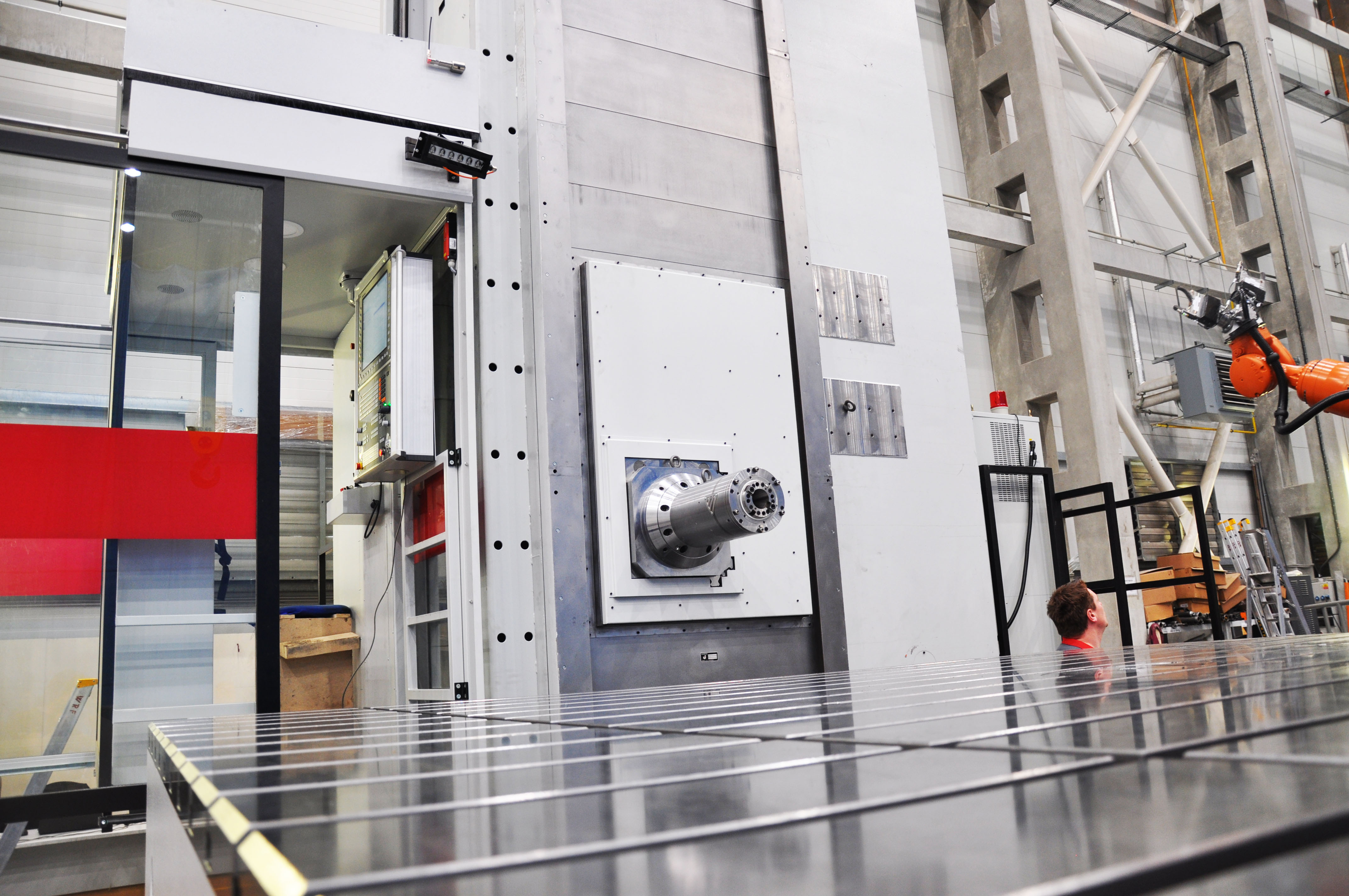

WRF Mill is a floor-type milling machine with a 59 in /1 500 mm, optionally 79 in / 2 000 mm ram stroke. Machine is equipped with floor plate and rotary table. Optional accessories and milling heads. Ideal for fast and precise milling and drilling of a medium-size large workpieces.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
|
|
units |
WRF MILL
|
| Spindle Taper |
|
SK 50 / CAT50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
| Spindle Speed (max.) | rpm |
5 000
|
| Max. Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
57.7/80.5; 72/106
|
| kW |
43/60; 53/77,9
|
|
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm | 917/1274; 1591/2338
|

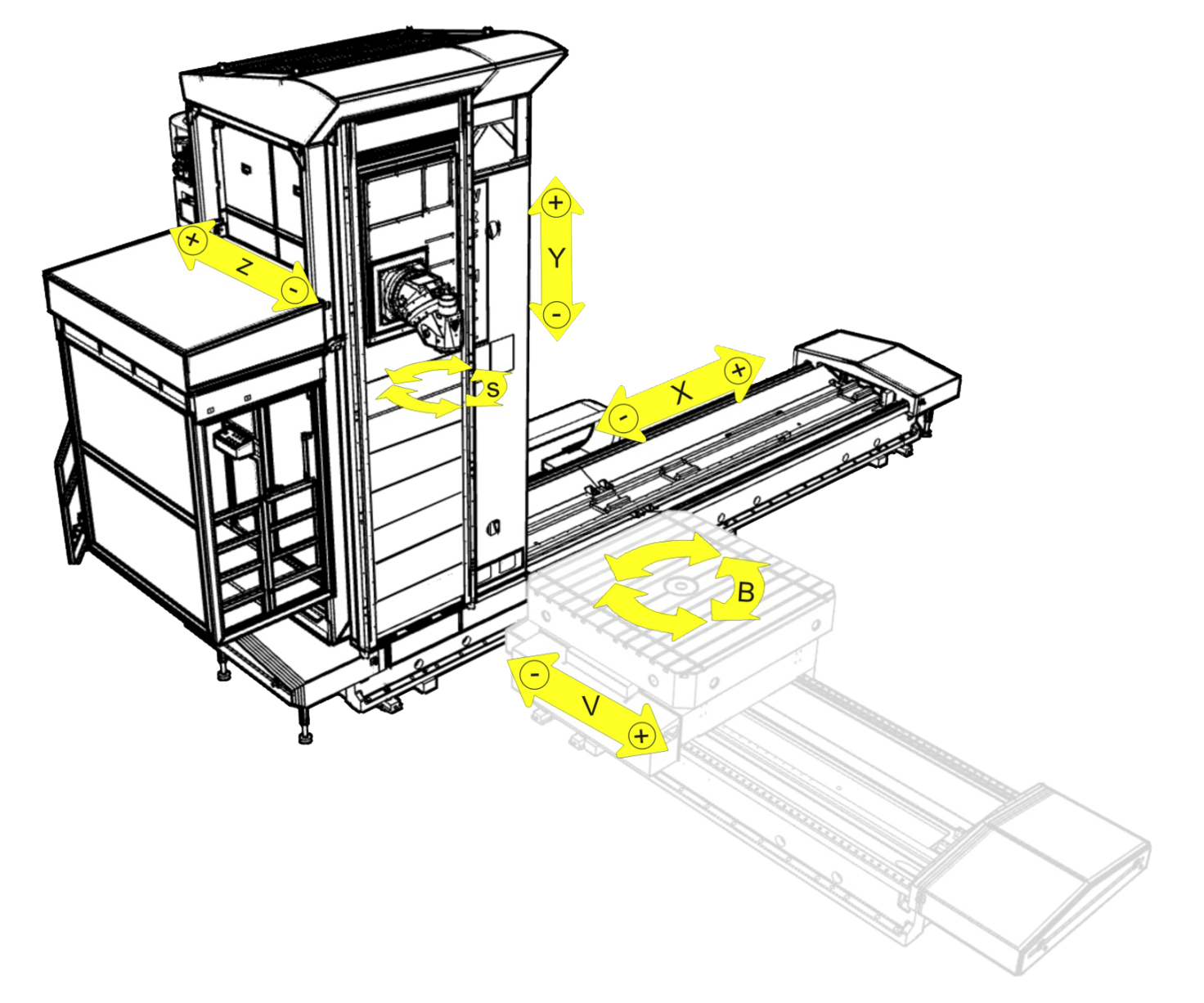

| X-Axis Travel of Column | in |
157.5 - 1 106
|
| mm |
4 000 - 28 100
|
|
| Y-Axis Travel of Headstock | in |
79 - 236
|
| mm |
2 000 - 6 000
|
|
| Z-Axis Travel of Ram | in |
59 opt. 79
|
| mm |
1 500 opt. 2 000
|
|
| Rapid Feed X, Y | in/min |
787.4, 590.6
|
| mm/min |
20 000, 15 000
|
|
| Rapid Feed Z | in/min | 787.4 |
| mm/min |
20 000
|
