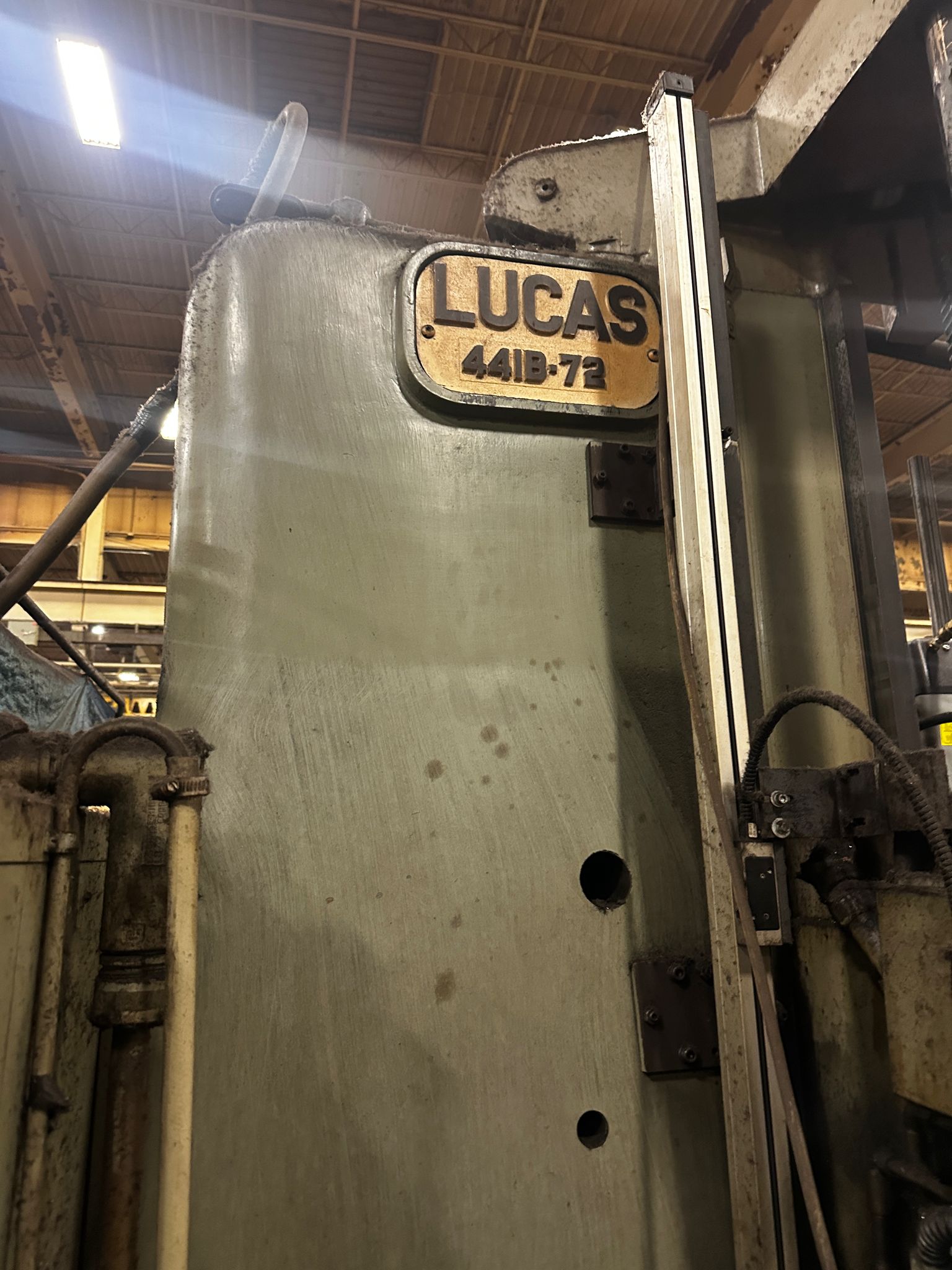

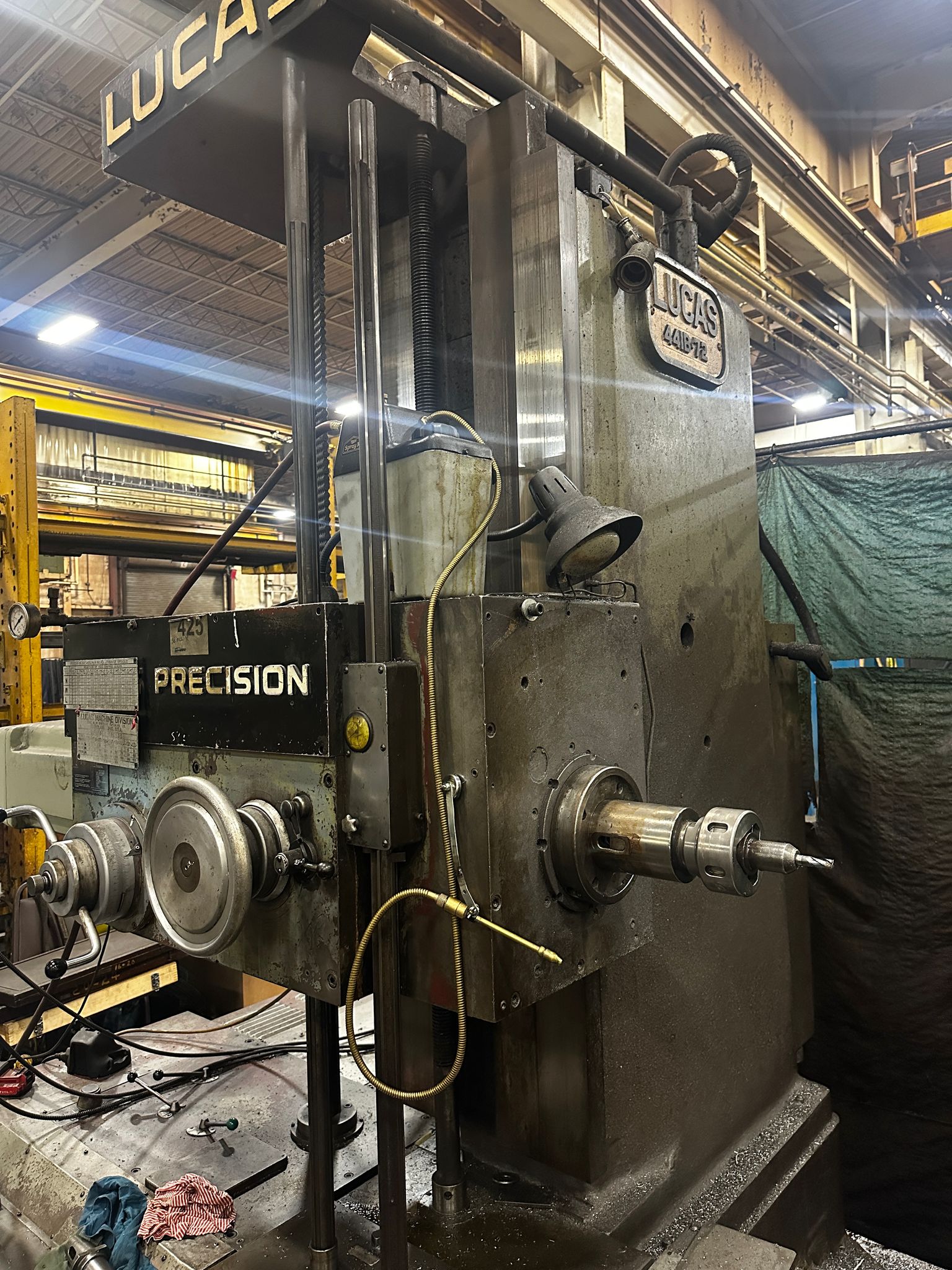

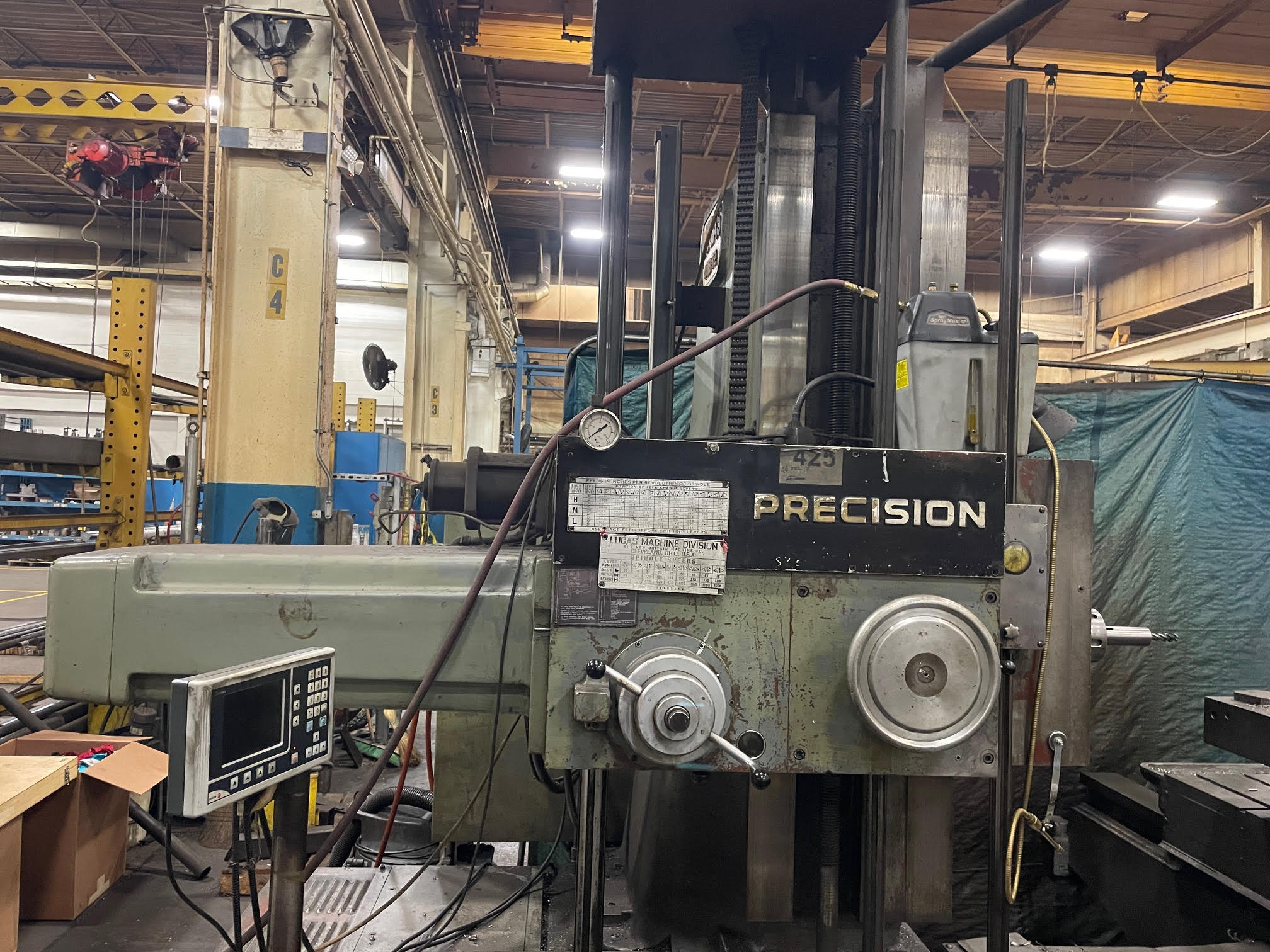

4" Horizontal Boring Mill Lucas 441B-72

SPECIFICATION OF THE  MACHINE:

- Serial 41B3124

- Original year 1967

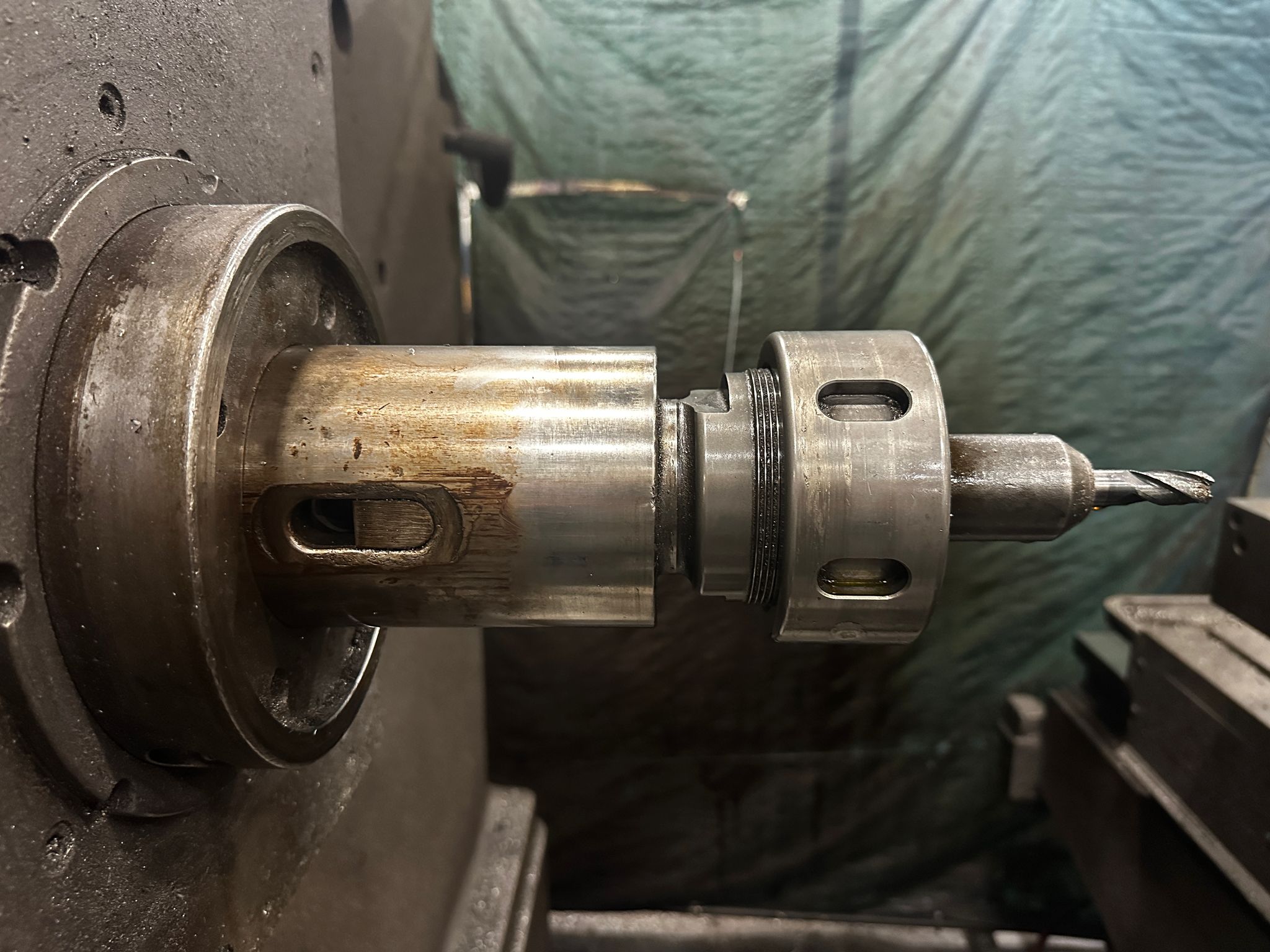

- #6 Morse Taper 4" diameter spindle - No Power Tool ejector

- 24" Spindle Feed W-Axis

- 15-1550 Spindle RPM

- 57" Z-Axis Saddle Travel with the backrest installed;

- 77" saddle travel when backrest is removed

- 48" Vertical Y-Axis Travel

- 60" Cross Travel with 36" x 74" Table

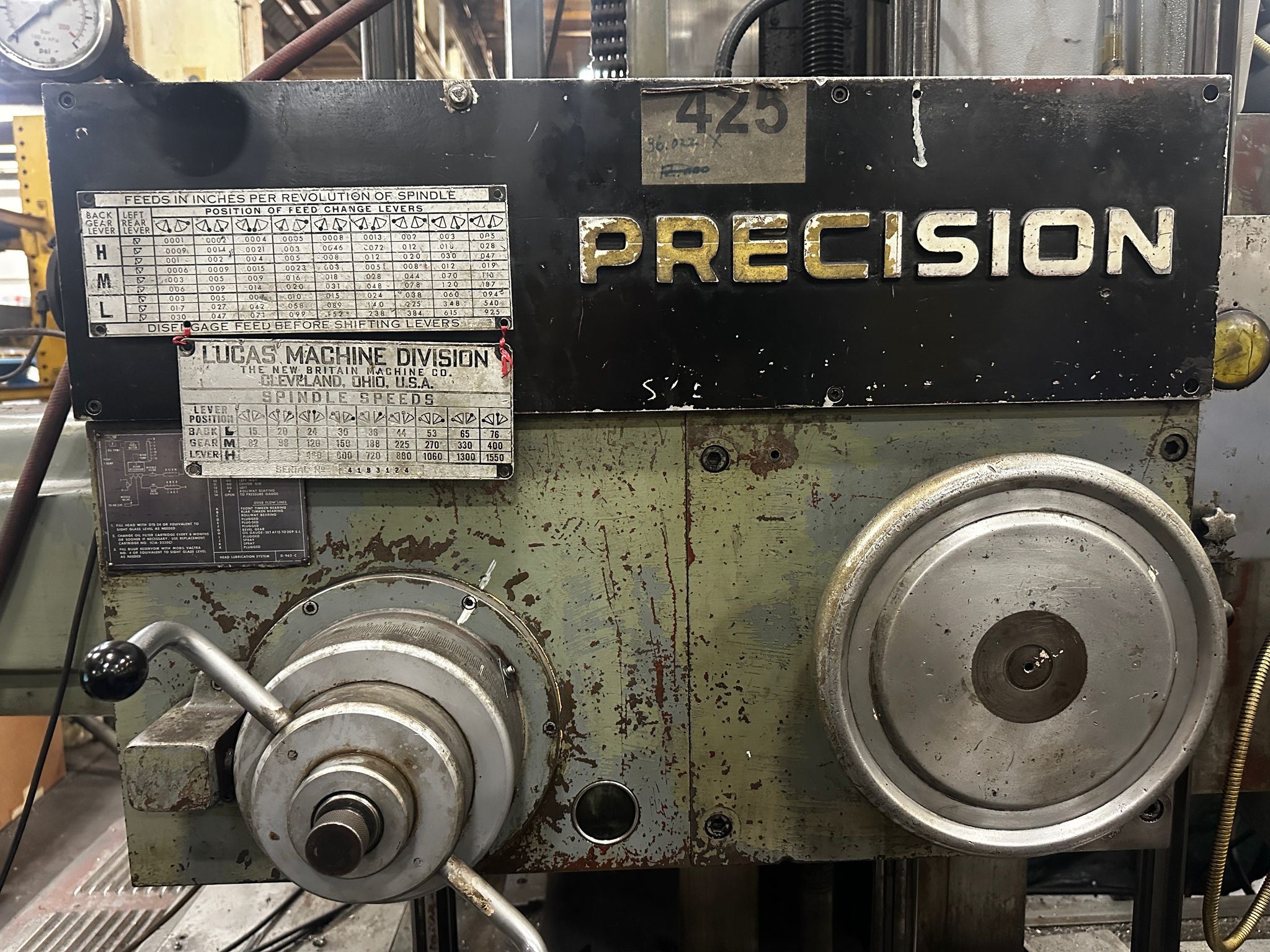

- Manual Shifting for Feeds, and Speeds, Manual Backgear Shifting as well.

- 15HP Main motor, originally wired for 220VAC/3-phase/60 Hz

- Weight of a Model 441B-72 - 35,600 pounds.

FEATURES:

➢ Rotary table included

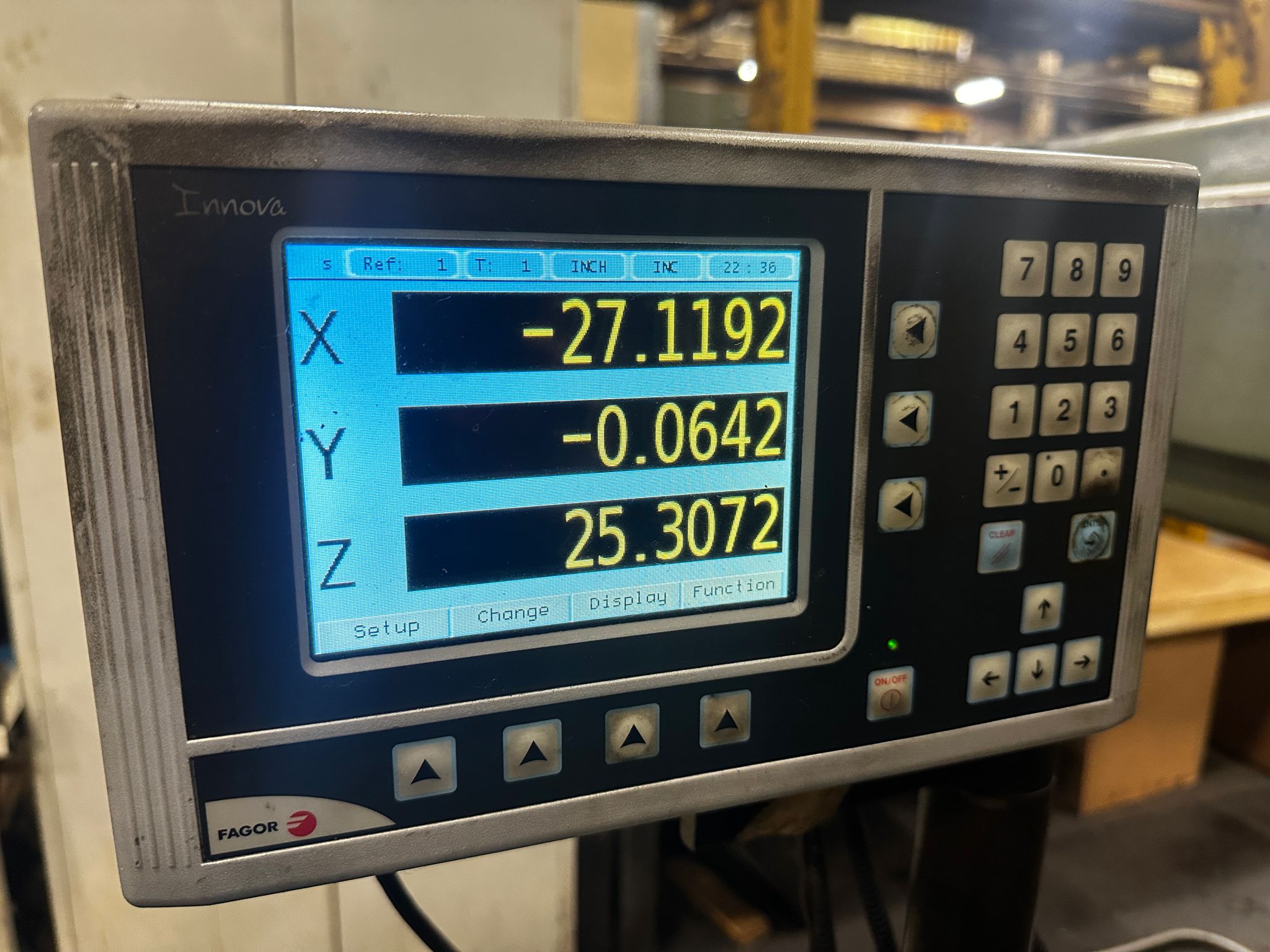

➢ 3 Axes DRO FAGOR

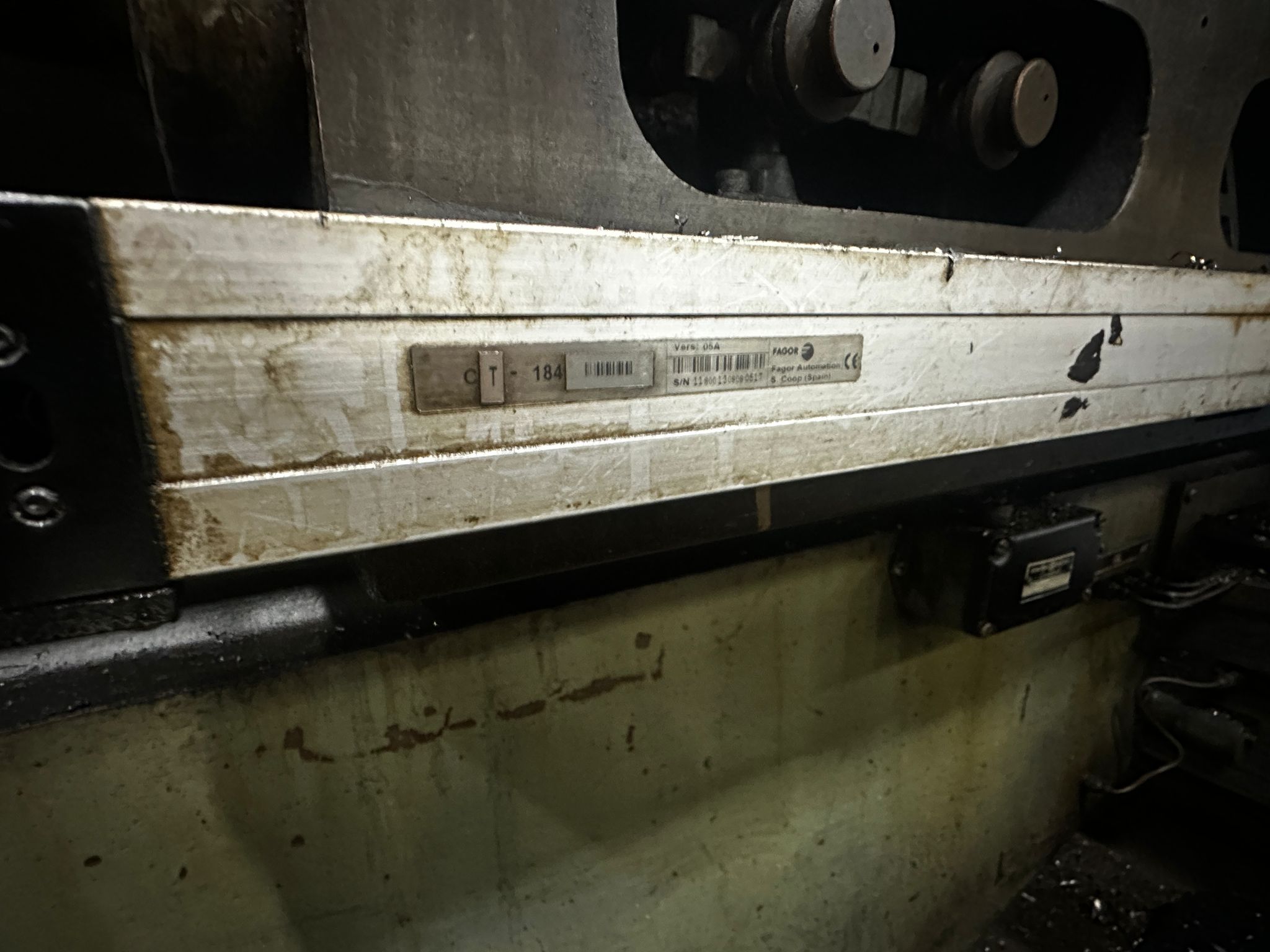

➢ Scales on X, Y, Z

➢ Original Documentation
