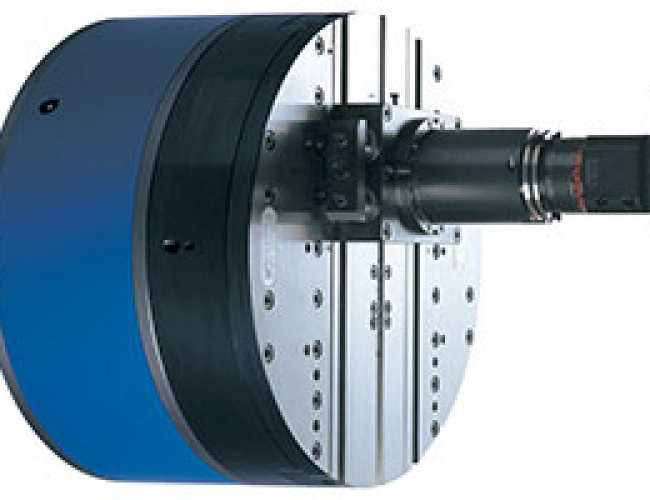

Automatic Facing Head
Plate Diameter
|
in
|
19.7 / 24.8 / 31.5 |
mm | 500 / 630 / 800 | |
Positioning |
|
automatic |
Max. Speed | rpm | 200 / 250 / 315 |
Approx. Weight | lbs | 507 / 683 / 1 168 |
kg | 230 / 310 / 530 | |
Boring Accuracy |
|
H7 |
Radial Traverse | in | 6.3 / 7.9 / 9.8 |
mm | 160 / 200 / 250 | |
Maximum Boring Diameter
(depth depending) |
in | 39.4 / 49.2 / 55.1 |
mm | 1 000 / 1 250 / 1 400 |
