PHA 37 (2,5°) - automatic

RIGHT ANGLE

Description

Accessories

Gallery

Video

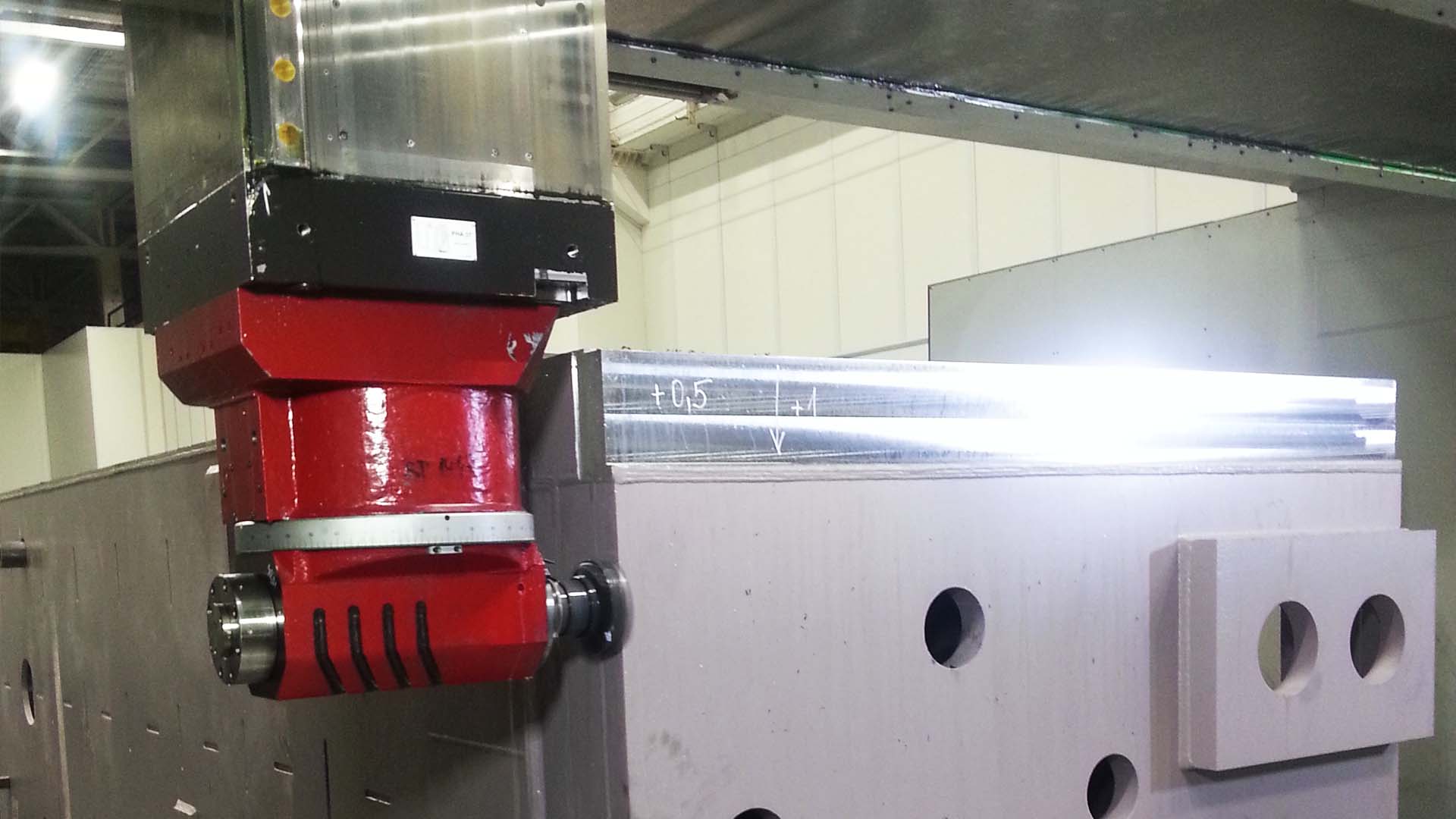

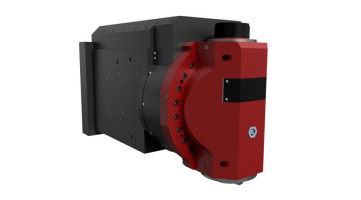

PHA 37 (2,5°) - automatic - Machine image

PHA 37 (2,5°) Right Angle Automatic Milling Head

Fully automatic attachment to the headstock, tool clamping, positioning, lubrication.

	units	PHA 37
Revolutions	rpm	10 - 3 000
Max. Torque	Nm	2 000
Spindle Taper		SK 50 / CAT 50 (DIN, MAS 45°, ANSI)/BIG+/HSK100
Clamping Force of Tool	kN	20±15%
Indexing	°	+/- 180, by 2,5
Outside Coolant		standard
Coolant Trough Spindle		standard
Lubrication		automatic by grease

Gallery

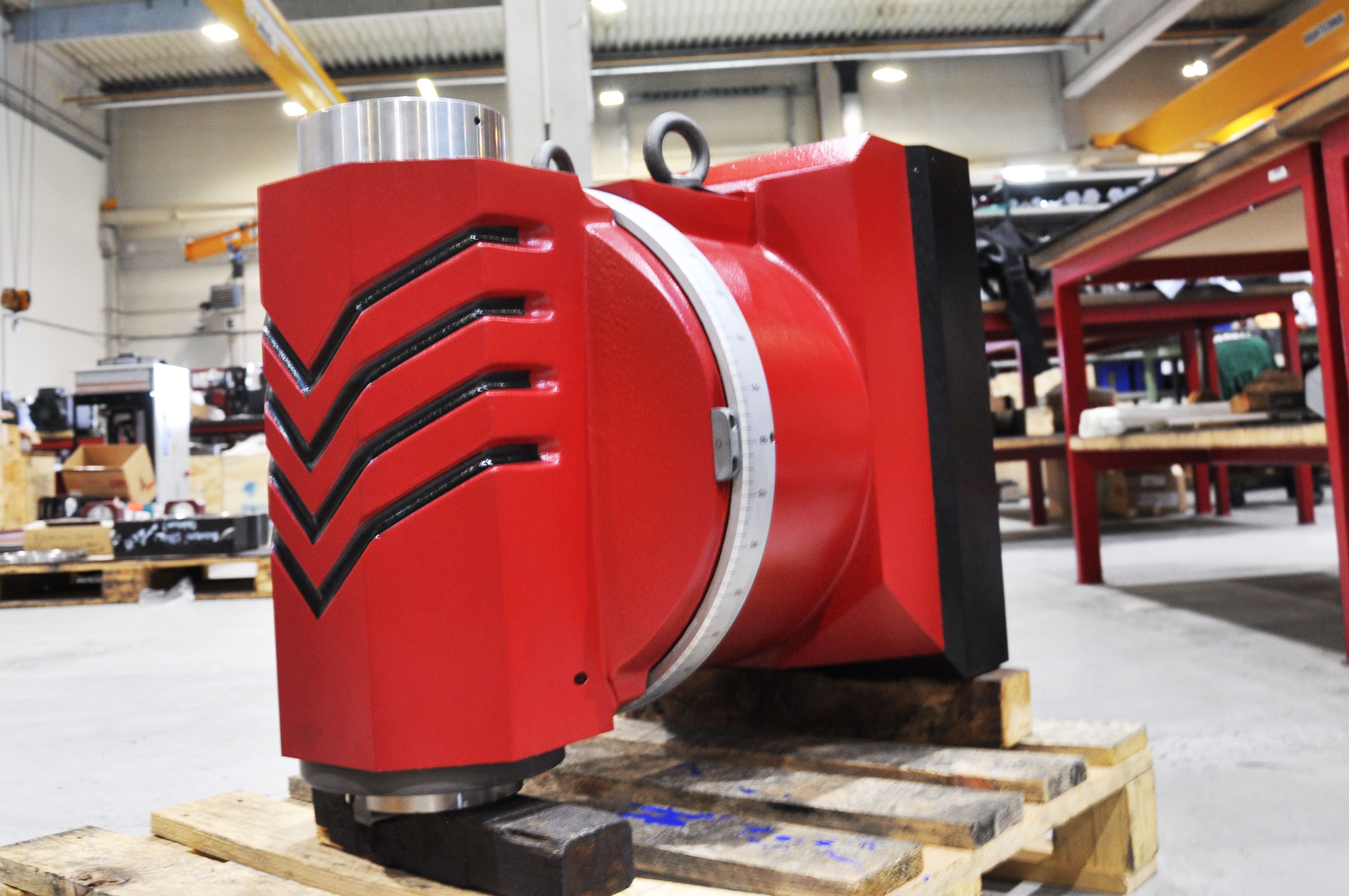

- Image1

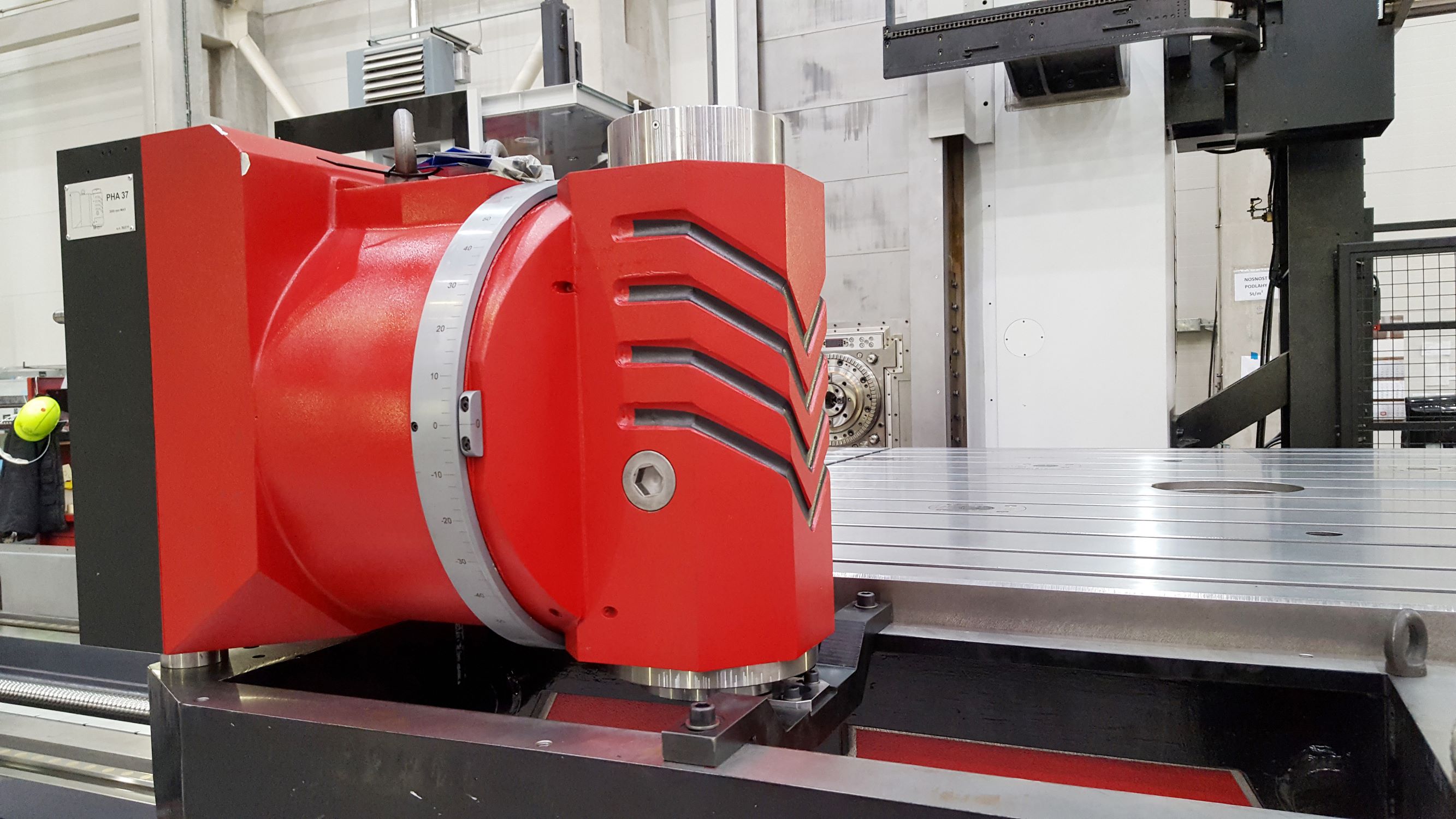

- Image2

- Image3

VIDEO

Are you interested in this product?
