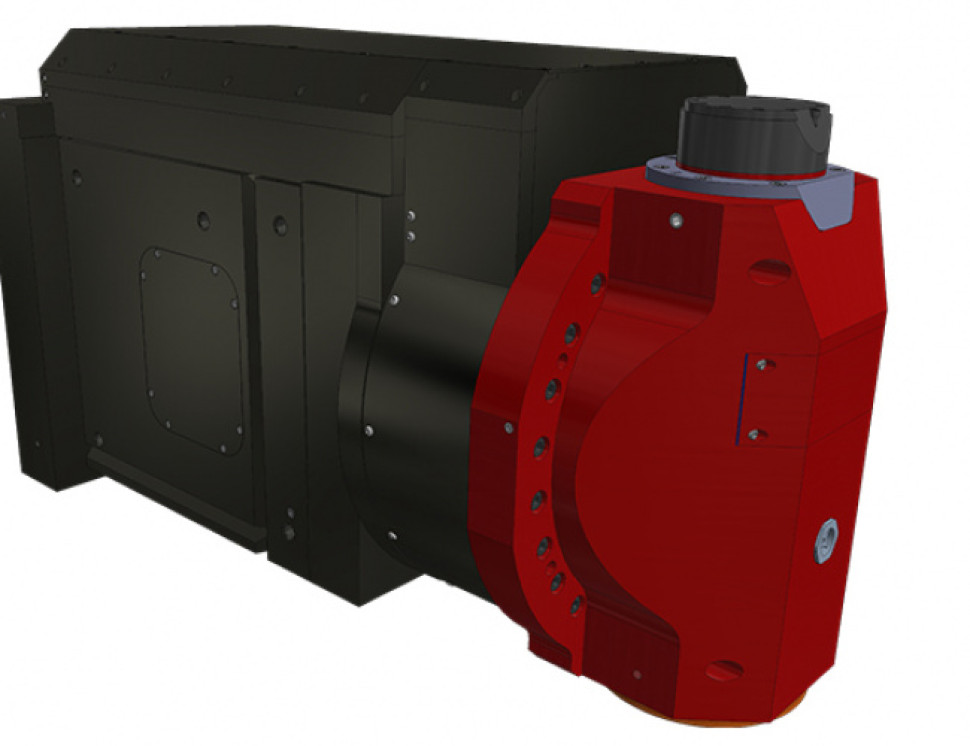

PHAmi 60 (0,001°) Right-angle Automatic Milling Head
Fully automatic attachment to the headstock, tool clamping, positioning, lubrication. C-Axis of the milling head is positioned by 2 servomotors, and motion is therefore independent from headstock spindle.
|
|
units
|
PHAmi 60
|
| Revolutions |
rpm
|
10 - 1 700
|
| Max. Torque |
Nm
|
3200
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
| Clamping Force of Tool |
kN
|
20±15%
|
| Stall Torque in Axis C |
Nm
|
7 000
|
| Indexing |
°
|
+/- 180, by 0.001
|
| External Tool Coolant |
|
standard
|
| Coolant Trough Spindle |
|
standard
|
| Lubrication |
|
automatic, oil
|
