Horizontal floor-type machines with cross traveling column are designed for machining of workpieces of up to 100 tons / 220462 lbs.

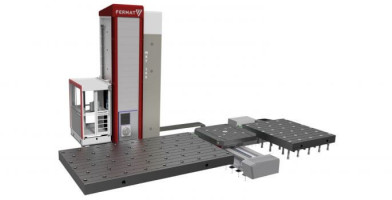

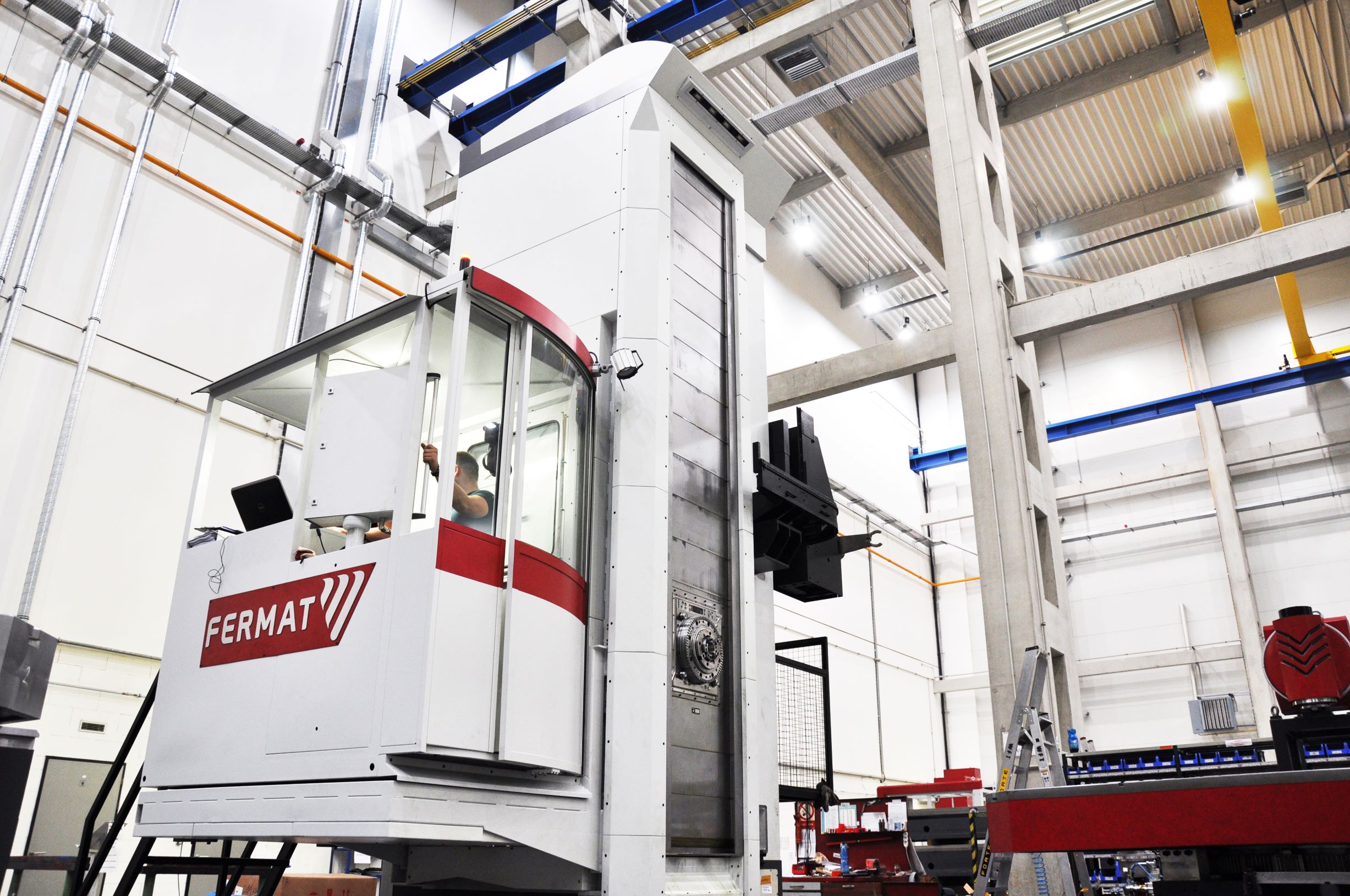

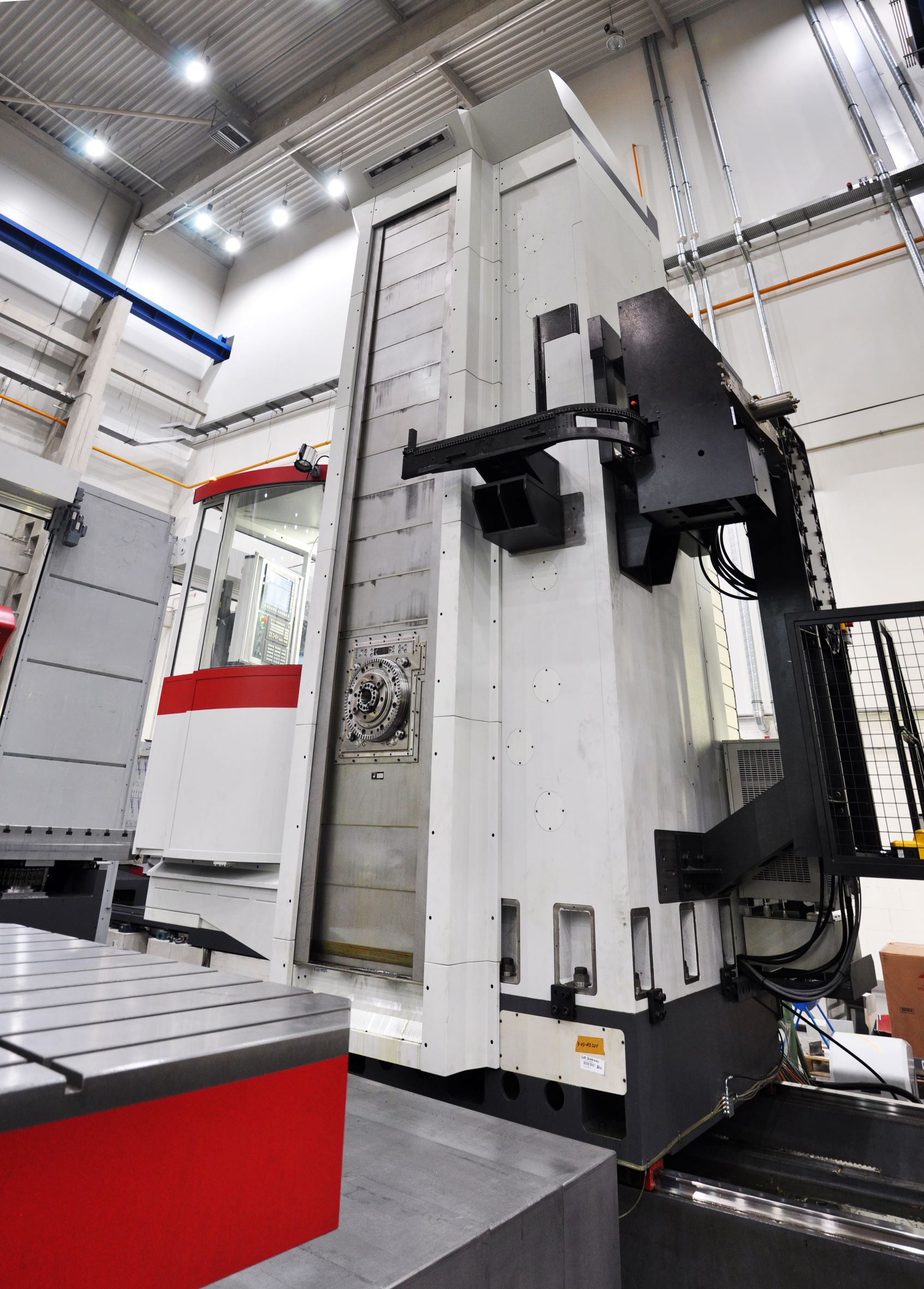

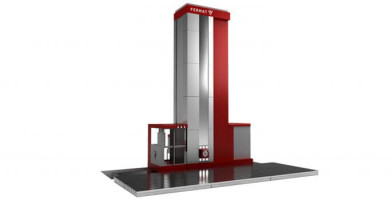

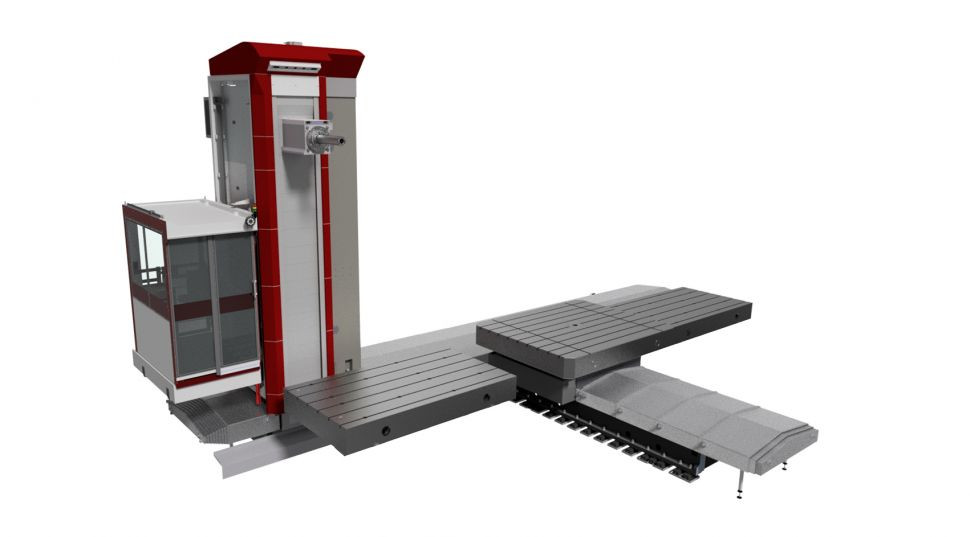

WF 13/15 R floor-type horizontal boring mill for powerful and precise, high-performance coordinate drilling, boring, and threading large and heavy workpieces. Spindle diameter 5.1 in / 130 mm or 5.9 in / 150 mm, spindle travel 31.5 in / 800 mm and ram stroke of 27.6 in / 700 mm. Machine is equipped with floor plates and/or rotary tables and it is fully compatible with a wide range of our accessories and automatic milling heads.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
|
|
units |
WF 13 R
|
WF 15 R
|

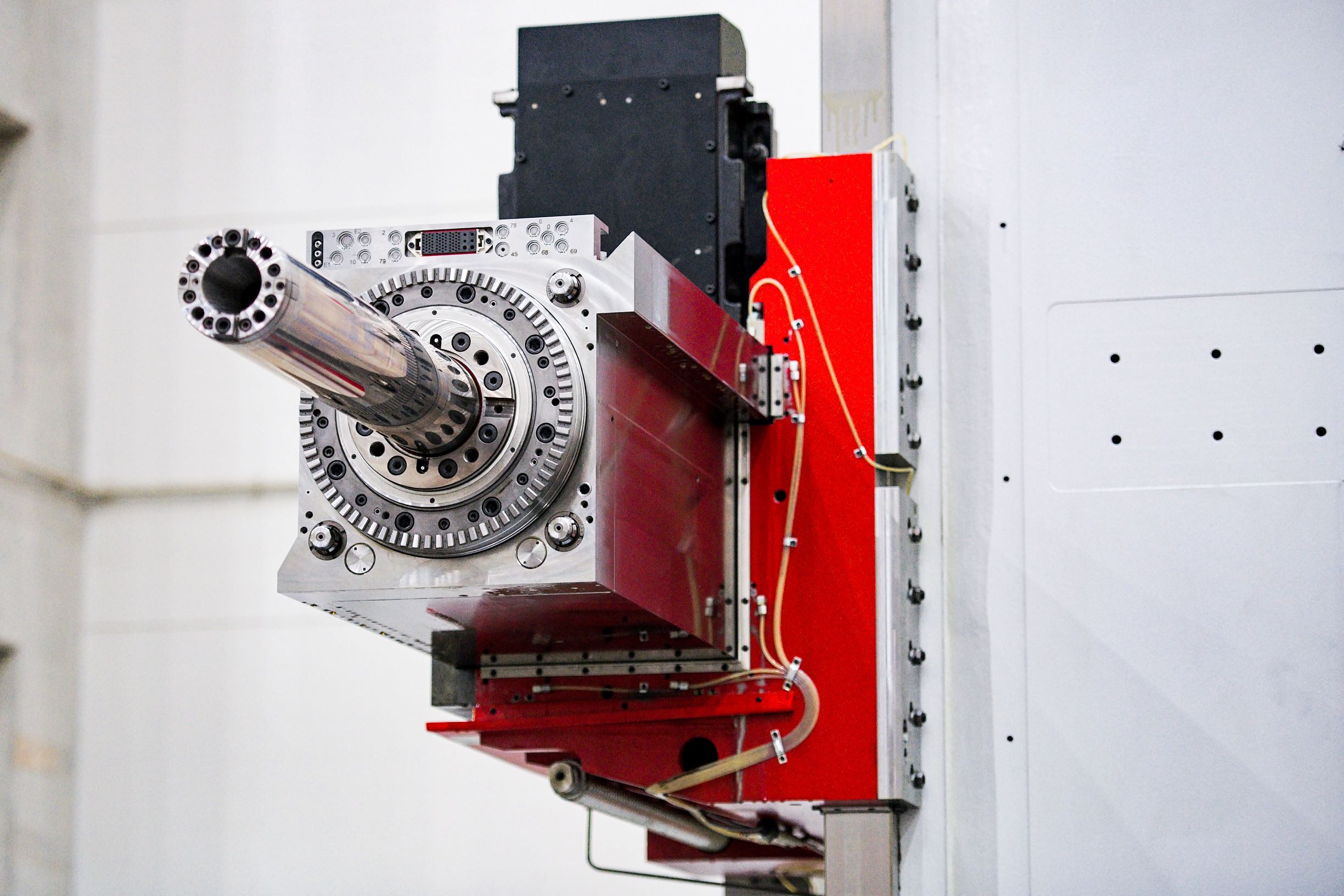

| Spindle Diameter | in |
5.1
|
5.9
|
| mm |
130
|
150
|
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+/ HSK100
|
|
| Spindle Speed (max.) | rpm |
3 400 (opt. 4 000)
|
3 000 (opt. 3500)
|
| Main Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
54.9/82.4; 71/104.4
|
|
| kW |
41/61,5; 53/77,9
|
||
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm |
2 099/3 149; 2 713/3 989
|
|
| Main Power FANUC CNC (S1/S3) | hp |
49.6/60.3; 71/104.5
|
|
| kW |
37/45; 53/77.9
|
||
| Max. Torque FANUC CNC (S1/S3) | Nm |
2 210/2 687; 2 713/3 989
|
|

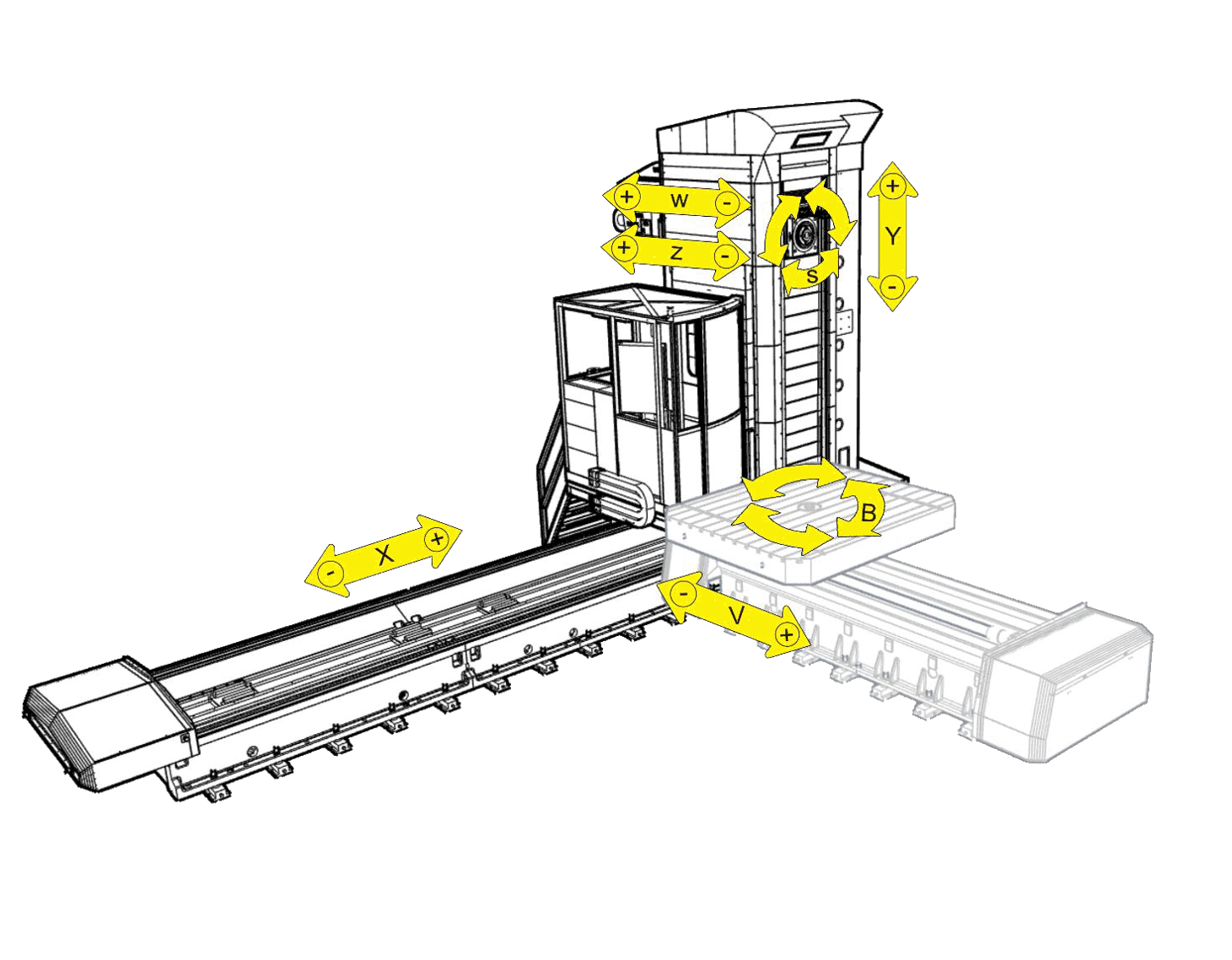

| X-Axis Cross-Travel of Column | in |
157.5 - 866.1
|
|
| mm |
4 000 - 22 000
|
||
| Y-Axis Vertical Travel of Headstock | in |
78.7 / 98.4 / 118.1 / 137.8
|
|
| mm |
2 000 / 2 500 / 3000 / 3 500
|
||
| Z-Axis Longitudinal Travel of Ram | in |
27.6
|
|
| mm |
700
|
||
| W-Axis Spindle Travel | in |
31.5
|
|
| mm |
800
|
||
| Rapid Feed X, Y | in/min |
787.4, 472.4
|
|
| mm/min |
20 000, 12 000
|
||
| Rapid Feed Z, W | in/min |
472.4, 393.7
|
|
| mm/min |
12 000, 10 000
|

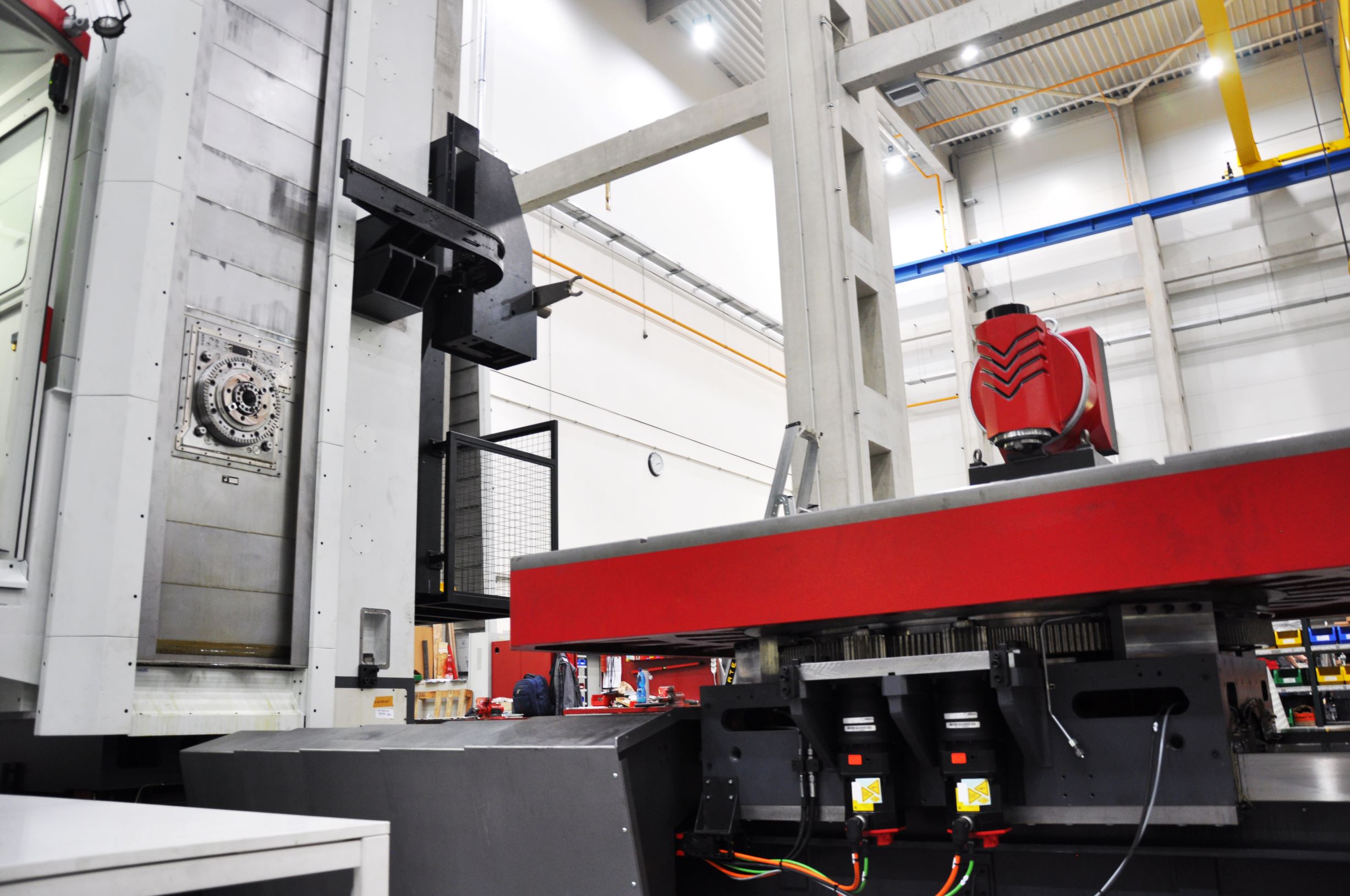

||
| Rotary Table - Optional |
|
|
|
| Table T10 | in |
47.2 x 47.2 / 47.2 x 55.1 / 55.1 x 63 / 63 x 63 / 55.1 x 70.9 / 63 x 70.9
|
|
| mm |
1 200 x 1 200 / 1 200 x 1 400 / 1 400 x 1 600 / 1 600 x 1 600 / 1 400 x 1 800 / 1 60 x 1 800
|
||
| Table T20 | in |
63 x 70.9 / 70.9 x 86.6 / 70.9 x 102.4 / 78.7 x 94.5 / 98.4 x 98.4 / 78.7 x 118.1
|
|
| mm |
1 600 x 1 800 / 1 800 x 2 200 / 1 800 x 2 600 / 2 000 x 2 400 / 2 500 x 2 500 / 2 000 x 3 000
|
||
| Table T25-50 | in |
78.7 x 78.7 / 78.7 x 98.4 / 98.4 x 98.4 / 98.4 x 118.1 / 118.1 x 118.1 / 118.1 x 137.8 / 137.8 x 137.8 / 98.4 x 196.9
|
|
| mm |
2 000 x 2 000 / 2000 x 2500 / 2500 x 2500 / 2500 x 3000 / 3000 x 3000 / 3000 x 3500 / 3500 x 3500 / 2500 x 5000
|
||
