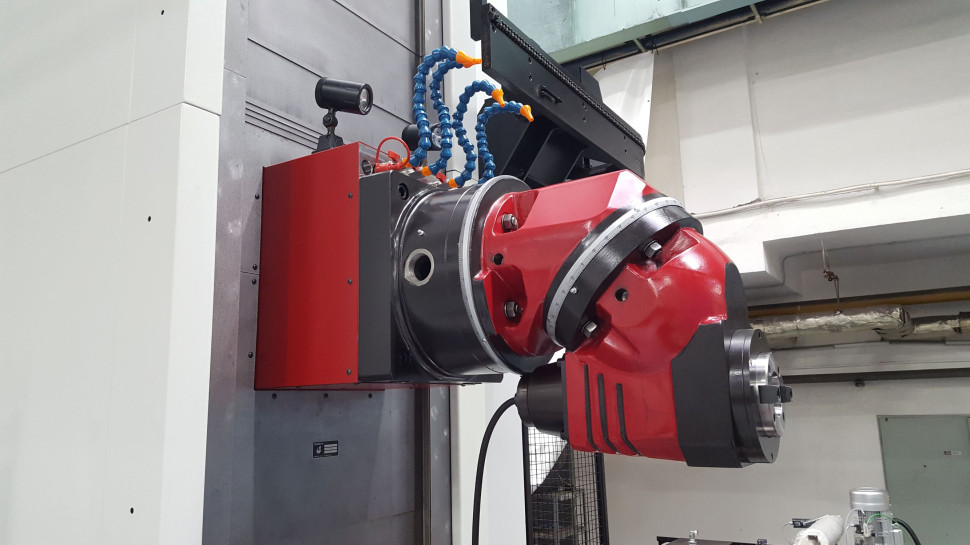

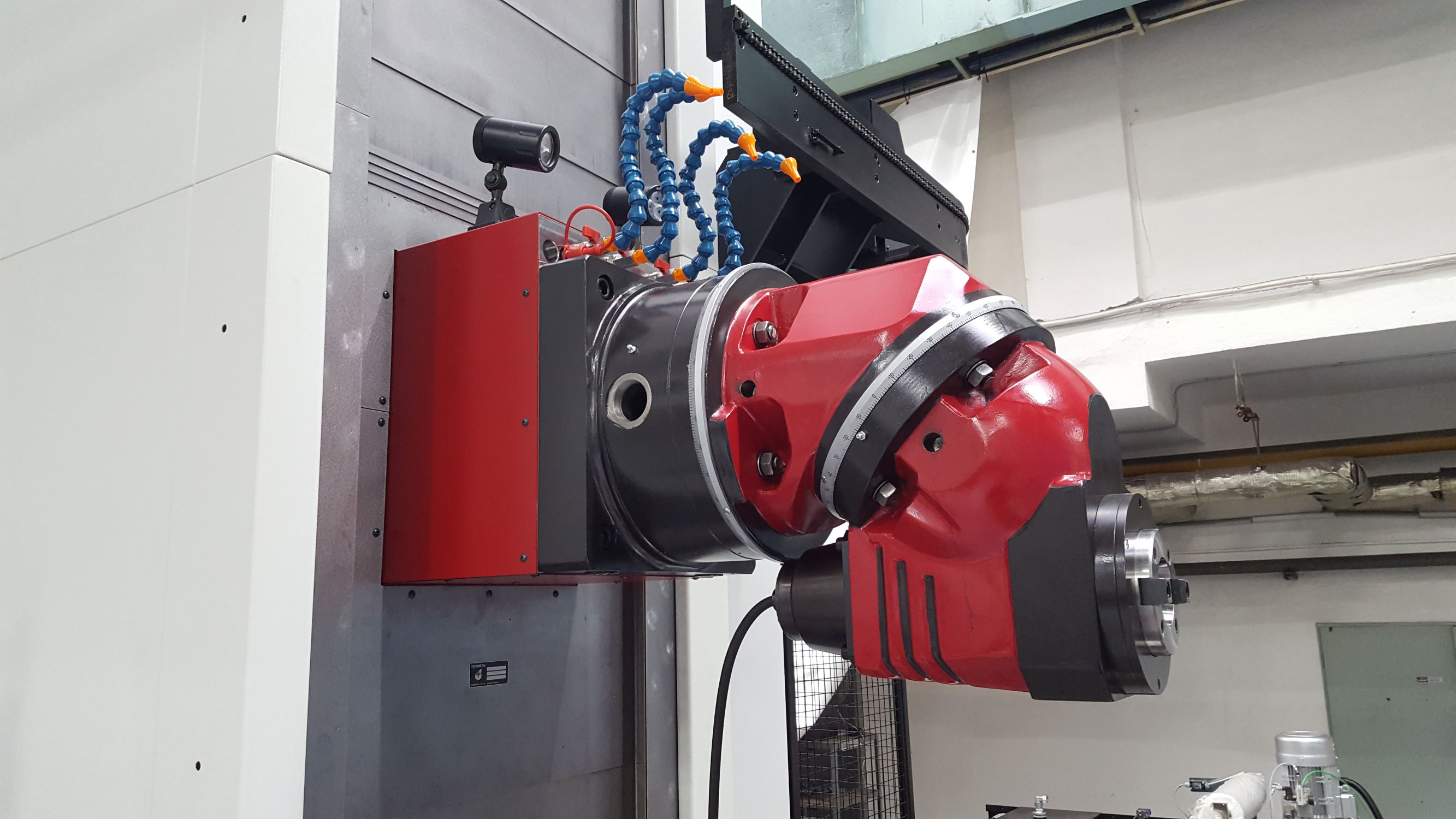

UHM 30
Universal manual milling head
Manually attached to the headstock, manual positioning, automatic tool clamping and unclamping.
units
UHM 30
Speed
rpm
10-3000
Max. Power
kW
30
Max. Torque
Nm
1600
Spindle Taper
-
SK 50
Tool-clamping Force
kN
20±15%
Indexing
°
any/2,5 °/1°, +/- 180°
Outside Coolant: standard
Coolant Through Spindle: optional
Lubrication: manual by grease
