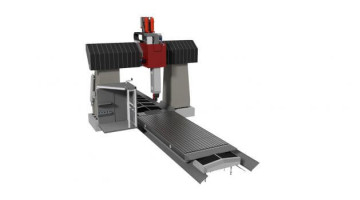

Bridge/Gantry-type machines with movable gantry or table, and with a wide range of accessories.

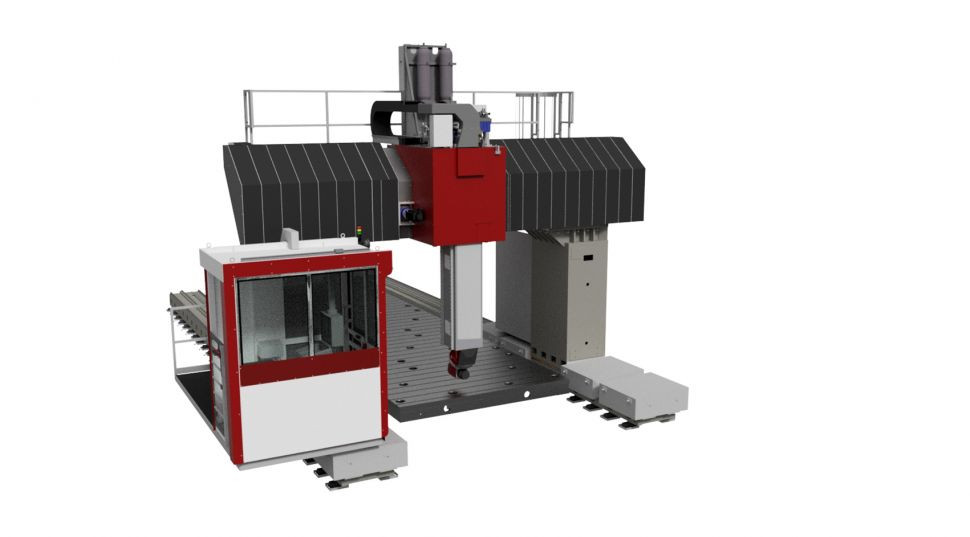

FG is a gantry-type machine with movable portal, adjustable according to the dimensions of the workpiece. Machine with a milling headstock, ram travel 61 in / 1 550 mm and equipped with a fixed table. Great variety of optional accessories and milling heads.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
|
|
units |
FG
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
| Spindle Speed (max.) | rpm |
5 000 / 6 000
|
| Max. Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
57.7/80.5; 71.1/104.5
|
| kW |
43/60; 53/77.9
|
|
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm |
917/1 274; 1 591/2 338
|
| X-Axis Travel of the Portal | in |
275.6 / 354.3 / 433.1 / 511.8
|
| mm |
7 000 / 9 000 / 11 000 / 13 000
|
|
| Y-Axis Horizontal Travel of Headstock | in |
141.7 / 161.4 / 181.1
|
| mm |
3 600 / 4 100 / 4 600
|
|
| Z-Axis Vertical Travel of Ram | in |
61
|
| mm |
1 550
|
|
| Fixed Table Plate Width | in |
78 / 98 / 118
|
| mm |
2 000 / 2 500 / 3000
|
|
| Fixed Table Plate Length | in |
236 / 314 / 393 / 472
|
| mm |
6 000 / 8 000 / 10 000 / 12 000
|
|
| Rapid Feed X, Y | in/min |
590.6, 590.6
|
| mm/min |
15 000, 15 000
|
|
| Rapid Feed Z | in/min |
787.4
|
| mm/min |
20 000
|
