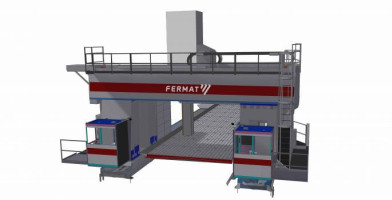

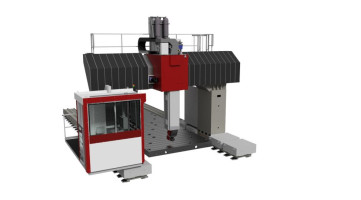

Bridge/Gantry-type machines with movable gantry or table, and with a wide range of accessories.

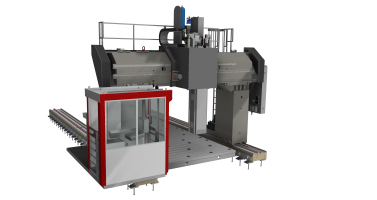

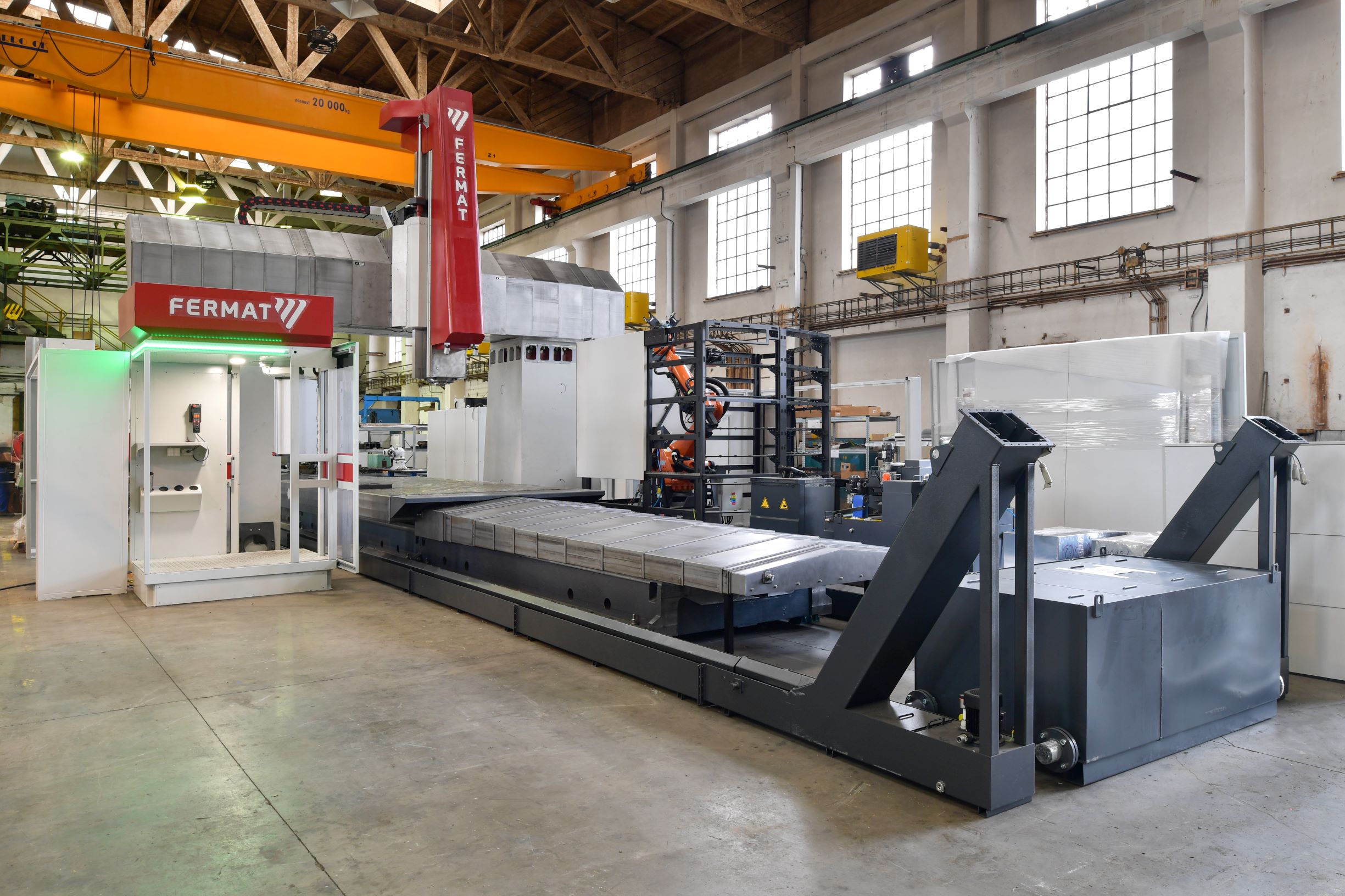

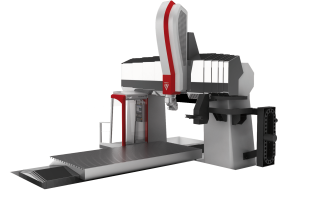

FP is a bridge-type machine with movable table, adjustable according to the dimensions of the workpiece. Machine with a milling headstock, ram travel up to 61 in / 1 550 mm. Great variety o optional accessories and milling head.

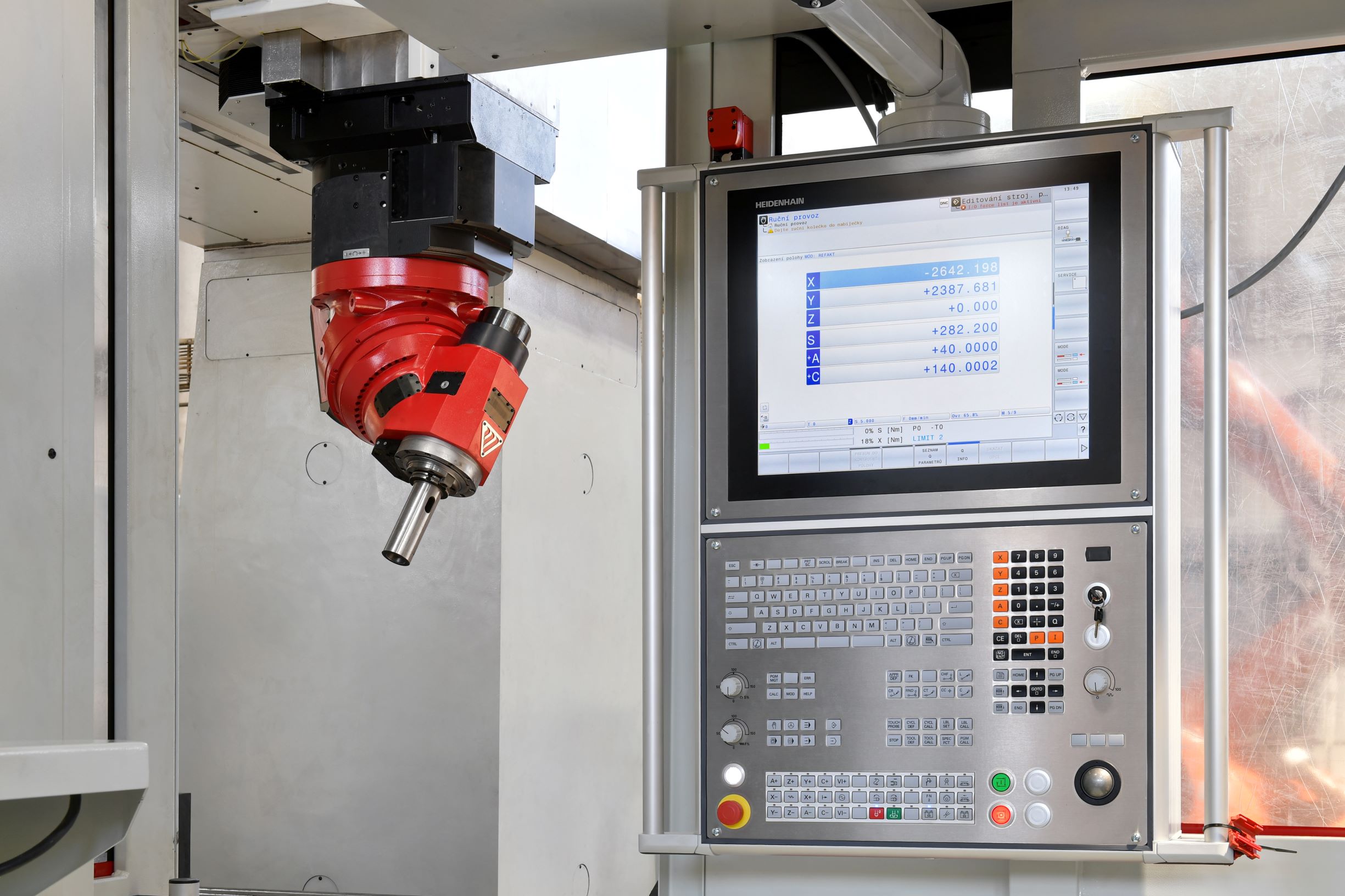

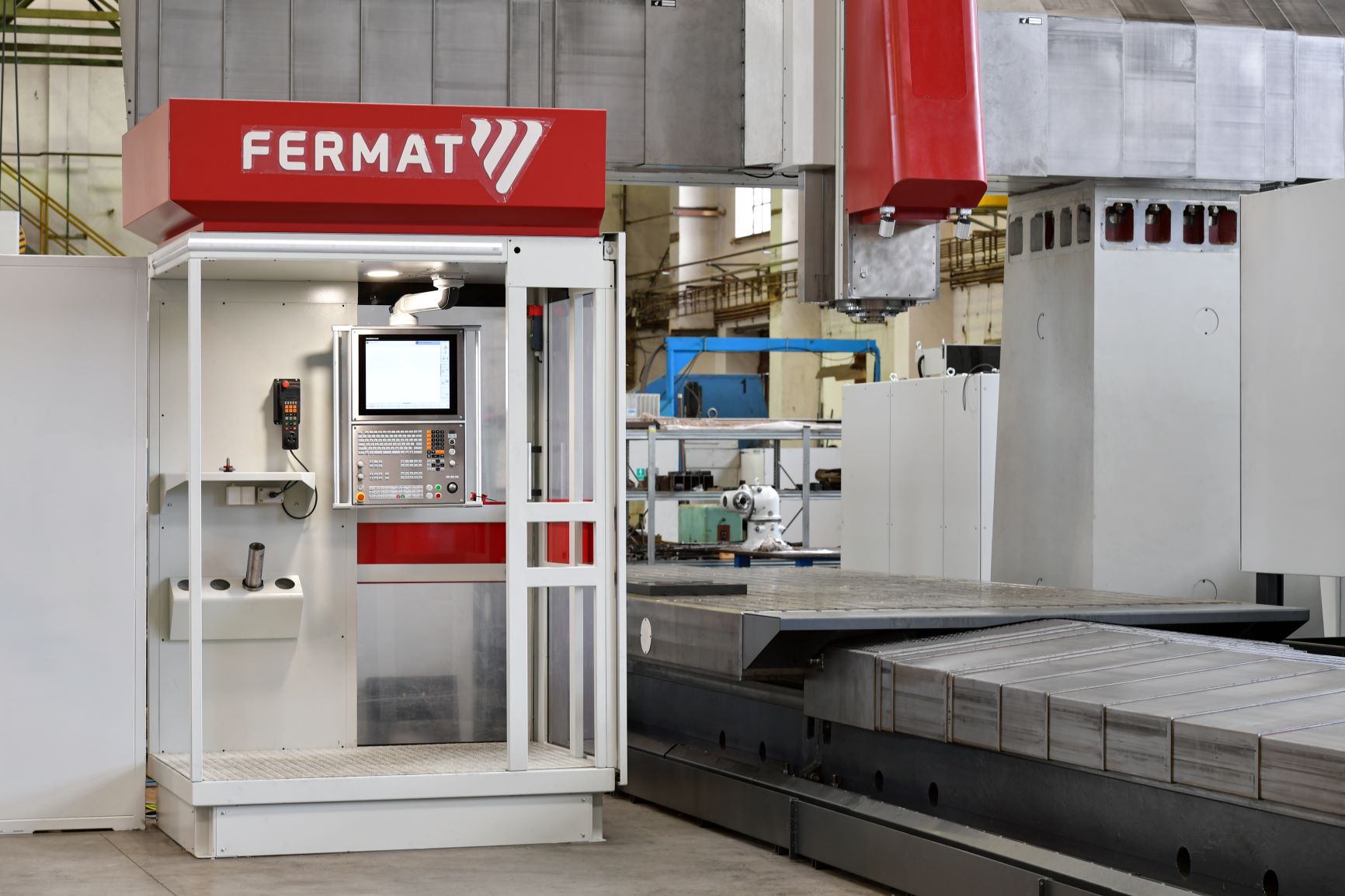

Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
|
|
units |
FP
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
| Spindle Speed (max.) | rpm |
5 000 / 6 000
|
| Max. Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
57.7/80.5; 71.1/14.5
|
| kW |
43/60; 53/77.9
|
|
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm |
917/1 274; 1 591/2 338
|

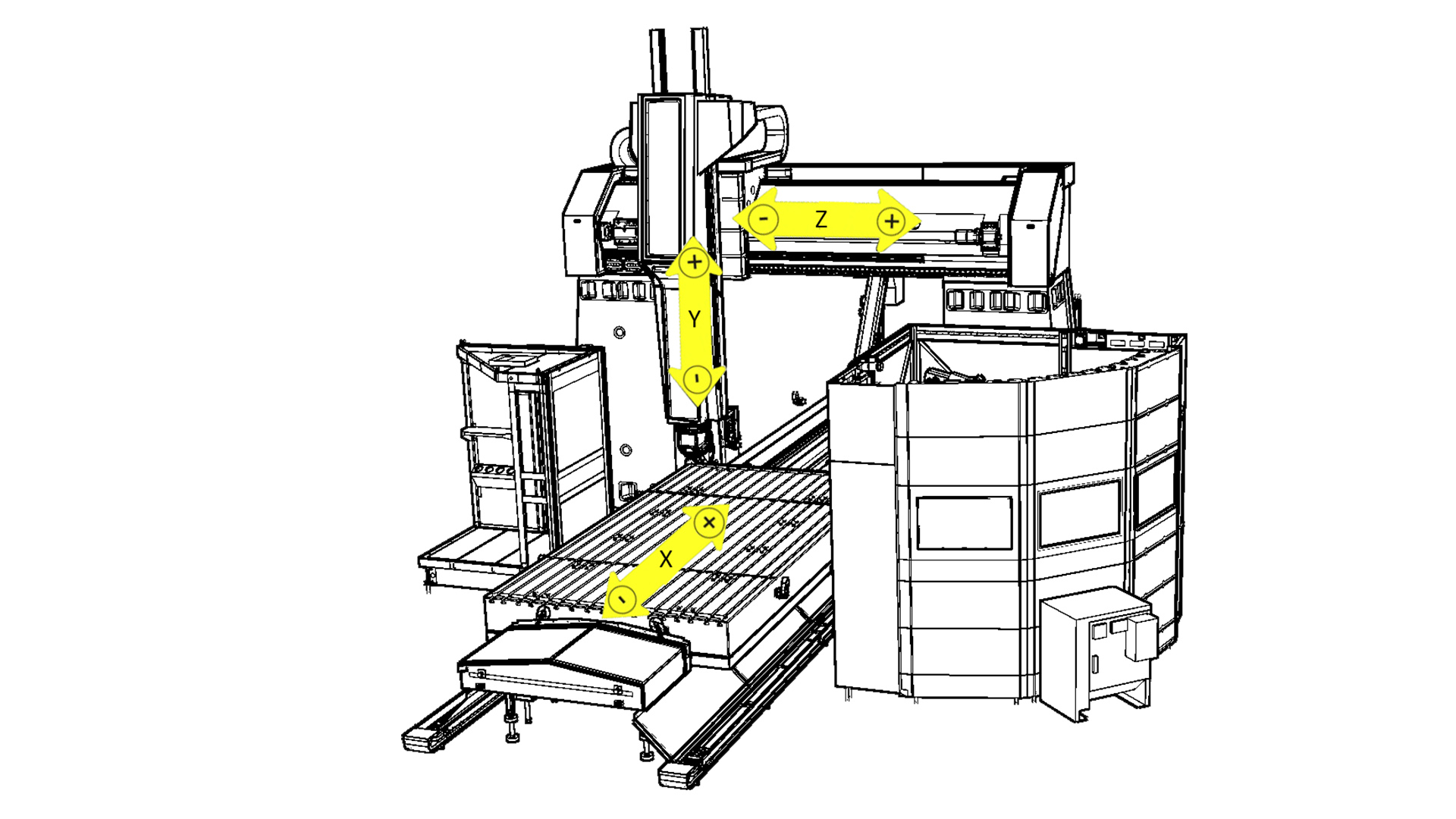

| X-Axis Travel of Table | in |
177 / 216 / 255 / 334
|
| mm |
4 500 / 5 500 / 6 500 / 8 500
|
|
| Y-Axis Horizontal Travel of Headstock | in |
141 / 161 / 181
|
| mm |
3 600 / 4 100 / 4 600
|
|
| Z-Axis Vertical Travel of Ram | in |
61
|
| mm |
1 550
|
|

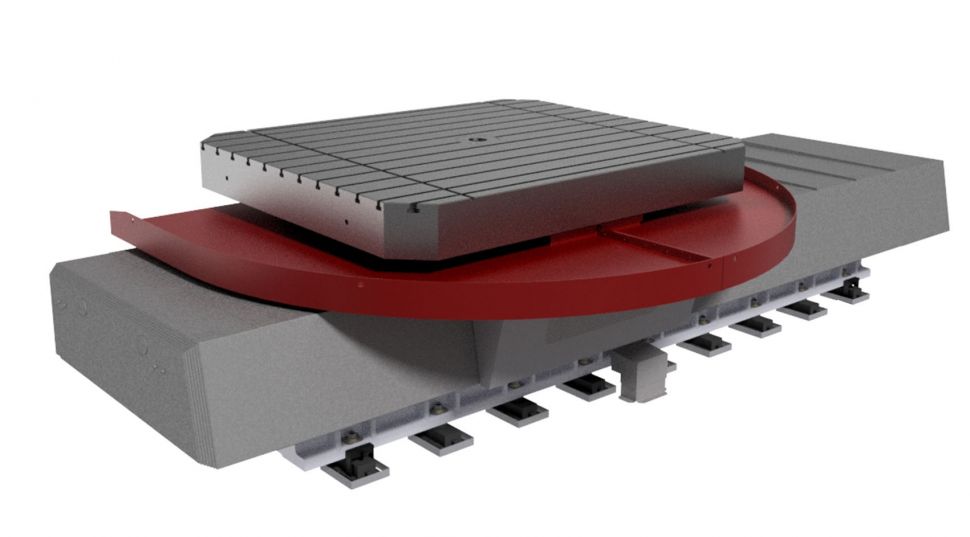

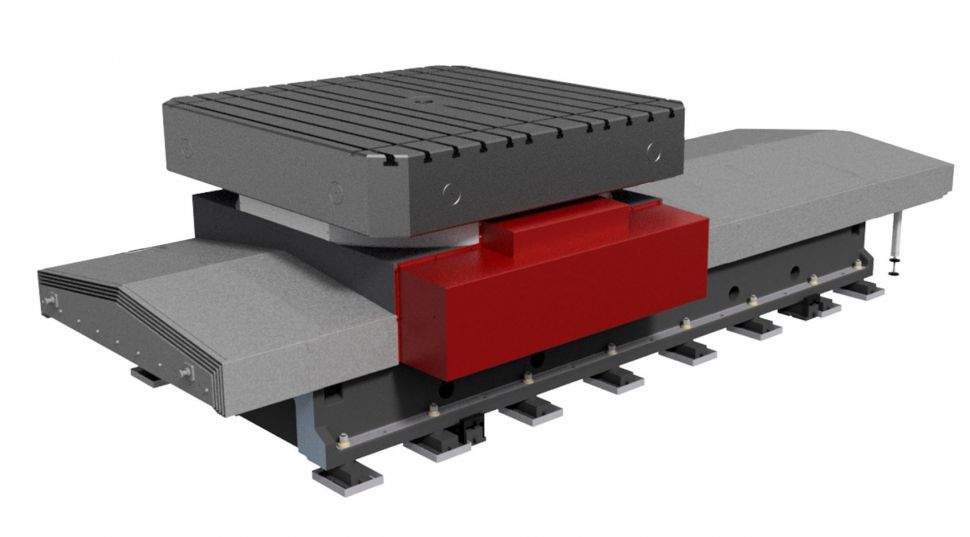

| Table Plate Dimensions | in |
157.5 / 196.9 / 236.2 / 315 x 78.7 / 98.4 / 118.1
|
| mm | 4 000 / 5 000 / 6 000/ 8 000 x 2 000 / 2 500 / 3 000 | |
| Table Load Capacity | lbs |
55 116
|
| kg |
25000
|
|
| Rapid Feed X, Y | in/min |
984.3, 590.6
|
| mm/min |
25 000, 15 000
|
|
| Rapid Feed Z | in/min |
787.4
|
| mm/min |
20 000
|
