Bridge/Gantry-type machines with movable gantry or table, and with a wide range of accessories.

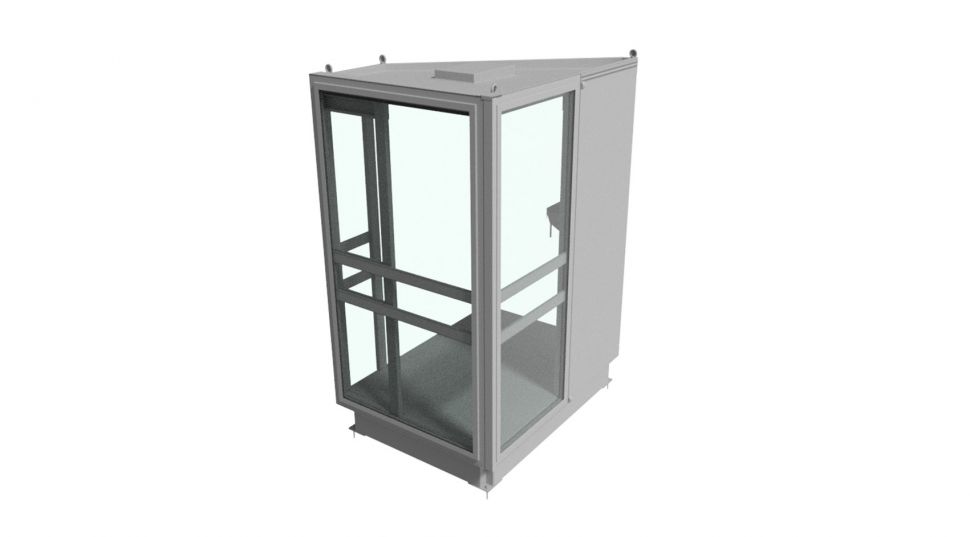

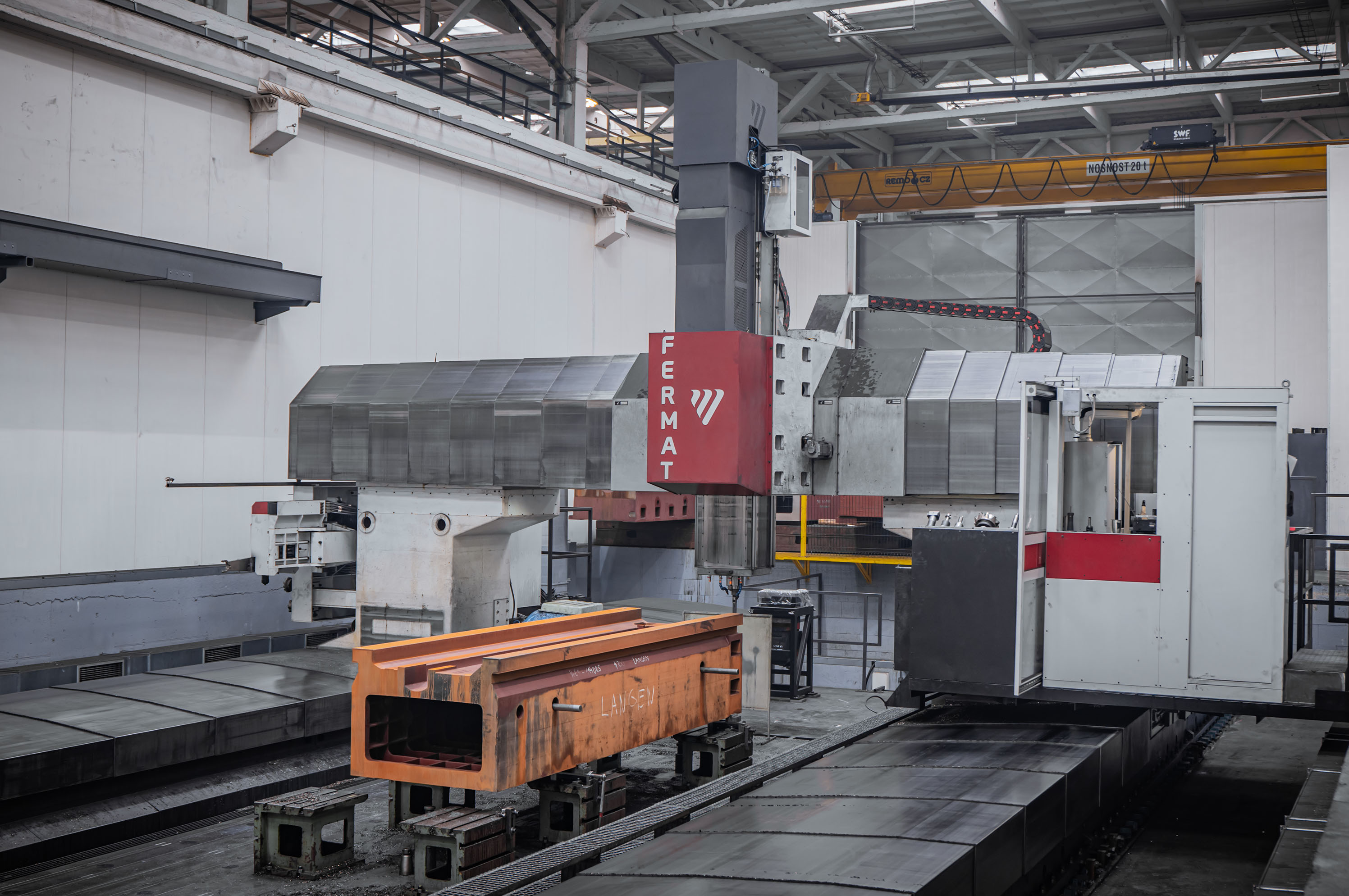

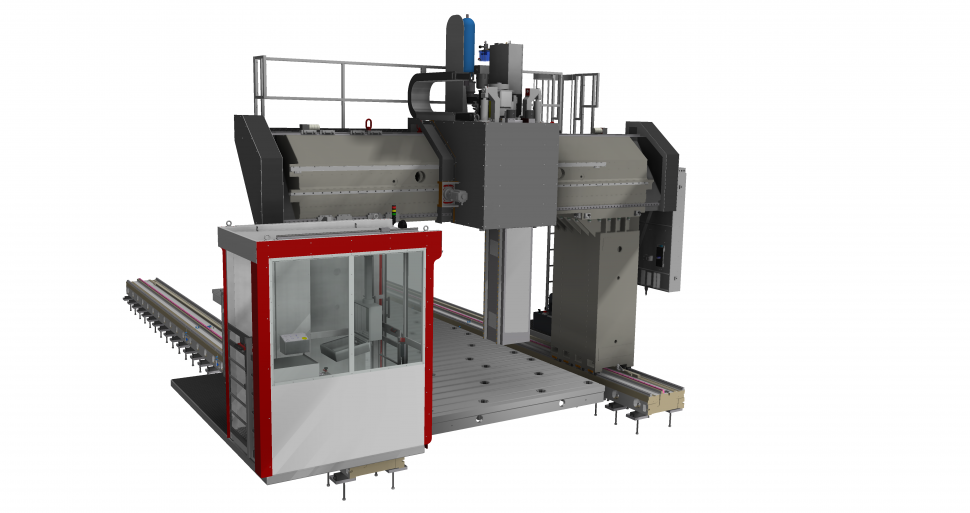

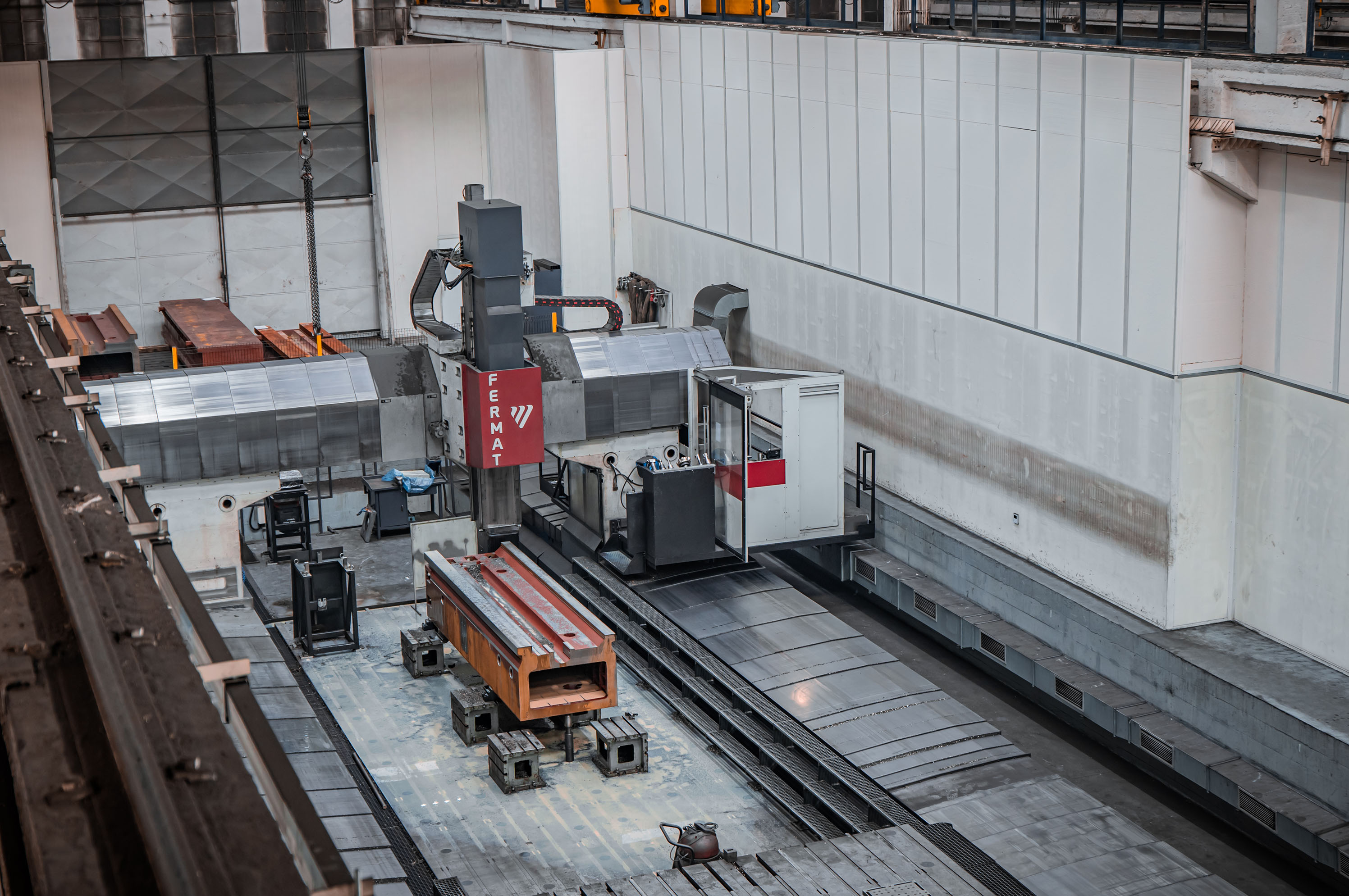

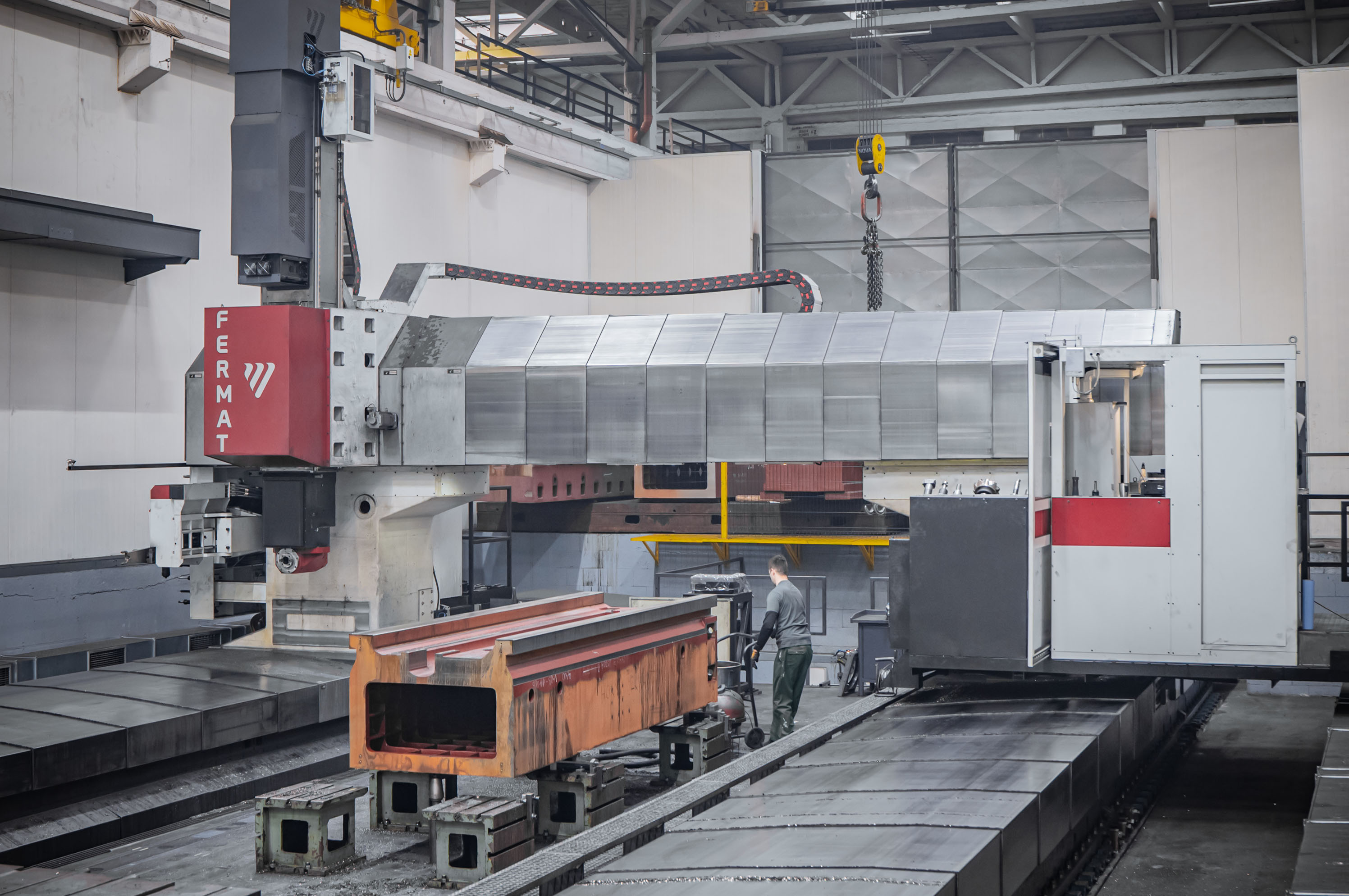

Gantry Heavy is a machine designed for machining workpieces on one set-up. The unique spindle verified by its use on floor-type horizontal mills features a 39.4 in / 1 000 mm extension in the W-axis. Ram stroke up to 63 in / 1 600 mm. Machine is equipped with floor plates. Great variety of optional accessories and milling heads.
Multifunctional machine - drilling, milling, turning, grinding and laser-hardening.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
|
|
units |
Gantry Heavy
|
| Spindle Diameter | in |
6.3
|
| mm |
160
|
|
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
|
| Spindle Speed (max.) | rpm |
2 500
|
| Max. Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
99/122
|
| kW |
74/91
|
|
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm |
3 349 / 4 120
|
| X-Axis Travel of Columns | in |
393 - 1 968
|
| mm |
10 000 - 50 000
|
|
| Y-Axis Travel of Headstock | in |
240
|
| mm |
6 100
|
|
| Z-Axis Travel of Ram | in |
63
|
| mm |
1 600
|
|
| Floor Plate Width | in |
157.5
|
| mm |
4 000
|
|
| Rapid Feed X, Y | in/min |
787.4, 787,4
|
| mm/min |
20 000, 20 000
|
|
| Rapid Feed Z | in/min |
393.7
|
| mm/min |
10 000
|
