Rotary Table T25/50/60

ROTARY TABLES, APCS AND FLOOR PLATES

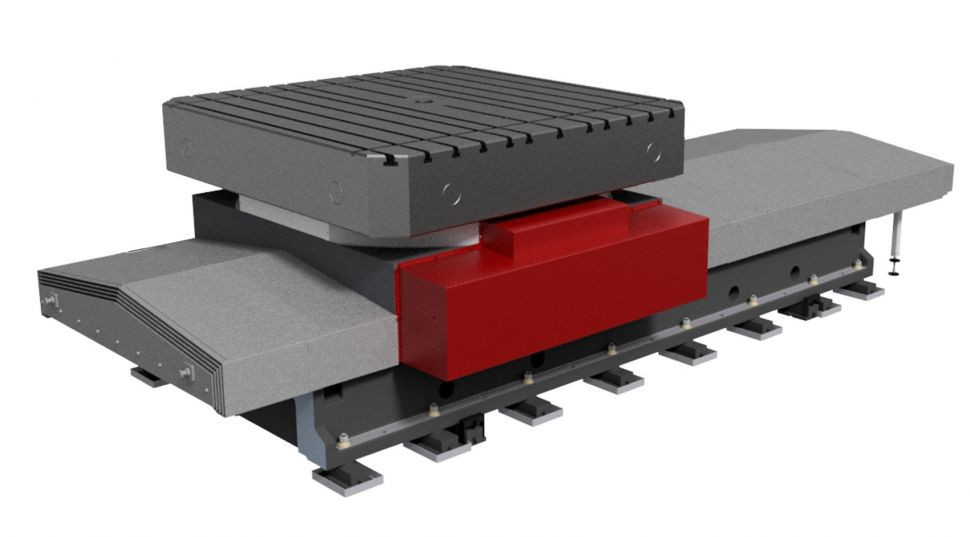

Rotary Table T25/50/60 - Machine image

All the tables have outstanding positioning precision (4 arc sec. 0.0004 in / 39.4 in | 0.010 mm / 1 000 mm radius). There is no slip-stick during the positioning of the table.

Due to simple design and assembled components, FERMAT tables require minimum maintenance and adjustments during their lifetime.


The rotary table consists of bed, slide, and rotary clamping plate. The slide enables the rotary clamping plate to move in the X-axis. The clamping plate is fitted onto a cross roller bearing that secures high load capacity with minimal passive resistance. In order to achieve precision in work pieces, the rotary table is hydraulically clamped at 4 points to avoid rotation during the working process.


The table is governed by the control system of the machine, and there is a rotary encoder in the center of the table that facilitates the automatic positioning in increments of 0.001°. As a standard, the rotary table operates as a continuous 4th axis.


. The rotary table consists of bed, slide, and rotary clamping plate. The slide enables the rotary clamping plate to move in the V-axis. The clamping plate is fi tted onto a cross roller bearing that secures high load capacity with minimal passive resistance. In order to achieve precision in work pieces, the rotary table is hydraulically clamped at 8 points to avoid rotation during the working process. The table is governed by the control system of the machine, and there is a rotary encoder in the centre of the table that facilitates the automatic positioning in increments of 0.001°. As a standard, the rotary table operates as a continuous 4th axis.



unit
T25
T50
T60
Clamping Plate Size in
78.7 x 78.7, 78.7 x 98.4, 78,7 x 118, 98.4 x 137.8, 98.4 x 98.4, 98.4 x 118, 118 x 118, 118 x 137.8, 137.8 x 137.8, 98.4 x 196.9 (T25)
118 x 118, 157.5 x 157.5
mm
2 000 x 2 000, 2 000 x 2 500, 2 000 x 3 000, 2 500 x 3 500, 2 500 x 2 500, 2 500 x 3 000, 3 000 x 3 000, 3 000 x 3 500, 3 500 x 3 500, 2 500 x 5 000 (T25)
3 000 x 3 000, 4 000 x 4 000
Max. Table Loadlbs
11 340
22 680
27 216
kg
25 000
50 000
60 000
Table Travelin
47 - 374
78.7 - 315
mm
1 200 - 9 500
2 000 - 8 000
T-Slots Size
28H8 / 28H12 (opt. 36H8 /36H12)
Operational Travel V-Axisin/min
0.04 - 591
0.04 -394
mm/min
1 -15 000
1 - 10 000
Operation Travel B-Axisrpm
0 - 1,7
