Rotary Table T10

ROTARY TABLES, APCS AND FLOOR PLATES

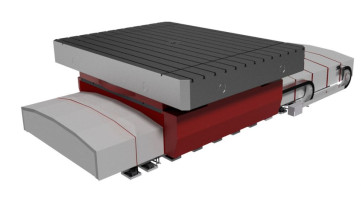

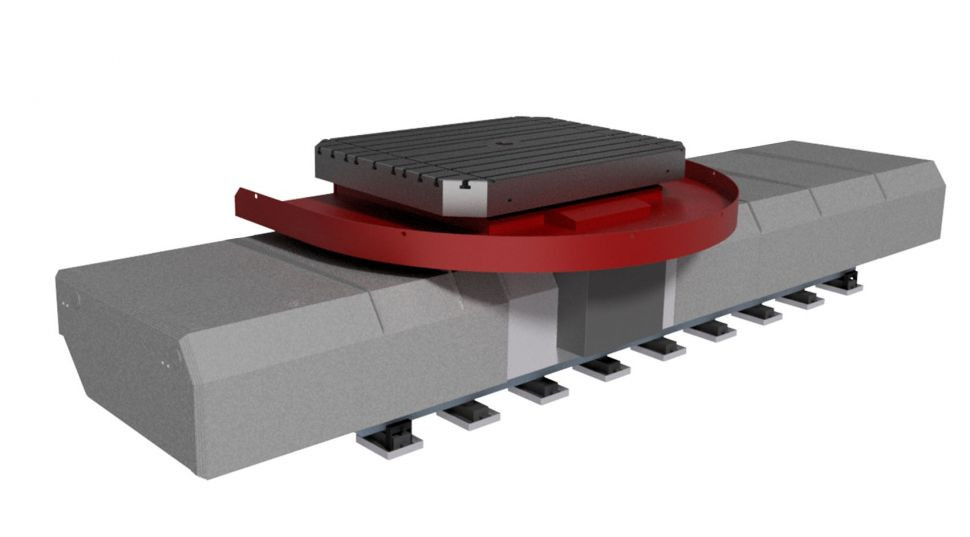

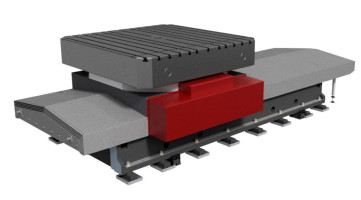

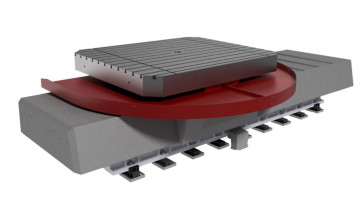

Rotary Table T10 - Machine image

All the tables have outstanding positioning precision (4 arc sec. 0.0004 in / 39.4 in | 0.010 mm / 1 000 mm radius). There is no slip-stick during the positioning of the table.

Due to simple design and assembled components, FERMAT tables require minimum maintenance and adjustments during their lifetime.

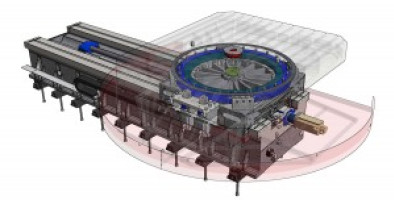

The rotary table consists of bed, slide, and rotary clamping plate. The slide enables the rotary clamping plate to move in the X-axis. The clamping plate is fitted onto a cross roller bearing that secures high load capacity with minimal passive resistance. In order to achieve precision in work pieces, the rotary table is hydraulically clamped at 4 points to avoid rotation during the working process.


The table is governed by the control system of the machine, and there is a rotary encoder in the center of the table that facilitates the automatic positioning in increments of 0.001°. As a standard, the rotary table operates as a continuous 4th axis.


unitT10
Clamping Plate Size in47.2 x 47.2, 47.2 x 55.1, 55.1 x 63, 55.1 x 70.9, 63 x 63, 63 x 70.9
mm
1 200 x 1 200, 1 200 x 1 400, 1 400 x 1 600, 1 400 x 1 800,  1 600 x 1 600, 1 600 x 1 800
Max. Table Loadlbs22 046
kg10 000
Table Travelin78,7 - 118.1
mm
2 000 - 3 000
T-Slots Size

22H8 / 22H12
Operational Travelin/min0.04 - 315
mm/min
1 - 8 000
Speed of B-axis
rpm2 (opt.10)
