Rotary Table T20

ROTARY TABLES, APCS AND FLOOR PLATES

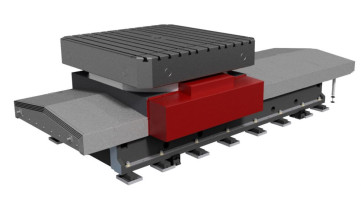

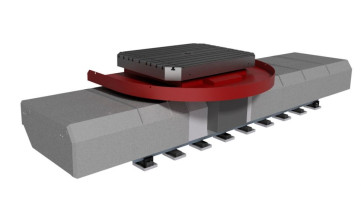

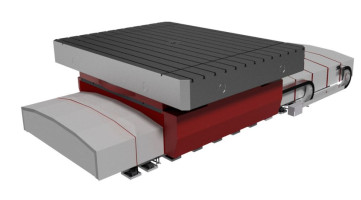

Rotary Table T20 - Machine image

All the tables have outstanding positioning precision (4 arc sec. 0.0004 in / 39.4 in | 0.010 mm / 1 000 mm radius). There is no slip-stick during the positioning of the table.

Due to simple design and assembled components, FERMAT tables require minimum maintenance and adjustments during their lifetime.

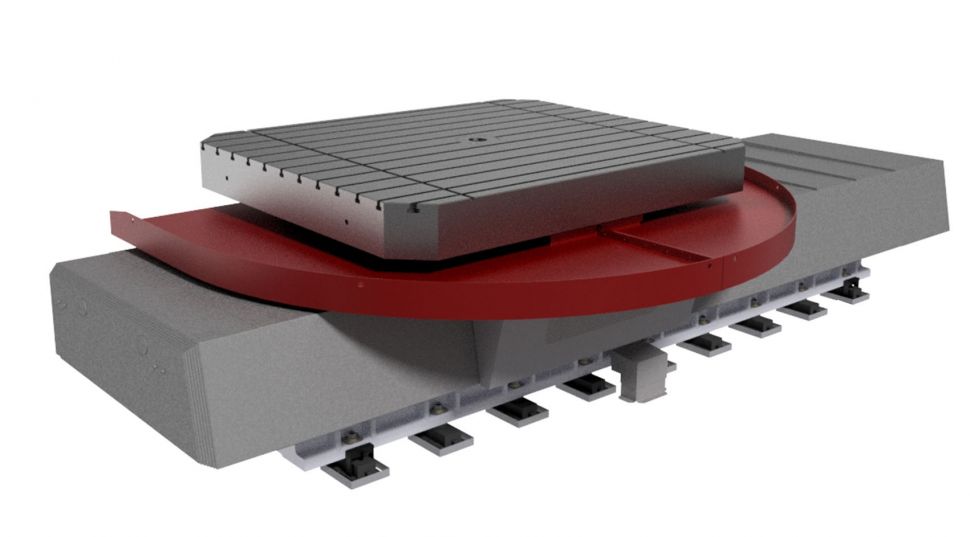

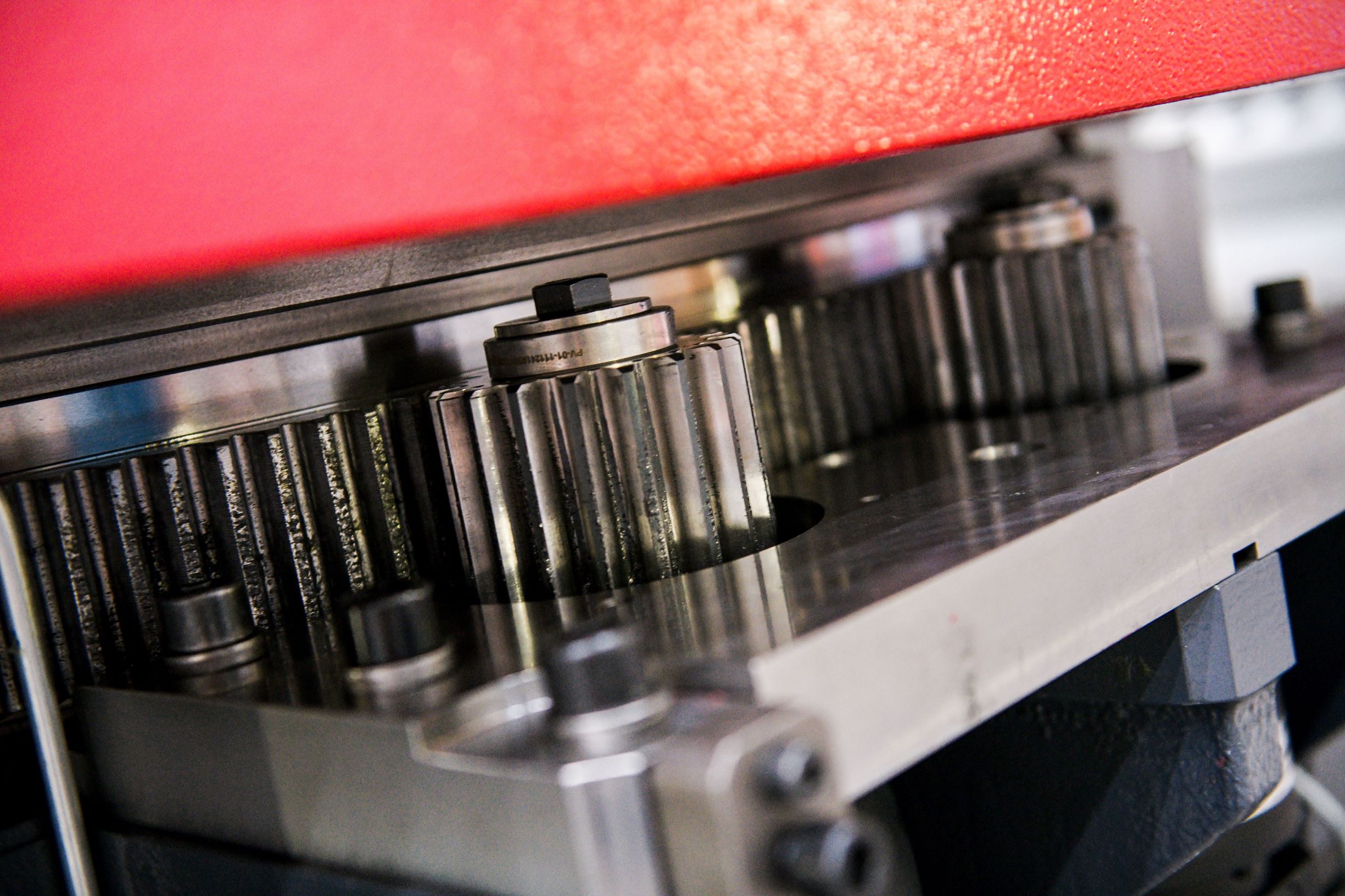

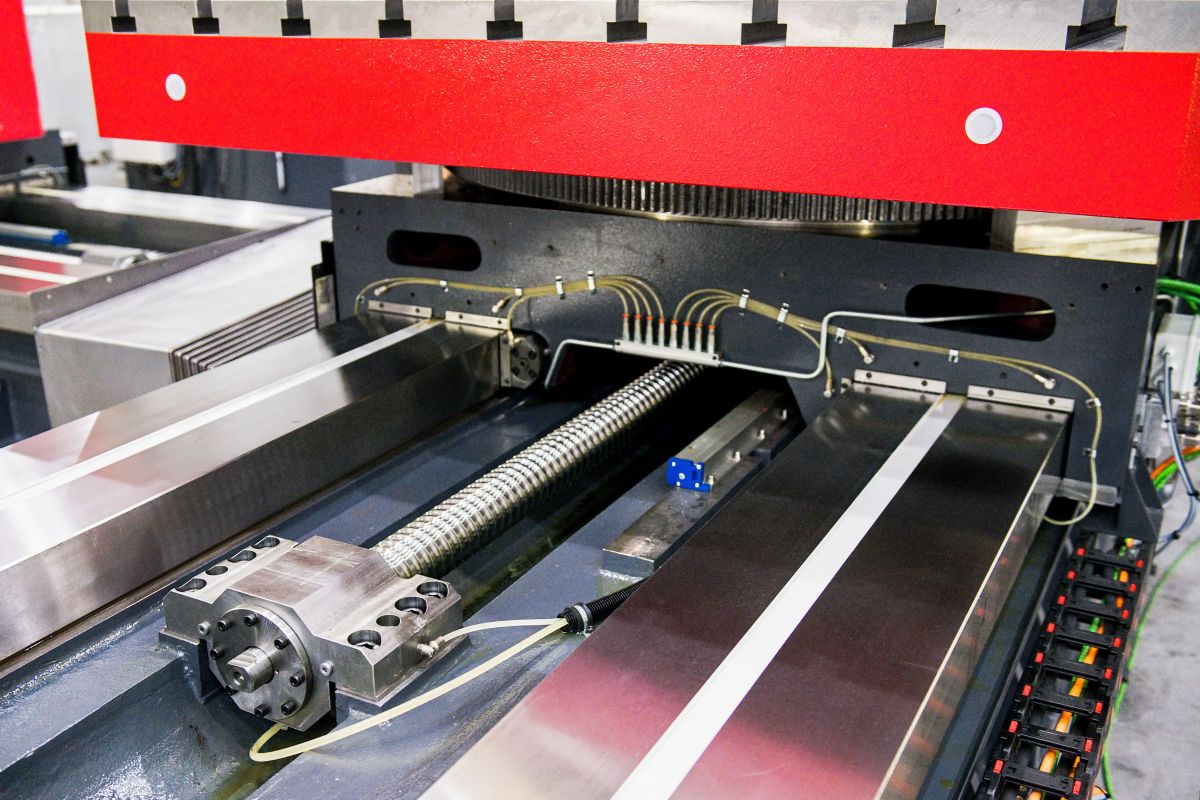

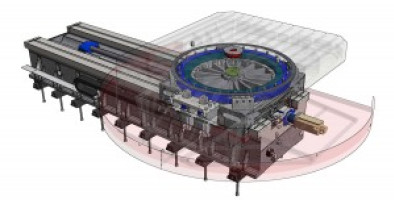

The rotary table consists of bed, slide, and rotary clamping plate. The slide enables the rotary clamping plate to move along X-axis on table-type machines and V-axis on floor-type machines. The clamping plate is fitted onto a cross roller bearing that secures high load capacity with minimal passive resistance. In order to achieve precision in work pieces, the rotary table is hydraulically clamped at 4 points to avoid rotation during the working process.


The table is governed by the control system of the machine, and there is a rotary encoder in the center of the table that facilitates the automatic positioning in increments of 0.001°. As a standard, the rotary table operates as a continuous 4th axis.



unit
T20
Clamping Plate Size
in
63 x 71, 71 x 87, 71 x 102, 79 x 95, 98 x 98, 79 x 118
mm
1 600 x 1 800, 1 800 x 2 200, 1 800 x 2 600, 2 000 x 2 400,  2 500 x 2 500, 2 000 x 3 000
Max. Table Load
lbs
44 093
kg
10 000
Table Travel
in
78,7 - 196.9
mm
2 000 - 5 000
T-Slots Size
22H8 / 22H12 (option 28H8 / 22H12)
Operational Travel V-Axis
in/min
0.04 - 472.4
mm/min
1 - 12 000
Speed of B-axis
rpm
2 (opt.5)
