Rotary Table T80/100

ROTARY TABLES, APCS AND FLOOR PLATES

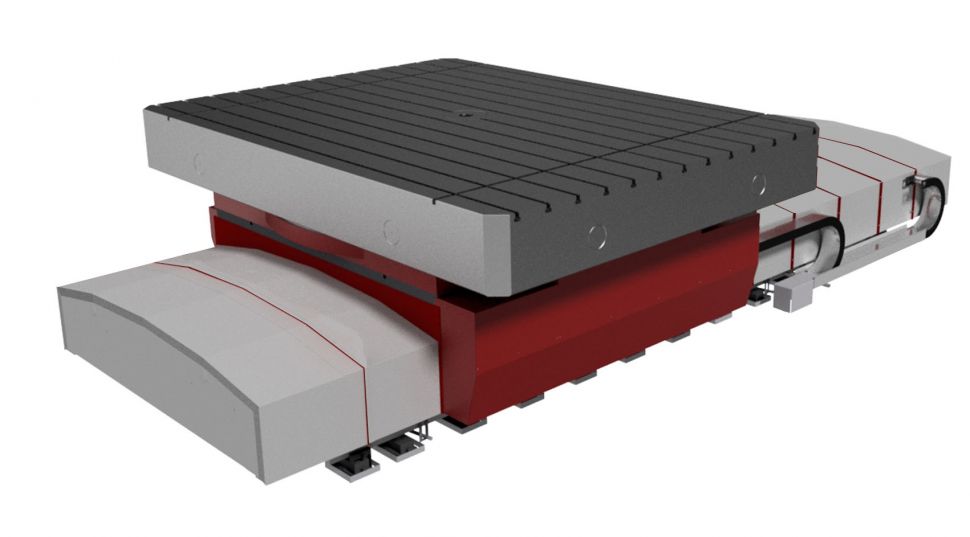

Rotary Table T80/100 - Machine image

All the tables have outstanding positioning precision (4 arc sec. 0.010 mm / 1000 mm radius). There is no slip-stick during table positioning. Due to simple design and assembled components, FERMAT tables require minimum maintenance and adjustments during their lifetime.

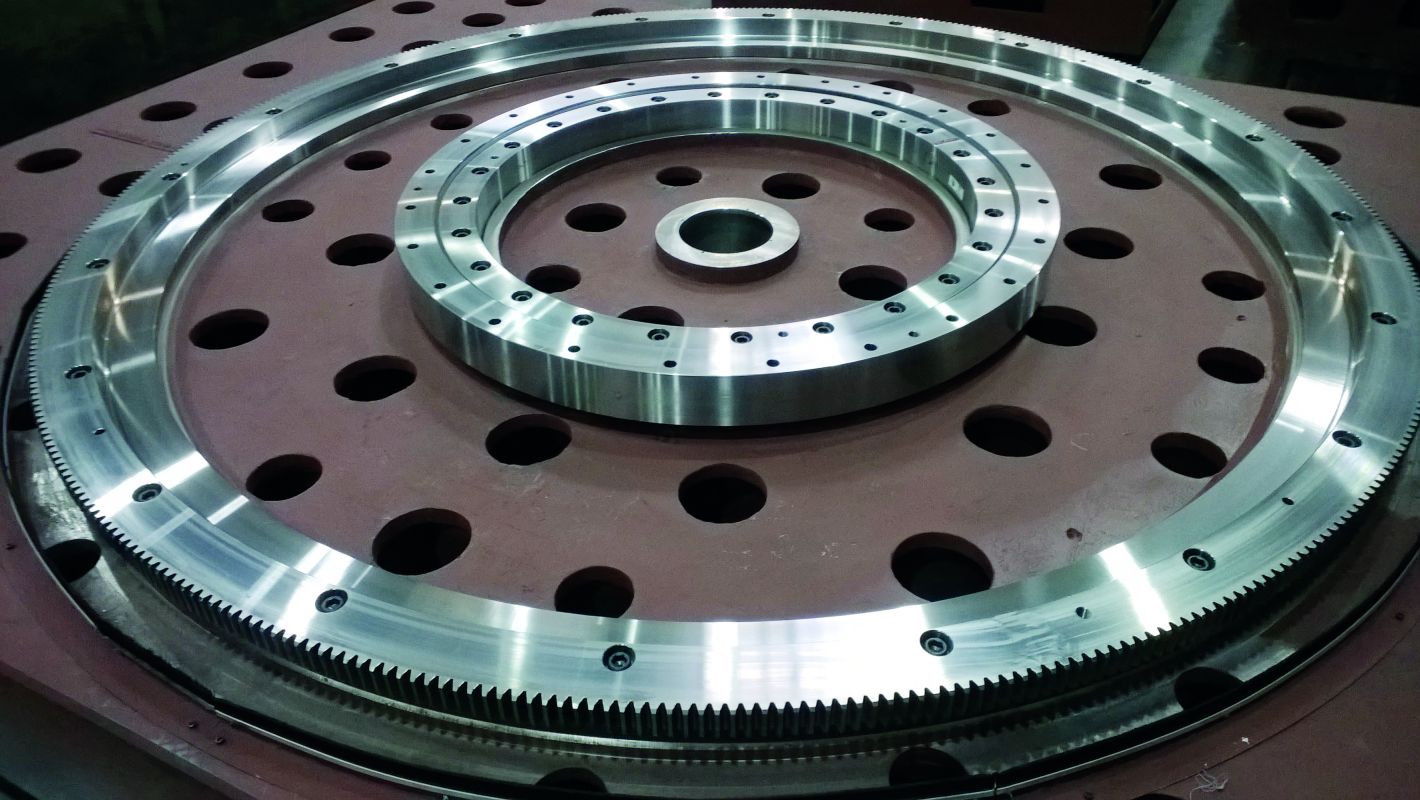

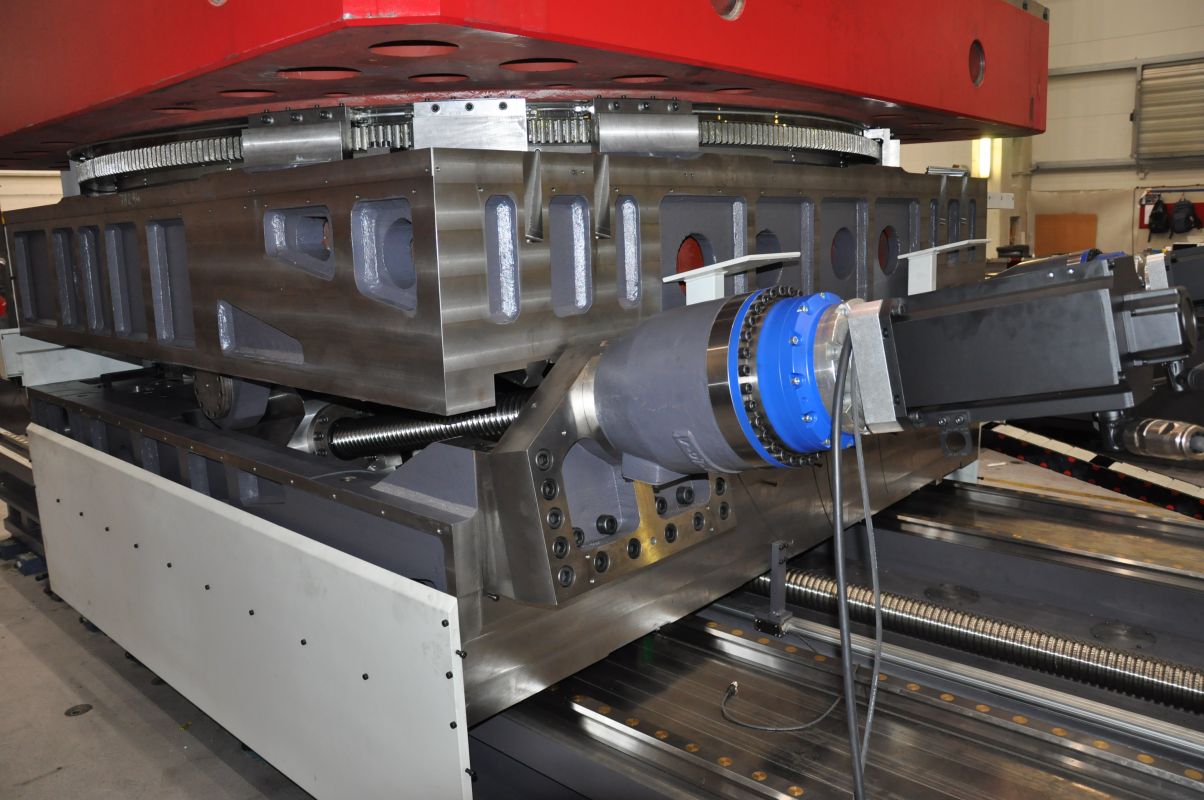

The rotary table consists of bed, slide, and rotary clamping plate. The slide enables the rotary clamping plate to move along X-axis on table-type machines and V-axis on floor-type machines. The clamping plate is fitted onto a cross roller bearing that secures high load capacity with minimal passive resistance. In order to achieve precision in work pieces, the rotary table is hydraulically clamped at 12 points to avoid rotation during the working process.

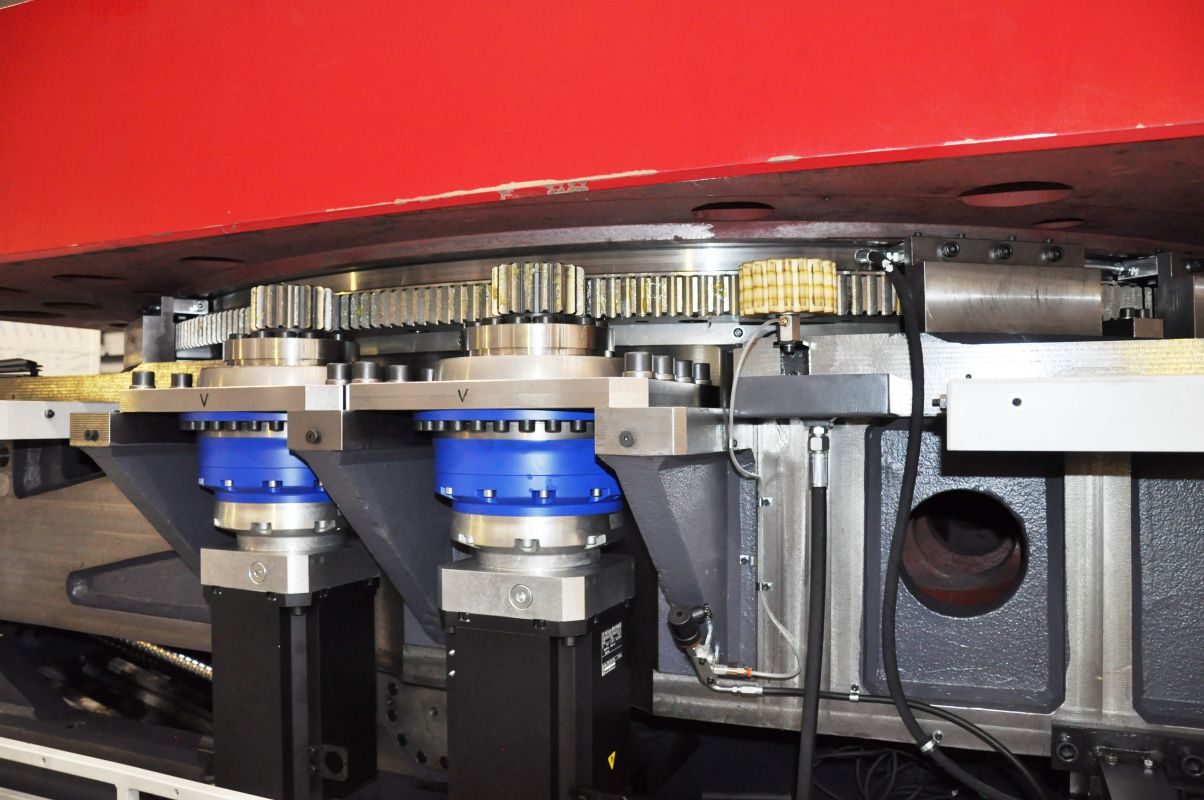

The table is governed by the control system of the machine, and there is a rotary encoder in the centre of the table that facilitates the automatic positioning in increments of 0.001°. As a standard, the rotary table operates as a continuous 4th axis.



unit
T80 / T100
Clamping Plate Size
in
118 x 118, 118 x 138, 118 x 158, 158 x 158
mm

3 000 x 3 000, 3 000 x 3 500, 3 000 x 4 000, 4 000 x 4 000

Max. Table Load
lbs
176 370, 220 462
kg
80 000, 100 000
Table Travel
in
79 - 315
mm
2 000 - 8 000
T-Slots Size
28H8 / 28H12 (opt. 36H8 /36H12)
Operation Travel V-Axis
in/min
0.04 - 394
mm/min
1 - 10 000
Speed of B-Axis
rpm
0 - 1.7
