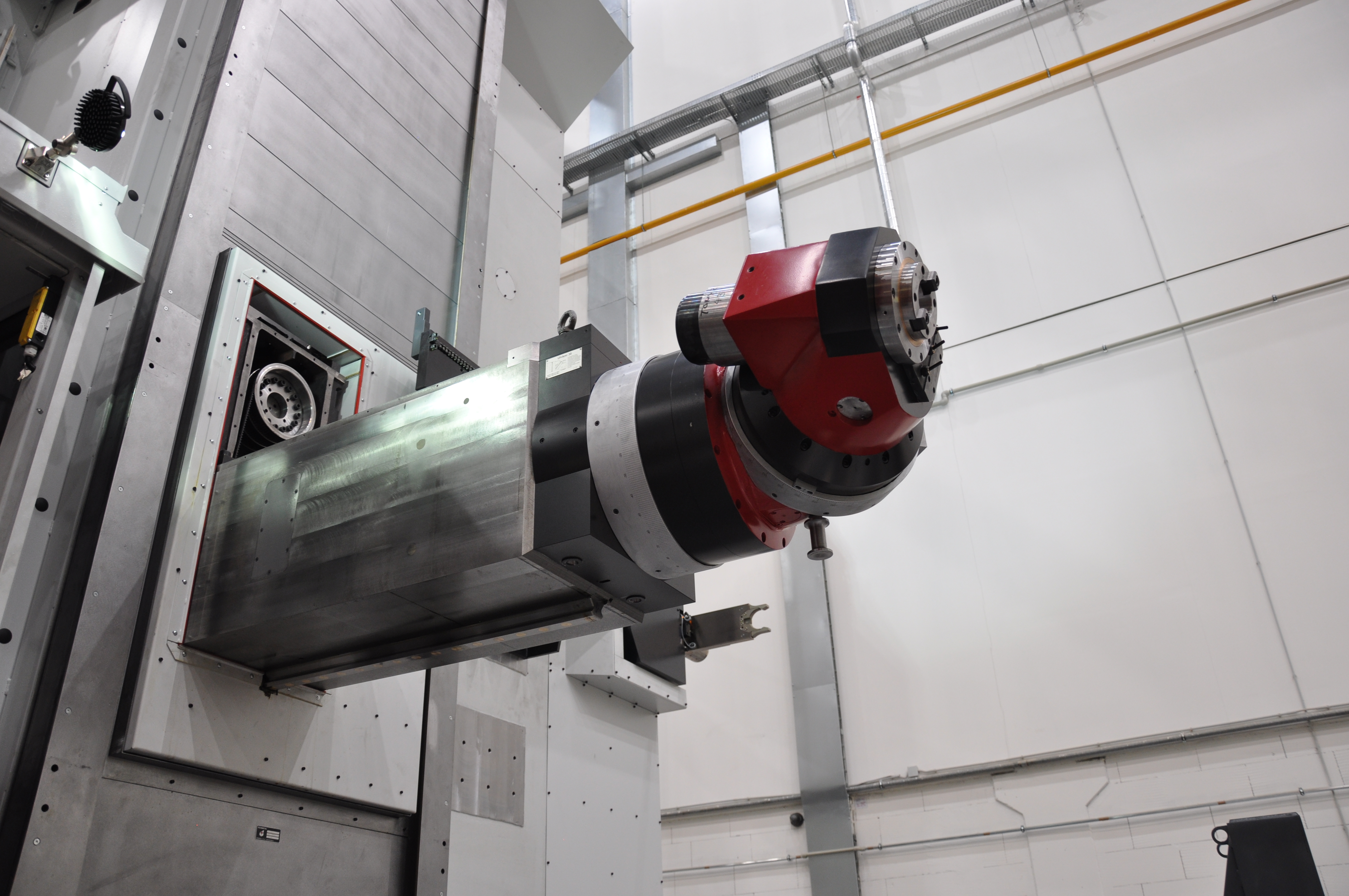

UHA 1° Universal Automatic Milling Head
Fully automatic - attachment to the headstock, tool clamping, positioning, lubrication.
|
|
units | UHA 1° |
| Revolutions | rpm | 10 - 3 000 (opt. 4 000)
|
| Max. Torque | Nm | 1 600 |
| Spindle Taper | - | SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100 |
| Clamping Force of Tool | kN | 20±15% |
| Stall Torque in Axis A | Nm | 3 800 |
| Stall Torque in Axis C | Nm | 6 500 |
| Indexing | ° | +/- 180, by 0.001
|
| External Tool Coolant
|
|
standard
|
| Coolant Trough Spindle
|
|
standard
|
| Lubrication
|
|
automatic, grease |
