Horizontal table-type boring machines with cross table movement are designed for machining of small and medium-size workpieces of up to 50 tons / 110231 lbs.

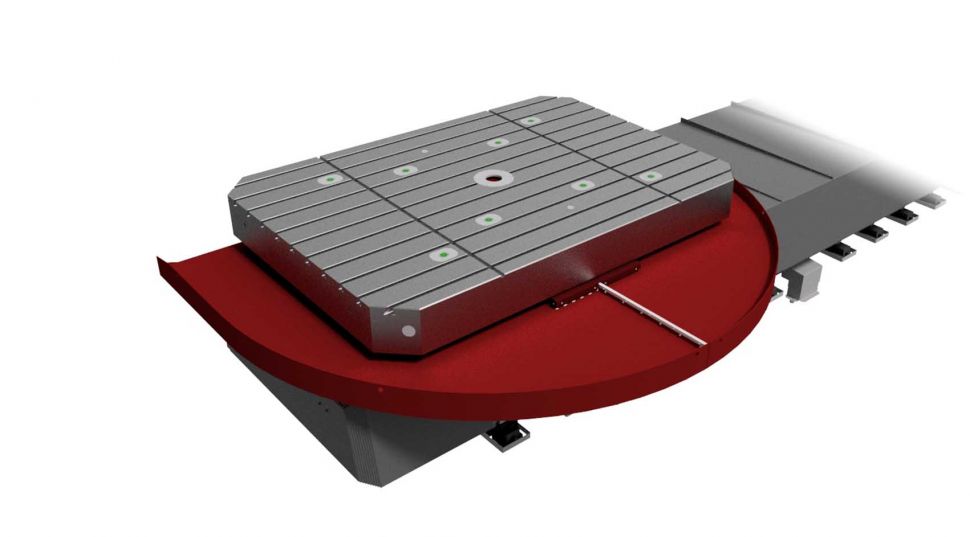

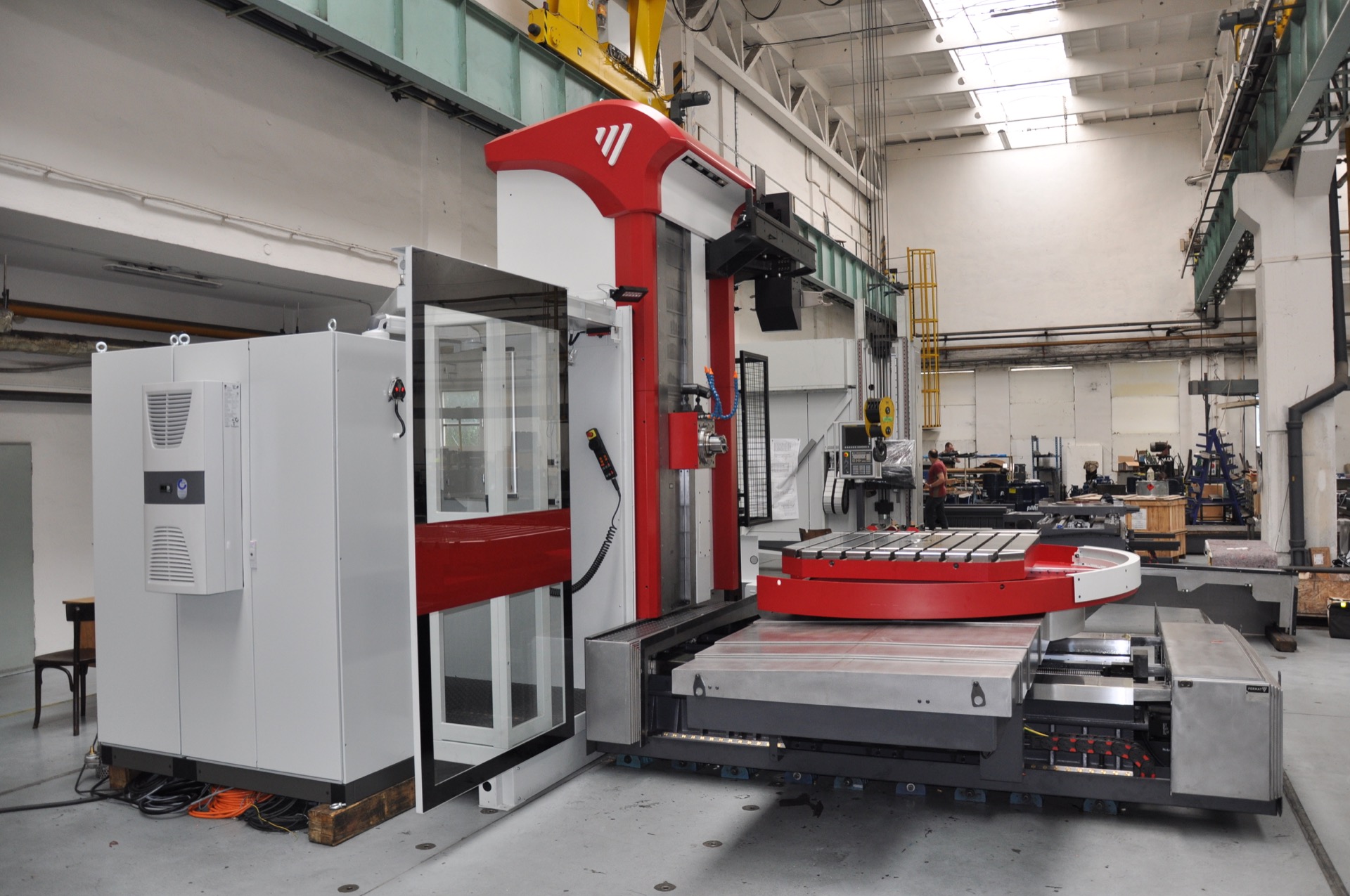

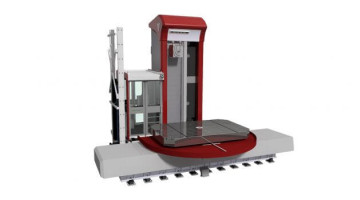

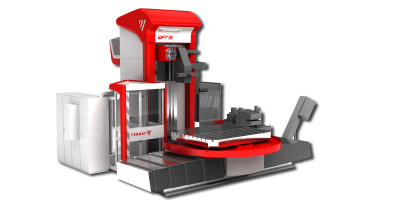

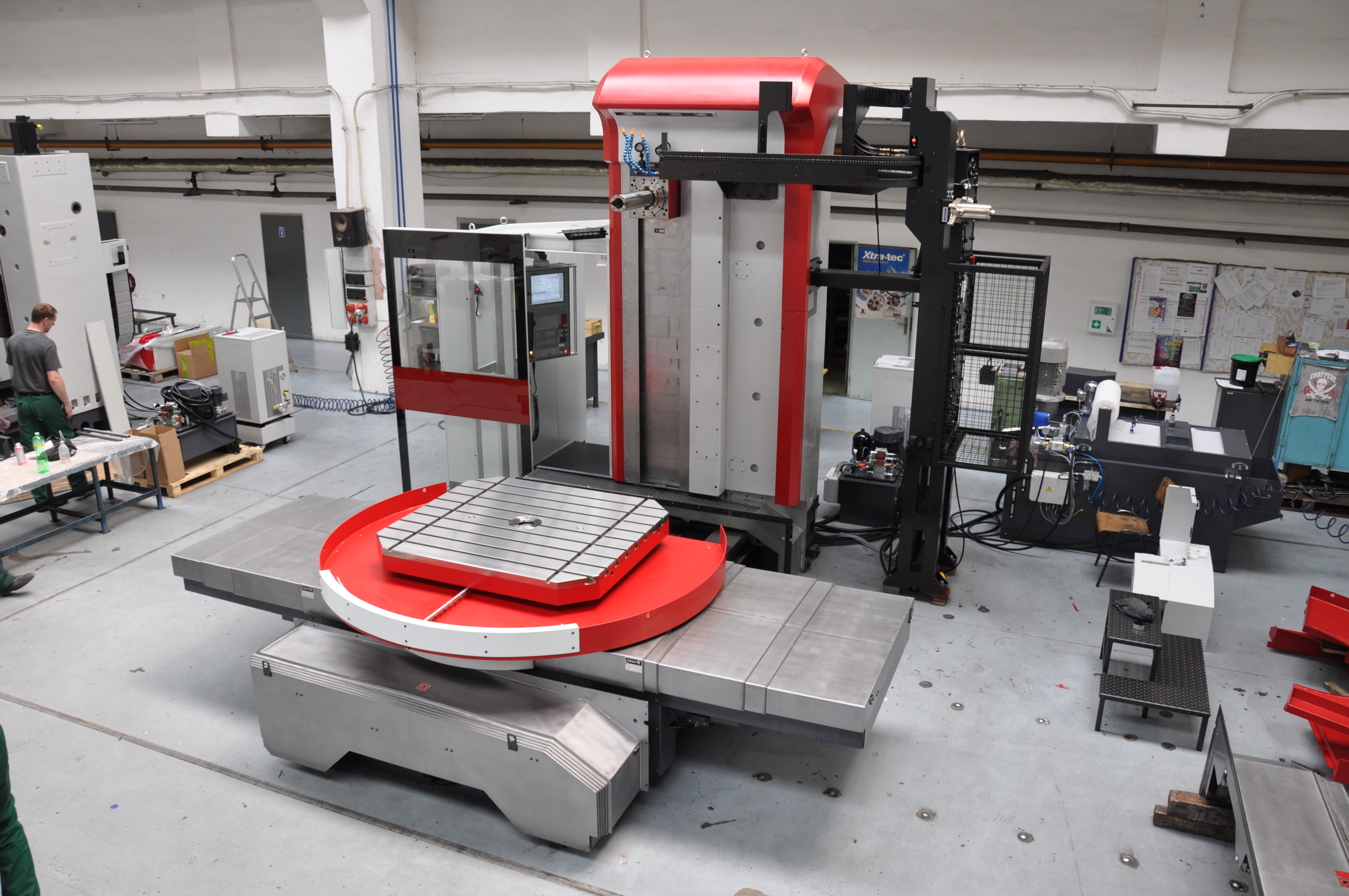

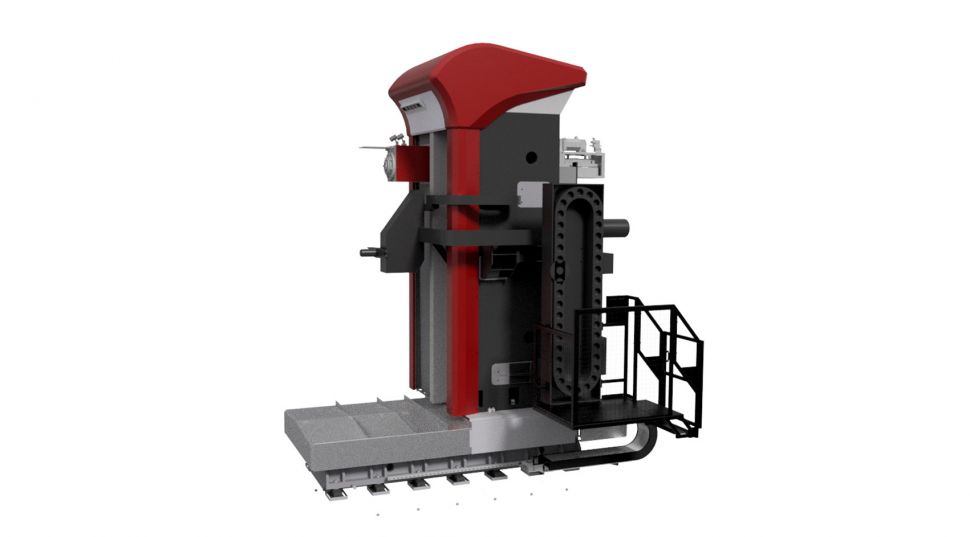

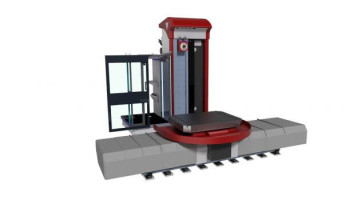

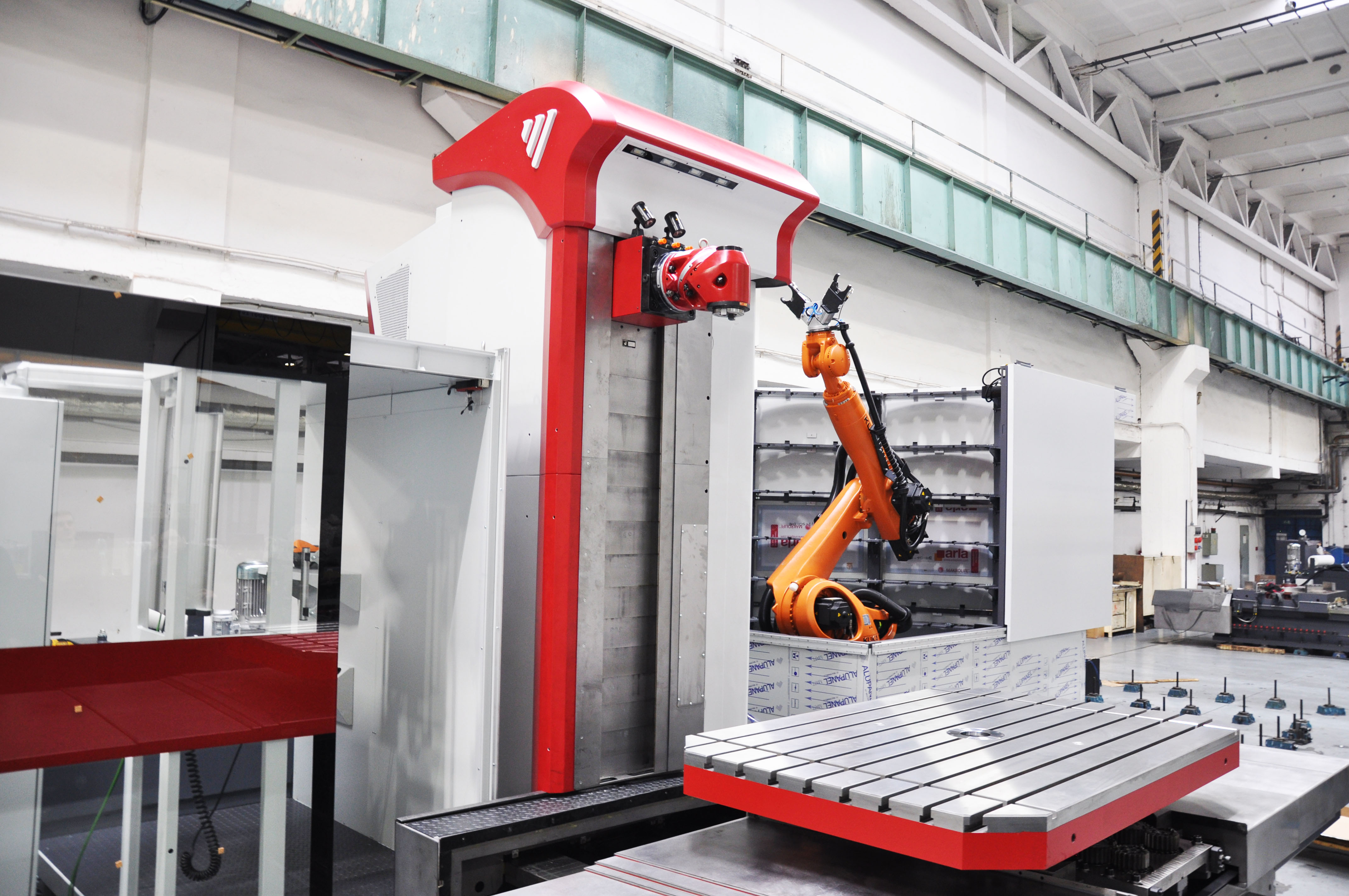

WFC is a continuously controlled table-type machine with cross table and stationary column, ideal for machining pieces of up to 11 023 lbs / 5 tons. Spindle diameter 3.9 in / 100 mm or 4.3 in / 110 mm, spindle travel 28.7 in / 730 mm. CNC rotary table with two servomotor. Possible in version with linear guideways (WFC 10 L). Machine suitable for serial production and shops with limited floor space.
Economical, modern and compact solution.

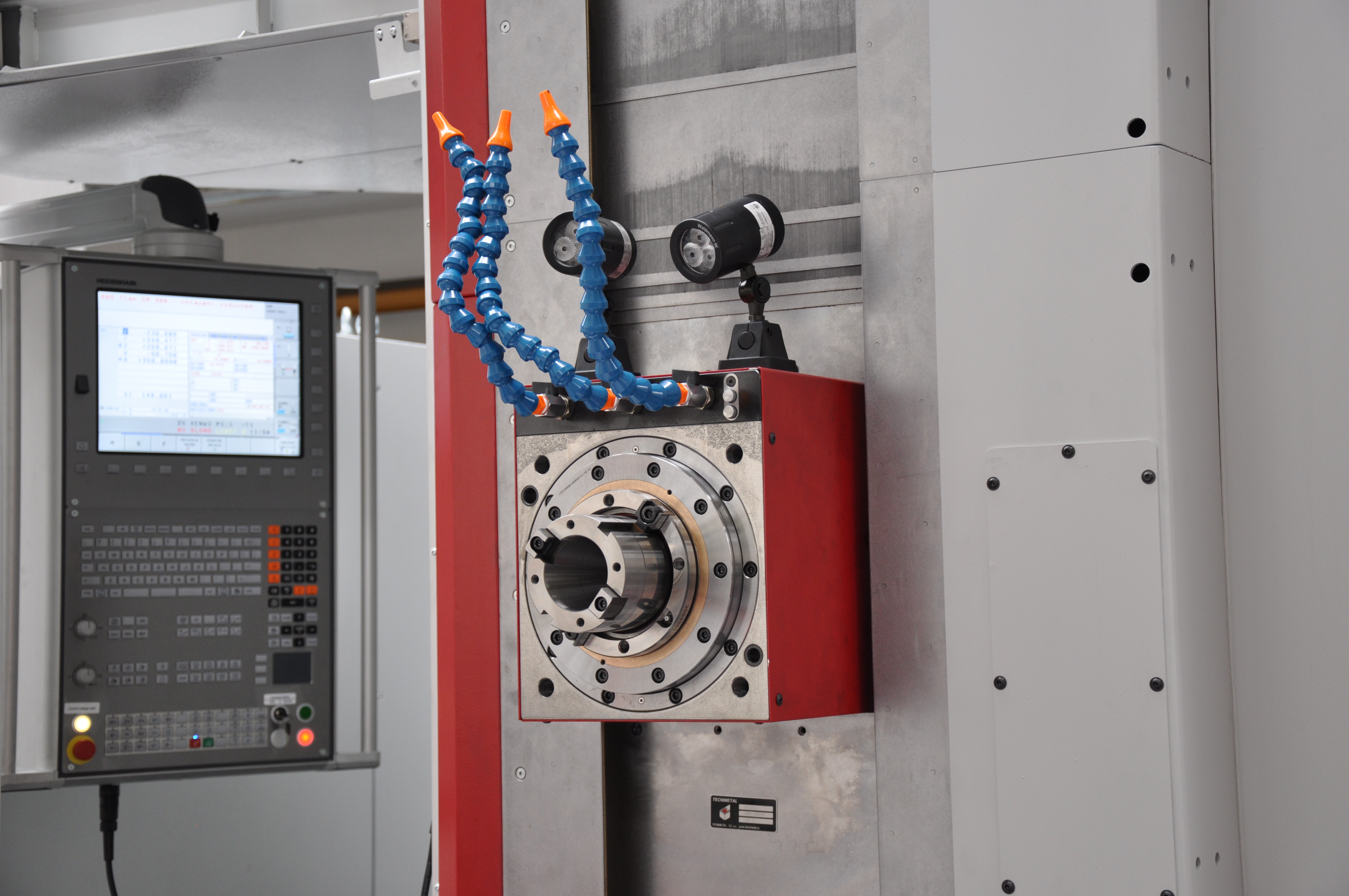

Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
*L = Linear Guideways
|
|
units |
WFC 10/11
|

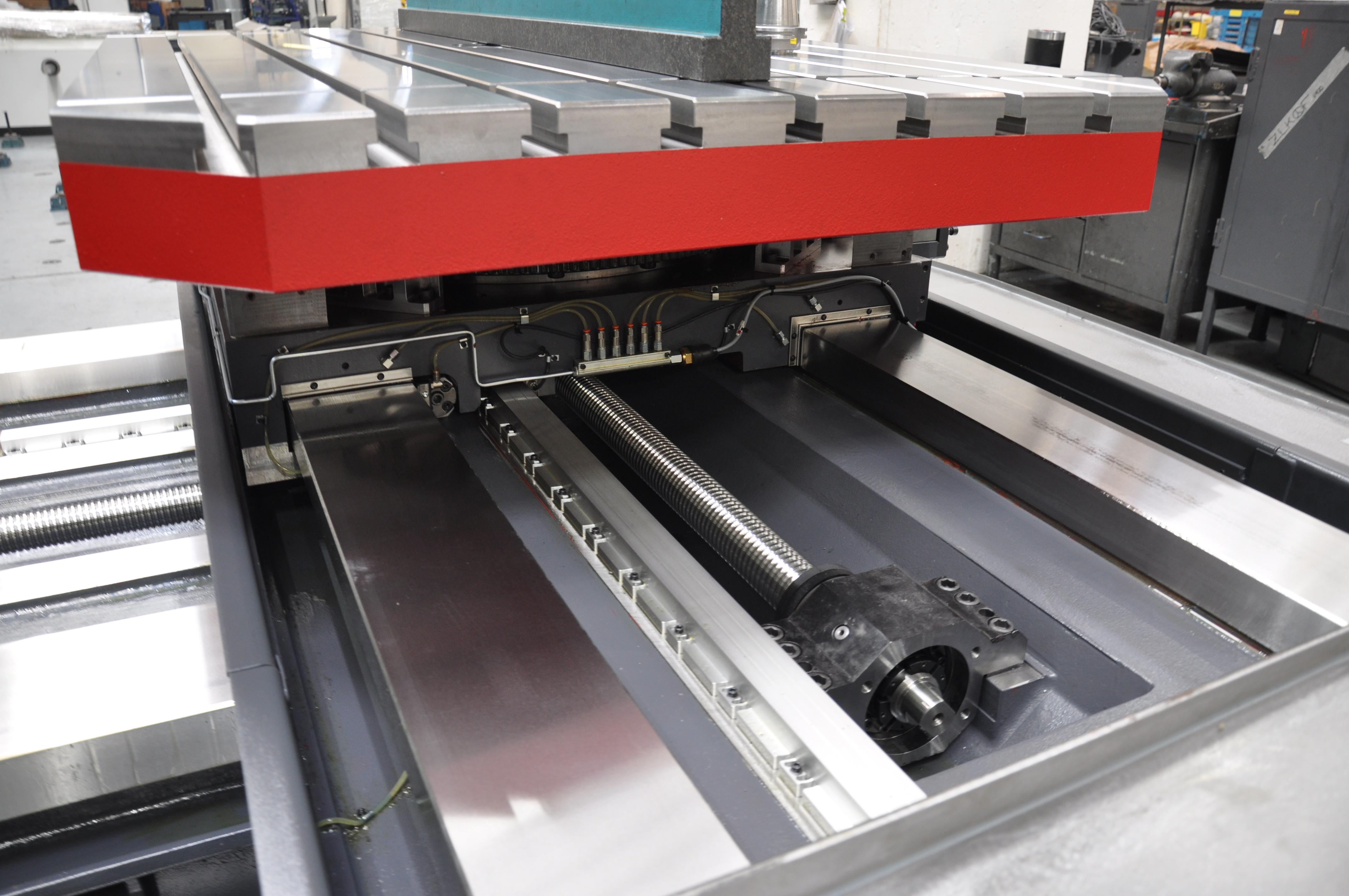

WFC 10 L
|
| Spindle Diameter | in |
3.9 / 4.3
|
|
| mm |
100 / 110
|
||
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI)
|
|
| Spindle Speed (max.) | rpm |
4 000 (opt. 5 000)
|
|
| Main Power Heidenhain or SIEMENS CNC (S1/S6) | hp |
26.1/39.2; 40.2/61
|
|
| kW |
19,5/29,3; 30/45,5
|
||
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) | Nm |
951 / 1 426; 1 416 / 2 124
|
|
| Main Power FANUC CNC (S1/S3) | hp |
29.5/34.8; 40.2/49.6
|
|
| kW |
22/26; 30/37
|
||
| Max. Torque FANUC CNC (S1/S3) | Nm |
823/971; 1 370/1 692
|
|

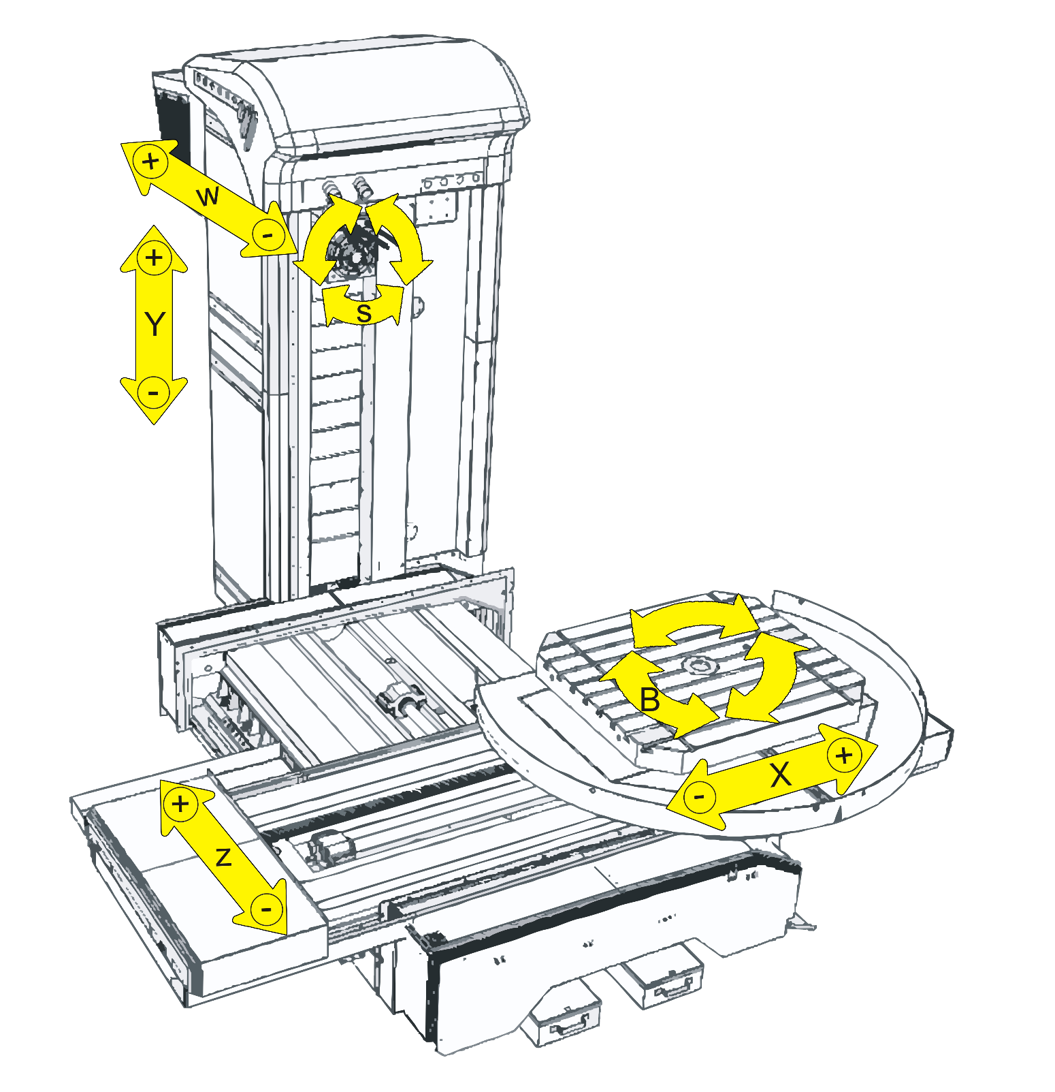

| X-Axis Cross Travel of Table | in |
49.2 / 78.7
|
|
| mm |
1 250 / 2 000
|
||
| Y-Axis Vertical Travel of Headstock | in |
49.2 / 66.9 / 78.7
|
|
| mm |
1 250 / 1 700 / 2 000
|
||
| Z-Axis Longitudinal Travel of Table | in |
49.2
|
59
|
| mm |
1 250
|
1 500
|
|
| W-Axis Spindle Travel | in |
28.7
|
|
| mm |
730
|
||
| Rapid Feed X, Y, Z | in/min |
314.9
|
1 181
|
| mm/min |
8 000
|
30 000
|
|
| Rapid Feed W | in/min |
314.9
|
472.4
|
| mm/min |
8 000
|
12 000 |
|
| Rapid Feed B | rpm |
2 (opt. 5)
|
10
|
| Max. Table Load | lbs |
11 023
|
|
| kg |
5 000
|
||
| Table Size | in |
39.3 x 44 / 49.2 x 55.1 / 49.2 x 70.9 / 55.1 x 62.9 / 55.1 x 70.9
|
|
| mm |
1000 x 1120 / 1250 x 1400 / 1250 x 1800 /
1400 x 1600 / 1 400 x 1 800 |
||
