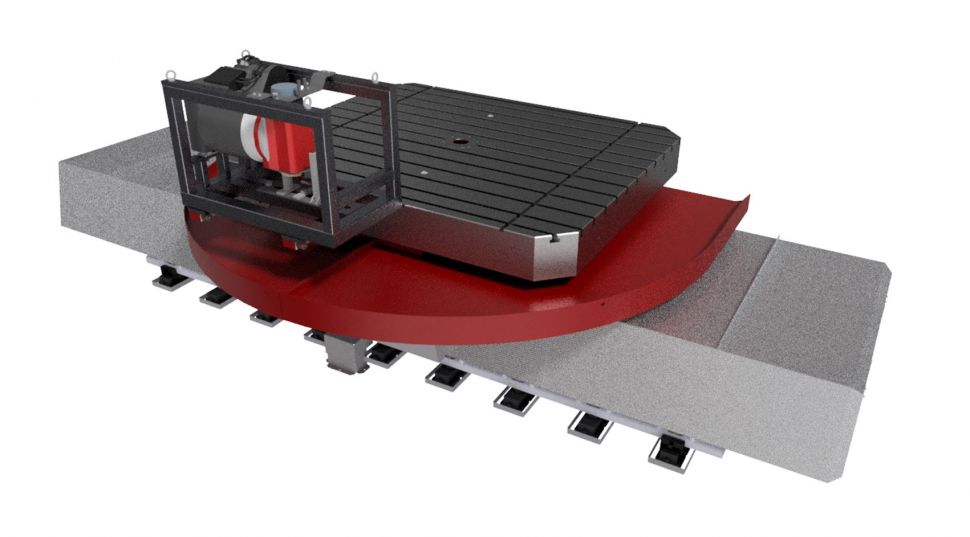

Horizontal table-type boring machines with cross table movement are designed for machining of small and medium-size workpieces of up to 50 tons / 110231 lbs.

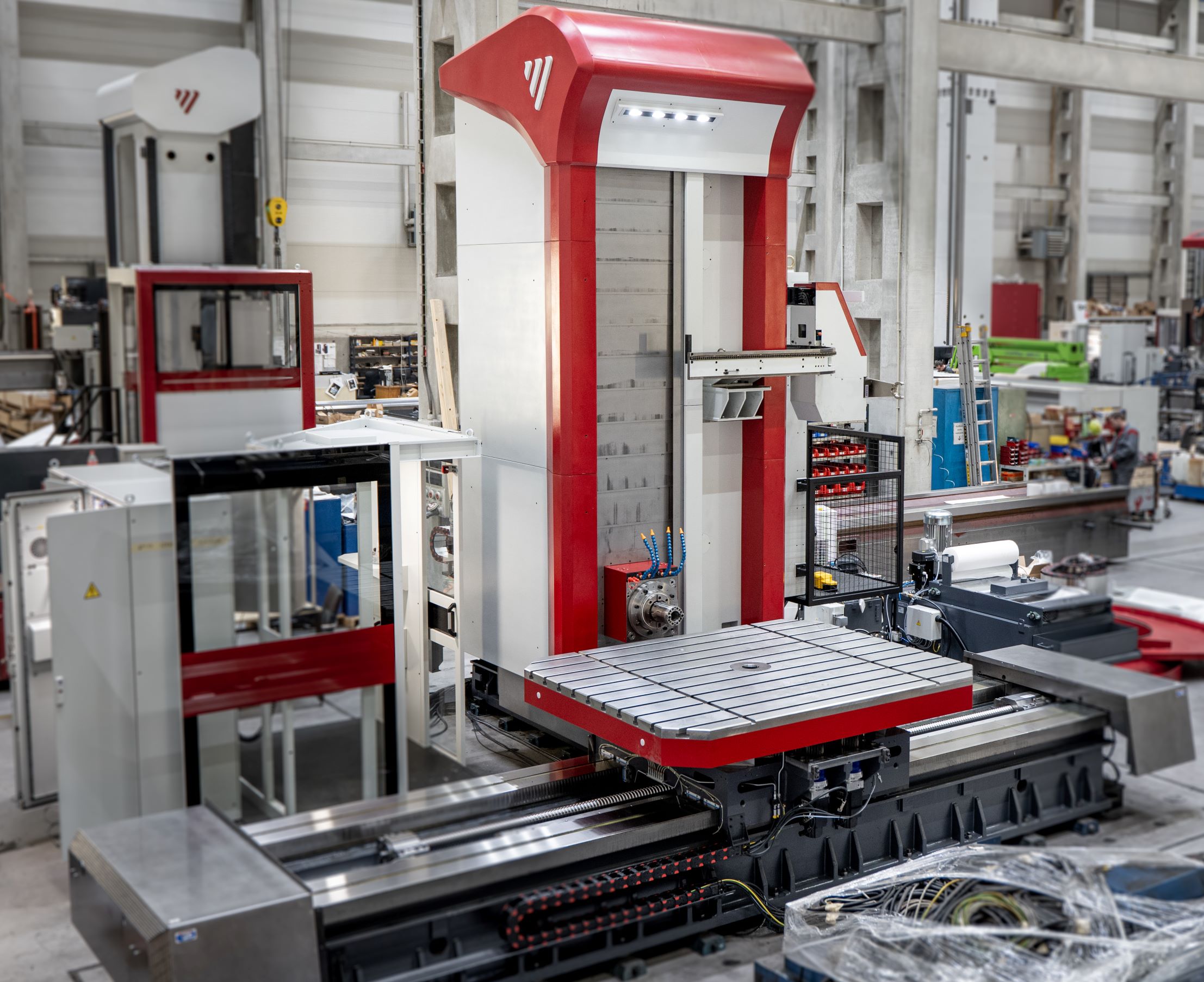

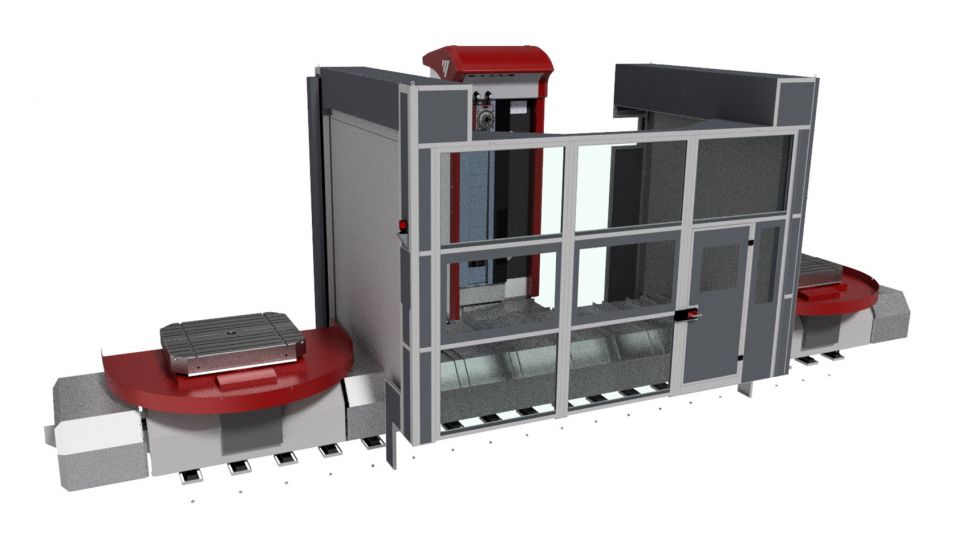

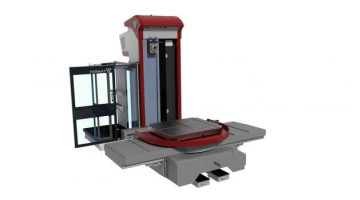

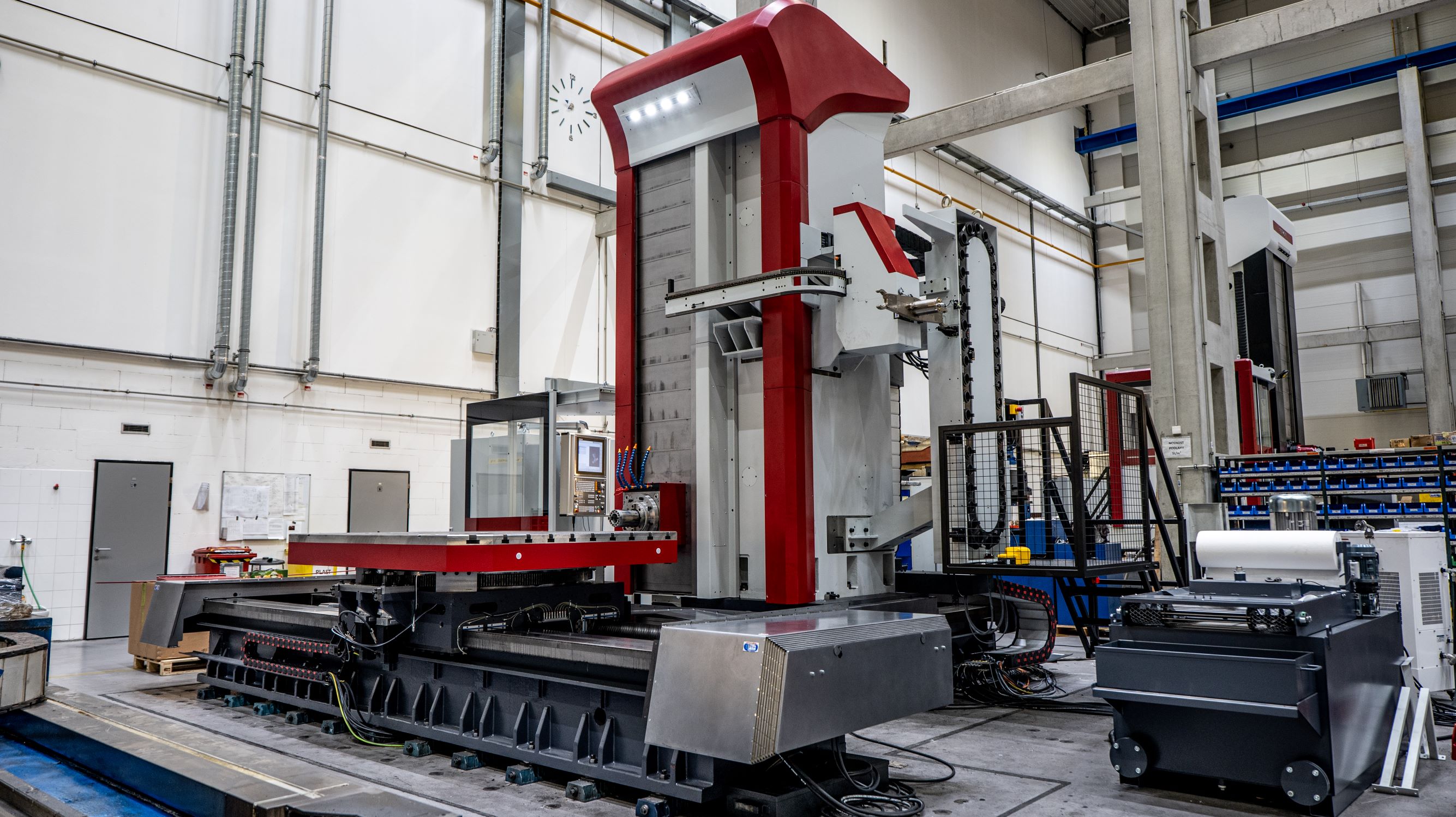

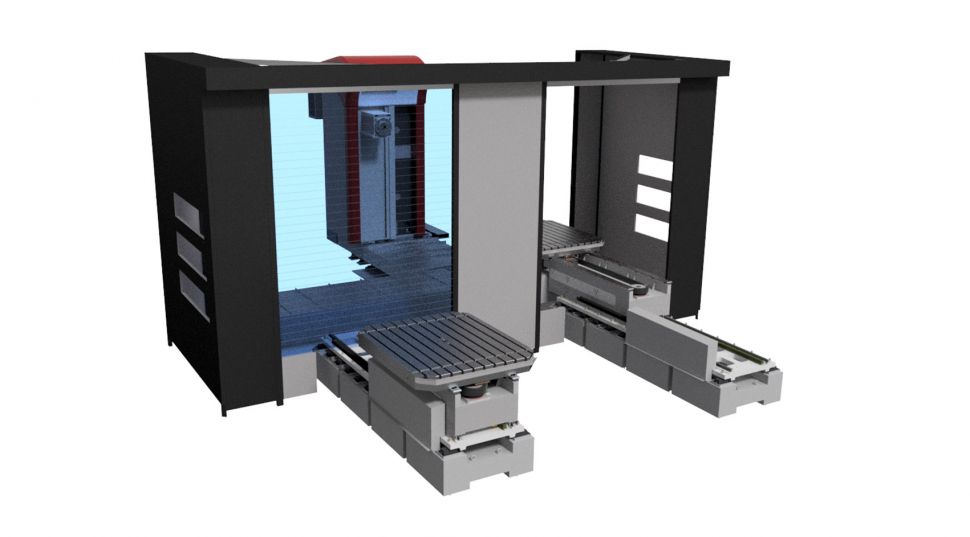

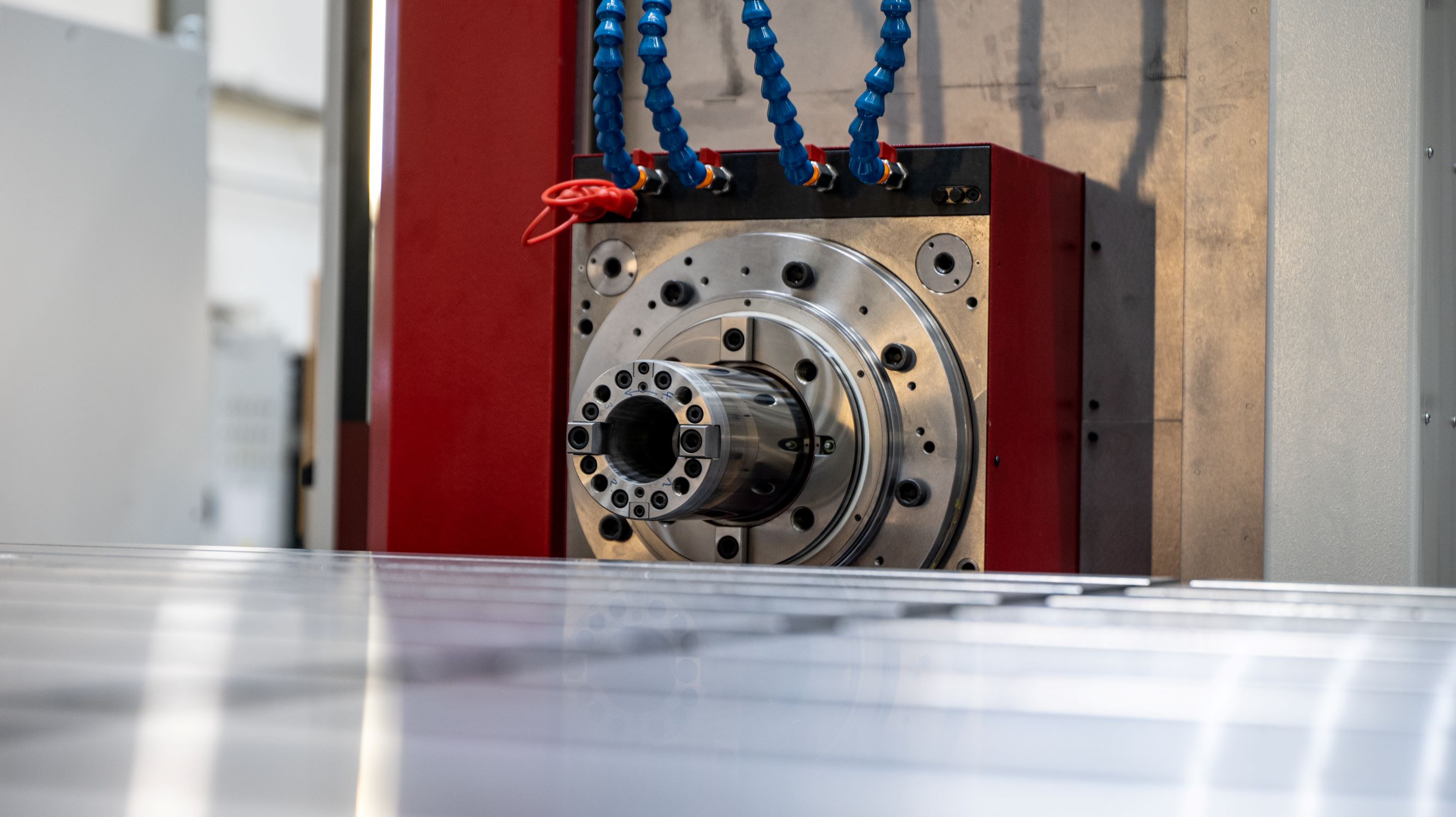

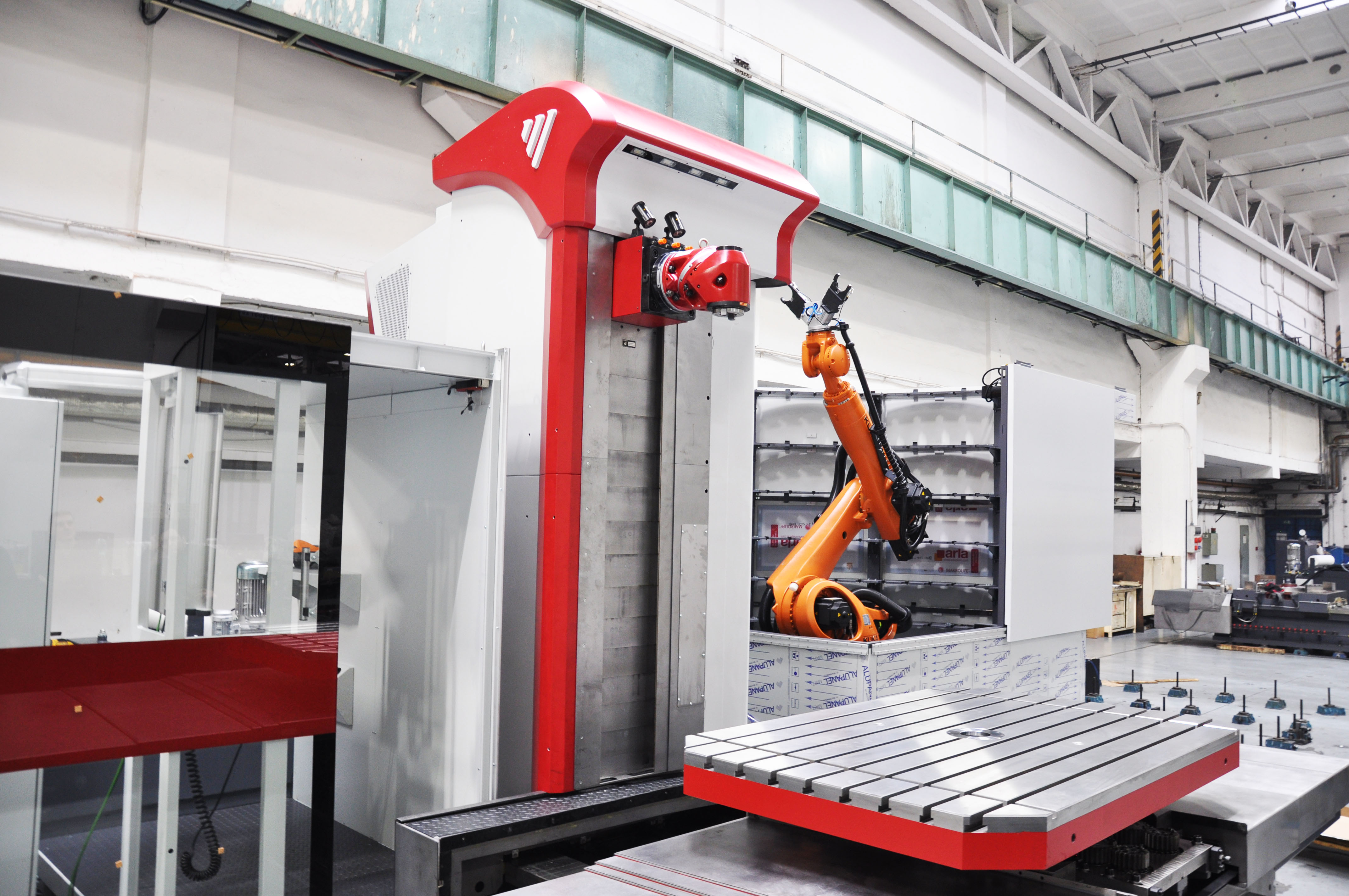

Most popular FERMAT table-type horizontal boring mill, for high-performance machining with maximum utilization of accessories and automatic milling heads for efficient machining of workpieces of up to 44 093 lbs / 20 tons. Spindle diameter 5.1 in / 130 mm, spindle travel 31.5 in / 800 mm. Optional ram stroke 27.6 in / 700 mm. Extremely versatile series of table-type horizontal boring mills, fully compatible with a wide range of accessories and automatic milling heads. Version with linear guideways (WFT 13 L) and/or with ram (WFT 13 R).
Powerful and precise milling, coordinate drilling, boring, and threading.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
*L = Linear Guideways
*R = Ram
|
|
Units
|
WFT 13
|
WFT 13 R, L
|
|
| Spindle Diameter |
in
|
5.1
|
||
|
mm
|
130
|
|||
| Spindle Taper |
|
SK 50 / CAT 50 (DIN, MAS 45°, ANSI)/BIG+/HSK10)
|
||
| Spindle Speed (max.) |
rpm
|
V130 - 3 400 (opt. 4 000)
|
||
| Main Power Heidenhain or SIEMENS CNC (S1/S6) |
hp
|
54.9 / 82.5; 71.1 / 104.5
|
||
|
kW
|
41/61.5; 53/77.9
|
|||
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6) |
Nm
|
2 099/3 149; 2 713/3 989
|
||
| Main Power FANUC CNC (S1/S3) |
hp
|
49.6/ 60.3; 71.1/104.5
|
||
|
kW
|
37/45; 53/77.9
|
|||
| Max. Torque FANUC (S1/S3) |
Nm
|
2 210/2 687; 2 713/3 989
|

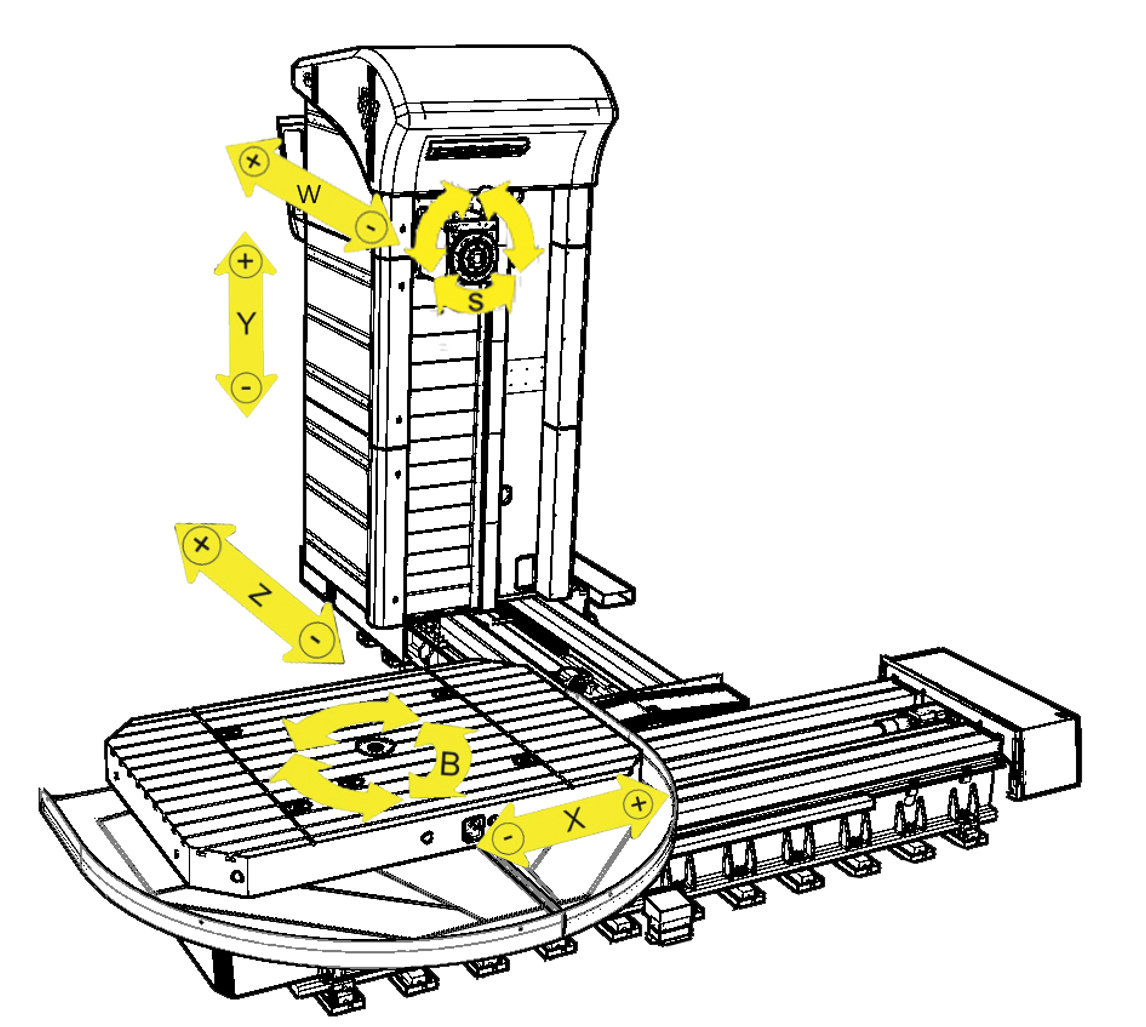

||
| X-Axis Cross Travel of Table |
in
|
78.7 / 118.1 / 157.5 / 196.9 (opt. for T25-50: 240.2 / 248)
|
||
|
mm
|
2 000 / 3 000 / 4 000 / 5 000 / (opt. for T25-50: 6 100 / 6 300)
|
|||
| Y-Axis Vertical Travel of Headstock |
in
|
78.7 / 98.4 / 118 / 137.8
|
||
|
mm
|
2 000 / 2 500 / 3 000 / 3 500
|
|||
| Z-Axis Longitudinal Travel of Column |
in
|
59.1 / 78.7 / 98.4 / 118
|
||
|
mm
|
1 500 / 2 000 / 2 500 / 3 000
|
|||
| W-Axis Spindle Travel |
in
|
31.5
|
||
|
mm
|
800
|
|||
| Ram Stroke in V-axis (opt.) |
in
|
|
27.6
|
|
|
mm
|
|
700
|
||
| Rapid Feed X, Y |
in/min
|
472.4, 472.4 (box GW); 787.4, 590.6 (Lin. GW Standard); 787.4, 984.3 (Lin GW Exclusive)
|
||
|
mm/min
|
12 000,12 000 (box GW); 20 000, 15 000 (Lin. GW Standard); 20 000, 25 000 (Lin GW Exclusive)
|
|||
| Rapid Feed Z, W |
in/min
|
334.6, 393.7 (Lin GW Exclusive); 787.4, 393.7 (Lin. GW Standard); 984.3, 393.7 (Lin GW Exclusive)
|
||
|
mm/min
|
8 500, 10 000 (Lin GW Exclusive); 20 000, 10 000 (Lin. GW Standard); 25 000, 10 000 (Lin GW Exclusive)
|
|||
| Rapid Feed V |
in/min
|
|
393.7
|
|
|
mm/min
|
|
10 000
|
||
| Rapid Feed B |
rpm
|
2 (opt. 5)
|

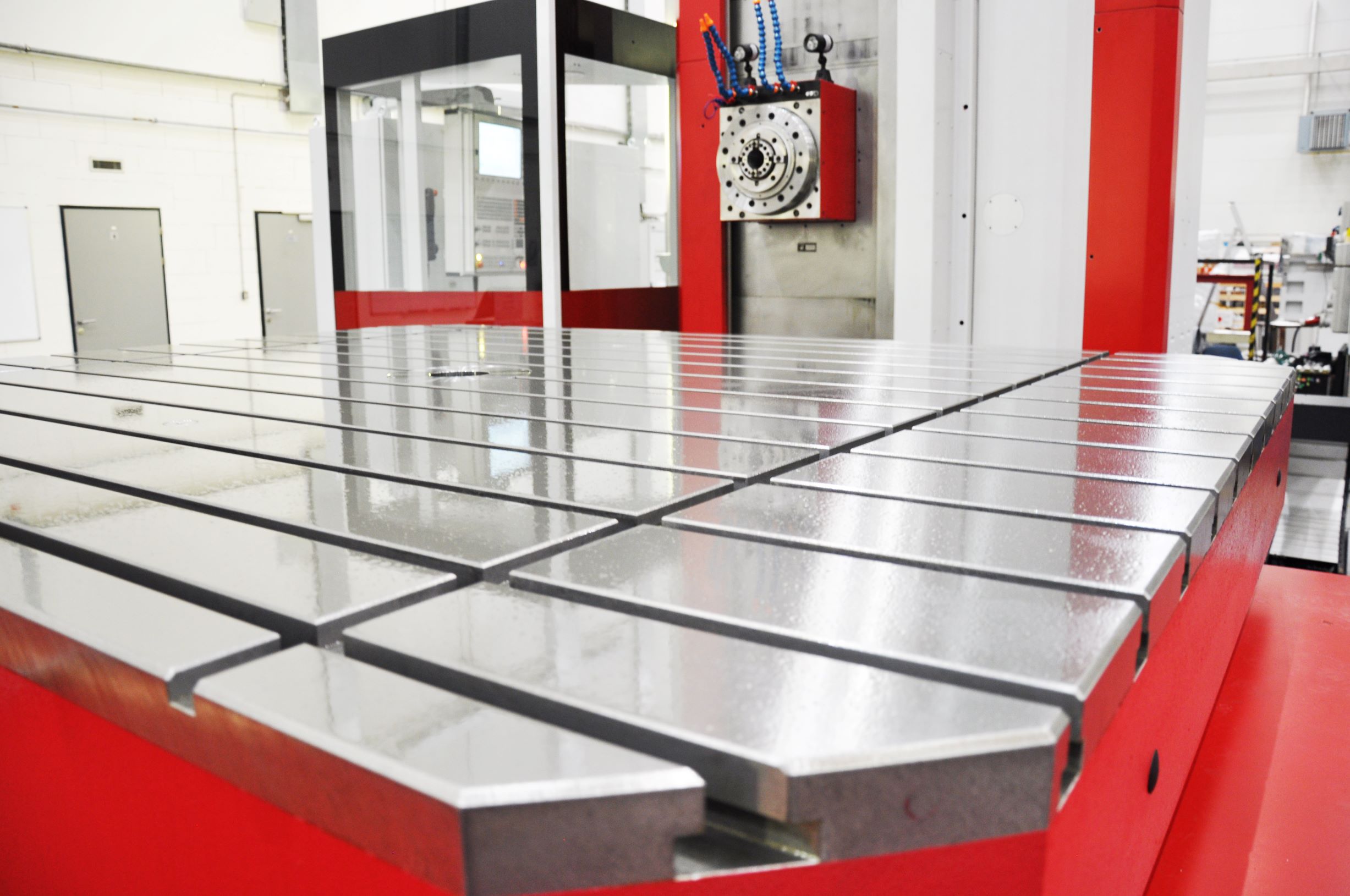

||
| Max. Table Load |
lbs
|
44 093 (opt. 22 046, 55 116, 110 231)
|
||
|
kg
|
20 000 (opt. 10 000, 25 000, 50 000)
|

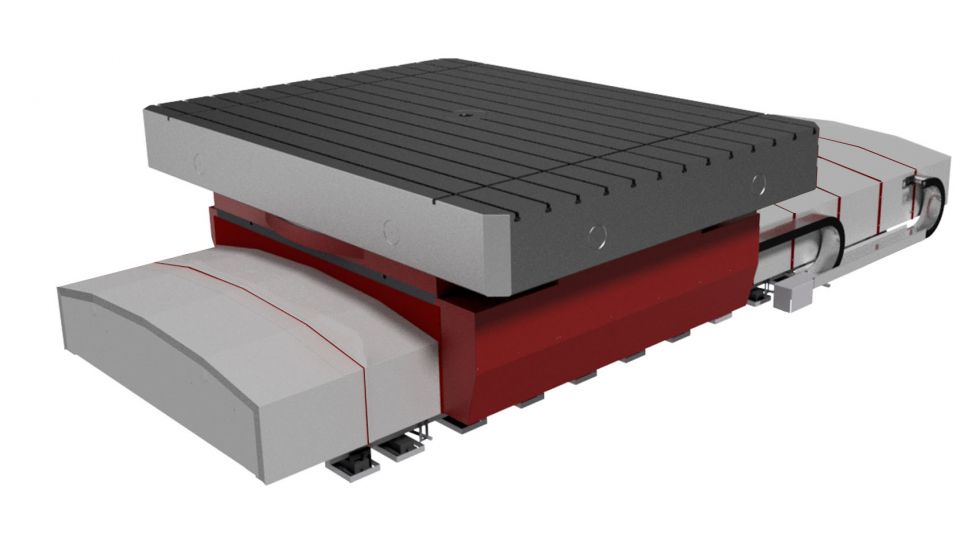

|||
| Table Size T20 |
in
|
63 x 70.9 / 70.9 x 86.6 / 70.9 x 102.4 / 78.7 x 94.5 / 98.4 x 98.4 / 78.7 x 118.1
|
||
|
mm
|
1 600 x 1 800 / 1 800 x 2 200 / 1 800 x 2 600 / 2 000 x 2 400 / 2 500 x 2 500 / 2 000 x 3 000
|

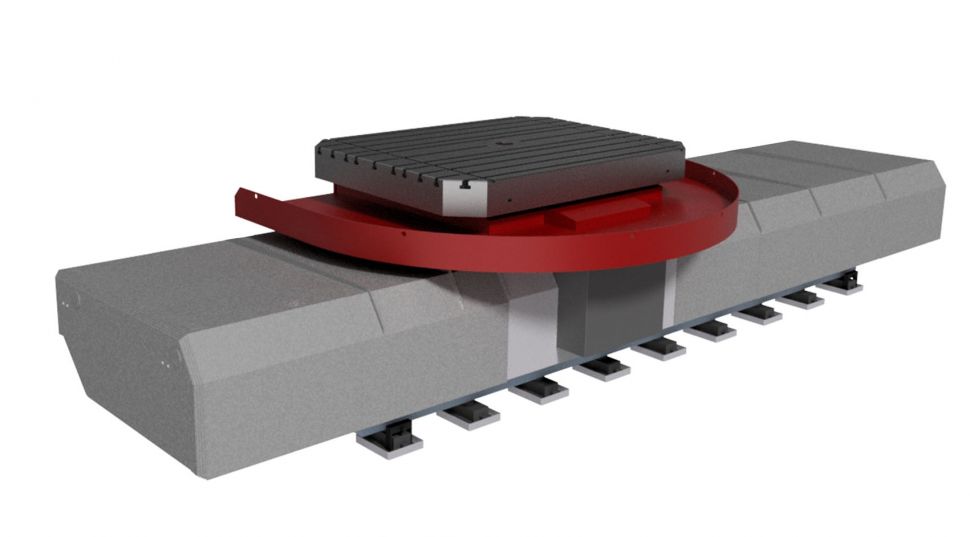

|||
| Table Size T25-50 |
in
|
78.7 x 78.7 / 78.7 x 98.4 / 78.7 x 118.1 / 98.4 x 98.4 / 98.4 x 118.1 / 98.4 x 137.8 / 118.1. x 118.1 / 118.1 x 137.8 / 137.8 x 137.8 / 98.4 x 196.9
|
||
|
mm
|
2 000 x 2 000 / 2 000 x 2 500 / 2 000 x 3 000 / 2 500 x 2 500 / 2 500 x 3 000 / 2 500 x 3 500 / 3 000 x 3 000 / 3 000 x 3 500 / 3 500 x 3 500 / 2 500 x 5 000
|
|||
| Table Size T10 |
in
|
47.2 x 47.2 / 47.2 x 55.1 / 55.1 x 63 / 63 x 63 / 55.1 x 70.9 / 63 x 70.9
|
||
|
mm
|
1 200 x 1 200 / 1 200 x 1 400 / 1 400 x 1 600 / 1 600 x 1 600 / 1 400 x 1 800 / 1 600 x 1 800
|
|||
