Horizontal table-type boring machines with cross table movement are designed for machining of small and medium-size workpieces of up to 50 tons / 110231 lbs.

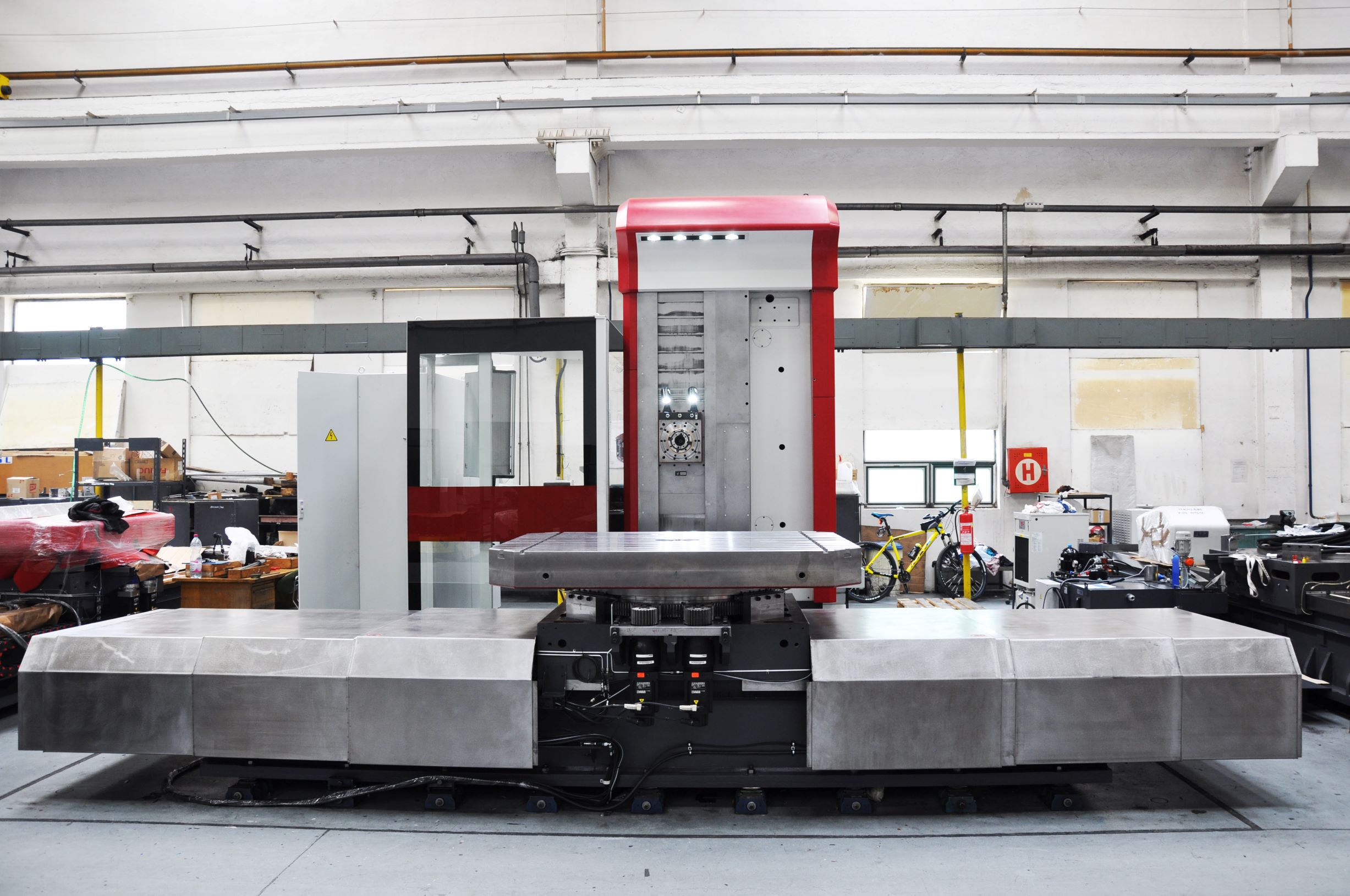

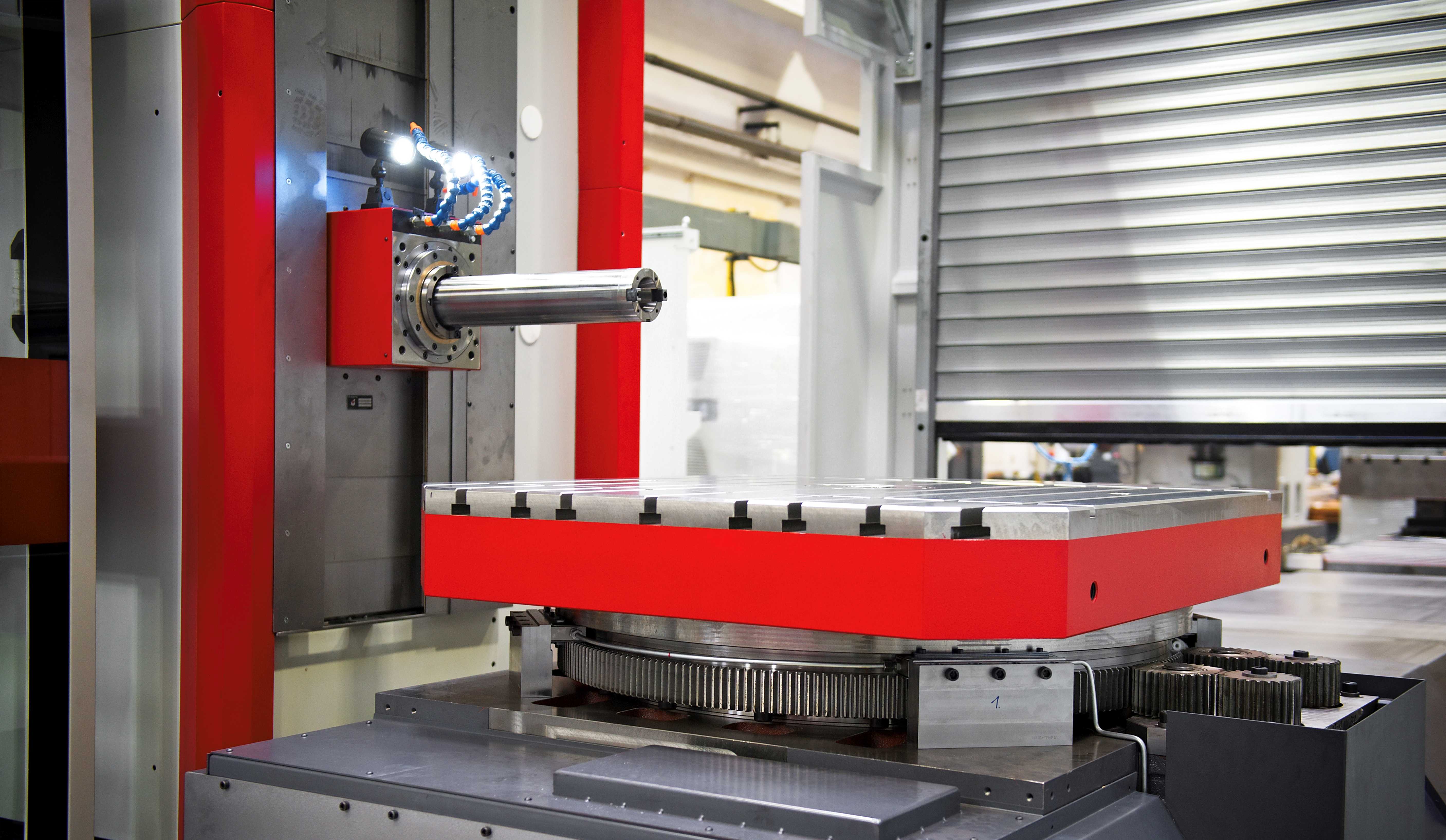

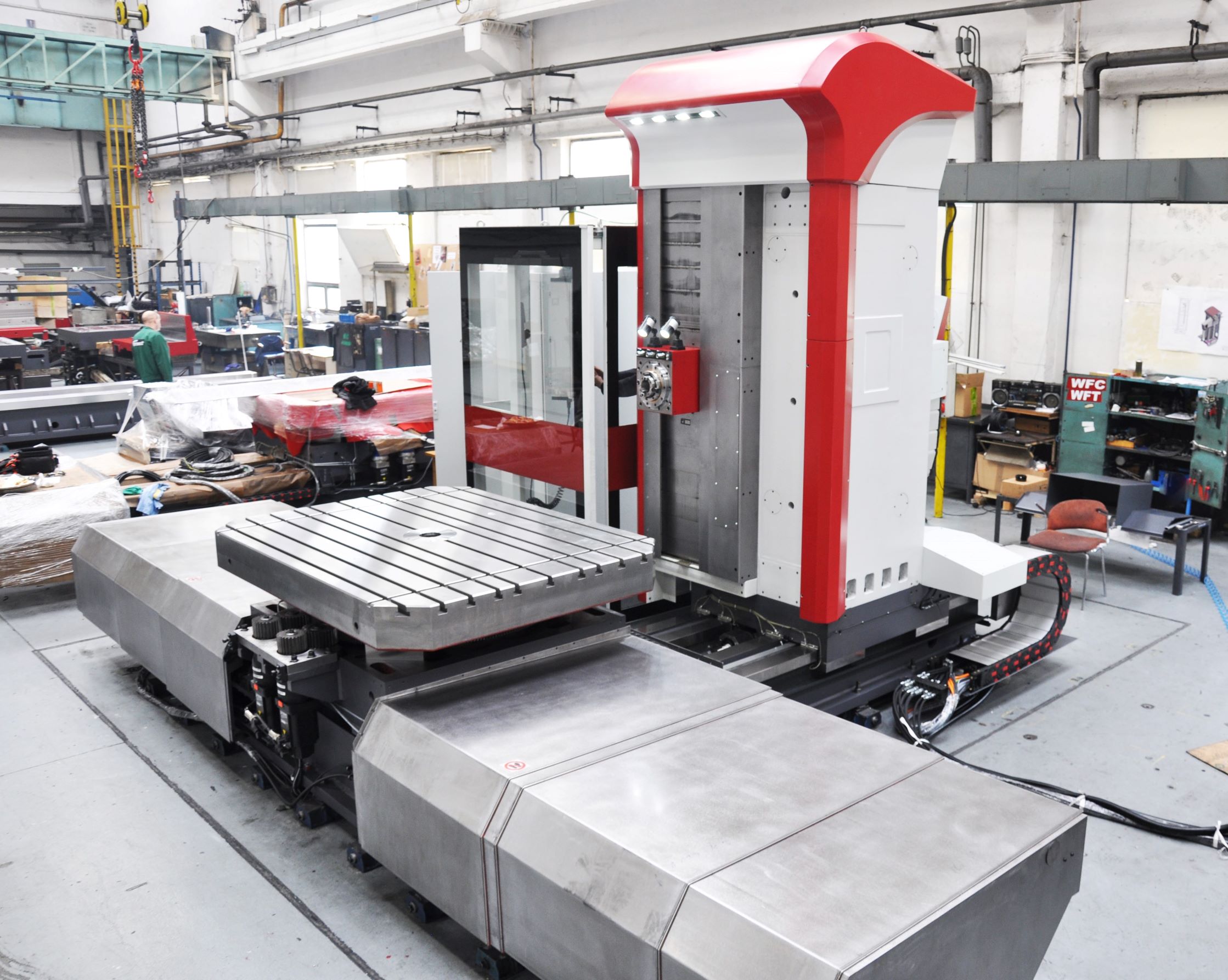

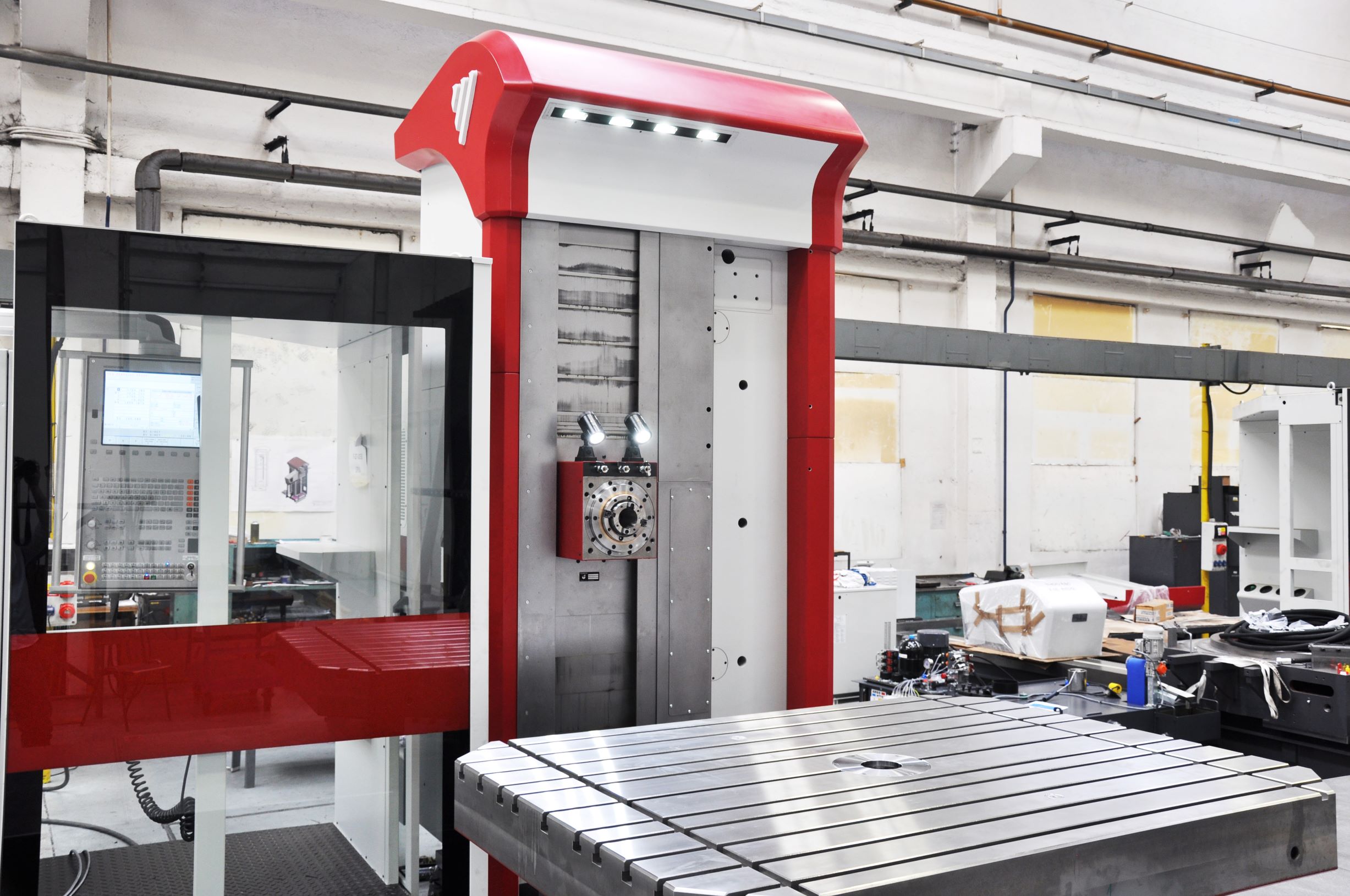

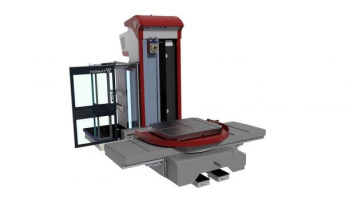

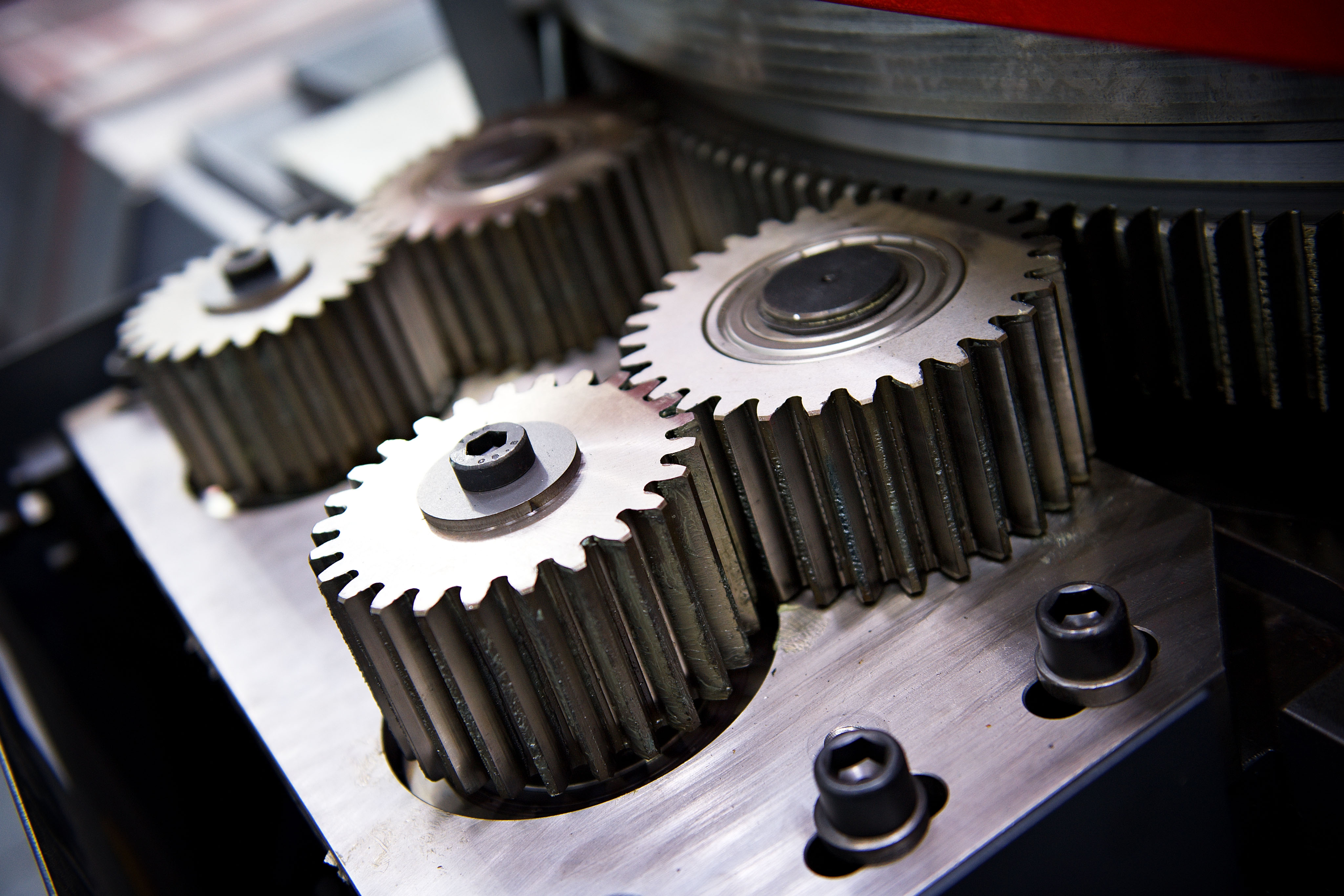

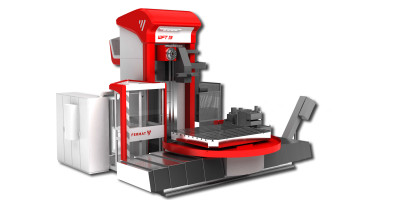

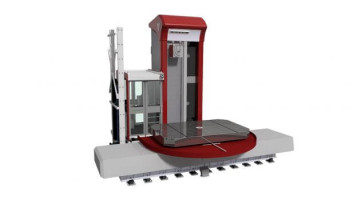

WFT 11 table-type horizontal medium-size mill, with longitudinal travel of column and cross-wise travel of table, designed for machining of workpieces of up to 22 046 lbs / 10 tons. Spindle diameter 3.9 in / 100 mm or 4.3 in / 110 mm and spindle travel 28.7 in / 730 mm. Optional version with longer X axis (118.1, 157.5, or 196.9 in / 3, 4, or 5 meters) for larger workpieces weighing up to 44 093 lbs / 20 metric tons. It is possible to equip the pallet change system to speed up processing. Version with linear guideways (WFT 10/ 11 L).
Suitable for machining longer weldments and complex welded frames.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
*L = Linear Guideways
|
|
units |
WFT 10/11
|
WFT 10/11 L |
| Spindle Diameter | in |
3.9 / 4.3
|
|
| mm |
100 / 110
|
||
| Spindle Taper |
|
SK 50 / CAT50 (DIN, MAS 45°, ANSI)
|
|
| Spindle Speed (max.) | rpm |
4 000 (opt. 5 000)
|
|
| Main Power Heidenhain or SIEMENS CNC (S1/S6-40%) | hp |
26.1/39.2; 41.5/62.3
|
|
| kW |
19.5/29.3; 31/46.5
|
||
| Max. Torque Heidenhain or SIEMENS CNC (S1/S6-40%) | Nm |
951/1 426; 1 416/2 124
|
|
| Main Power FANUC CNC (S1/S3-60%) | in |
29.5/34.8; 40.2/49.6
|
|
| kW |
22/26; 30/37
|
||
| Max. Torque FANUC CNC (S1/S3-60%) | Nm |
823/971; 1 370/1 692
|
|

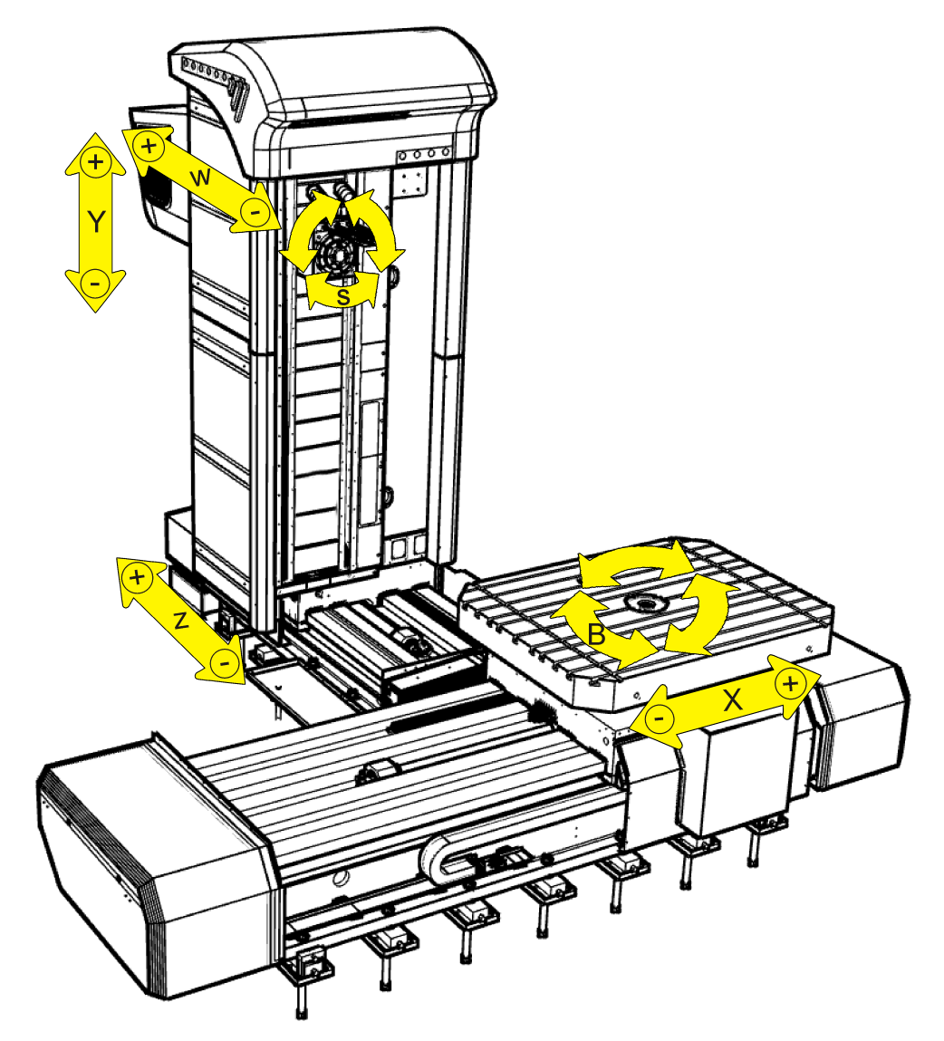

| X-Axis Cross Travel of Table | in |
78.7 / 118.1 for T10 (opt. 78.7 / 118.1 / 157.5 / 196.8 for T20)
|
|
| mm |
2 000 / 3000 for T10 (opt. 2 000 / 3 000 / 4 000 / 5 000 for T20)
|
||
| Y-Axis Vertical Travel of Headstock | in |
49.2 / 66.9 / 78.7
|
|
| mm |
1 250 / 1 700 / 2 000
|
||
| Z-Axis Longitudinal Travel of Column | in |
49.2 / 66.9
|
59
|
| mm |
1 250 / 1 700
|
1 500
|
|
| W-Axis Spindle Travel | in |
28.7
|
|
| mm |
730
|
||
| Rapid Feed X, Y, Z | in/min |
314.9
|
472.4
|
| mm/min |
8 000
|
12 000
|
|
| Rapid Feed W | in/min |
314.9
|
472.4
|
| mm/min |
8 000
|
12 000
|
|
| Rapid Feed B | rpm |
2 (opt. 5)
|
|
| Max. Table Load | lbs |
22 046 (opt. 44 092)
|
|
| kg |
10 000 (opt. 20 000)
|
||
| Table Size | in |
47.2 x 47.2 / 47.2 x 55.1 / 55.1 x 62.9 / 55.1 x 70.8 / 62.9 x 62.9 / 62.9 x 70.8 (opt. 62.9 x 70.9 / 70.9 x 86.6 / 70.9 x 102.4 / 78.7 x 94.5 / 78.7 x 118.1 / 98.4 x 98.4
|
|
| mm |
1200 x 1200 / 1200 x 1400 / 1400 x 1600 / 1400 x 1800 / 1600 x 1600 / 1600 x 1800 (opt. 1 600 x 1 800 / 1 800 x 2 200 / 1 800 x 2 600 / 2 000 x 2 400 / 2 000 x 3 000 / 2 500 x 2 500 |
||
