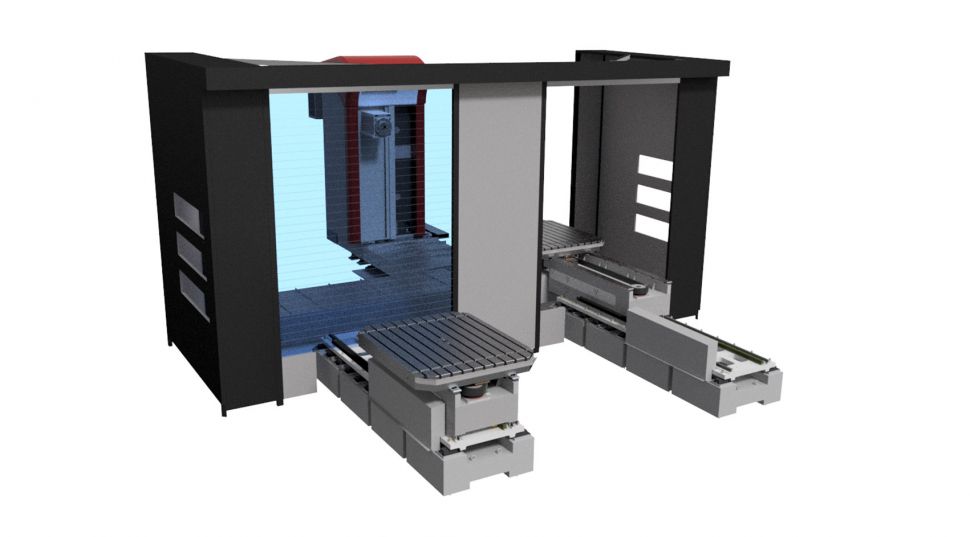

Cross-Wise Pallete Changer

Cross-Wise Pallete Changer on the machine reduces unproductive time during machining r. Machining can be carried out on one pallet, while the others can be used for preparation (cleaning of table, set up of work-piece).

• 2 pallets are perpendicular to the X axis, each on its own bed.

• Max. load of one pallet: 15 tons | 33 069 lbs.

• Pallets Dimensions: 63 x 71 in / 1 600 x 1 800 mm, 71 in / 87 in / 1 800 x 2 200 mm, 79 in x 95 in / 2 000 x 2 400 mm.
