All the tables have outstanding positioning precision (4 arc sec. 0.010 mm / 1000 mm radius). There is no slip-stick during table positioning. Due to simple design and assembled components, FERMAT tables require minimum maintenance and adjustments during their lifetime.

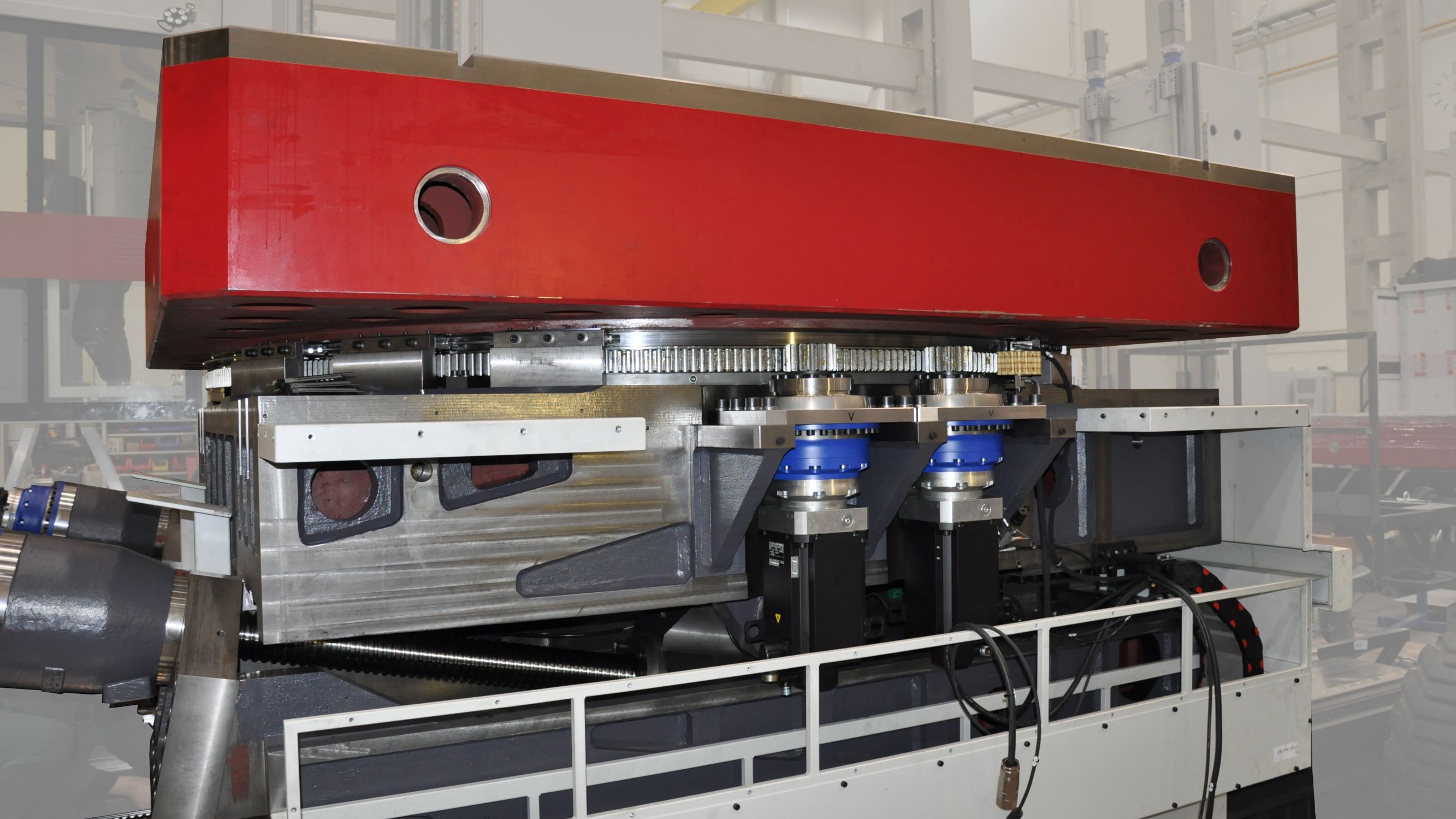

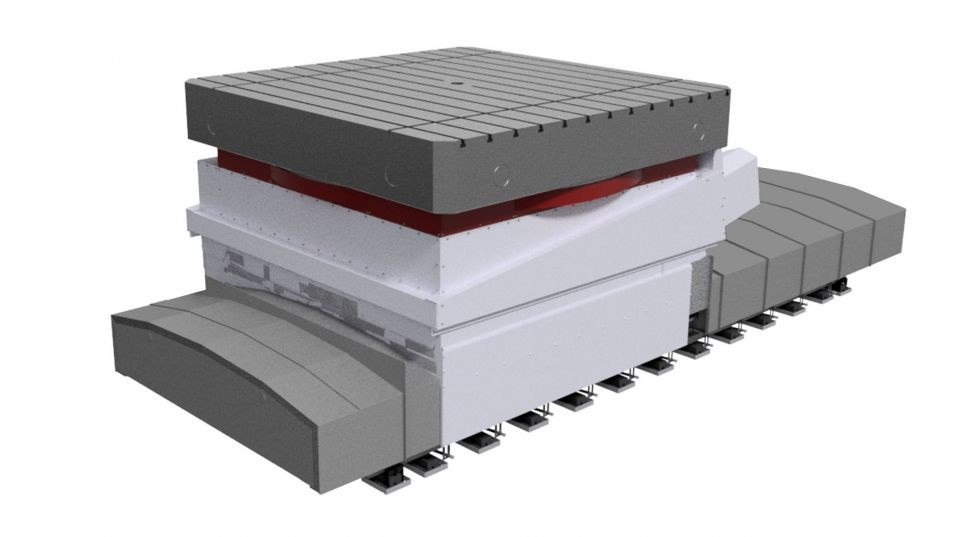

The rotary table consists of bed, slide, and rotary clamping plate. The slide enables the rotary clamping plate to move in the V-axis. The clamping plate is fitted onto a cross roller bearing that secures high load capacity with minimal passive resistance. In order to achieve precision in work pieces, the rotary table is hydraulically clamped at 12 points to avoid rotation during the working process.
The table is governed by the control system of the machine, and there is a rotary encoder in the center of the table that facilitates the automatic positioning in increments of 0.001°. As a standard, the rotary table operates as a continuous 4th axis.
|
|
units
|
TT 60/80
|
| Clamping Plate Size |
in
|
118 x 118, 118 x 138, 118 x 158, 158 x 158
|
|
mm
|
3 000 x 3000, 3 000 x 3 500, 3000 x 4 000, 4 000 x 4 000 |
|
| Max. Table Load |
lbs
|
132 277, 176 370
|
|
kg
|
60 000, 80 000
|
|
| Table Travel |
in
|
79 - 315
|
|
mm
|
2 000 - 8 000
|
|
| T-Slots Size |
|
28H8 / 28H12 (opt. 36H8 /36H12)
|
|
|
in/min
|
0.04 - 394
|
| Operation Travel V-Axis |
mm/min
|
1 - 10 000
|
| Operation Travel B-Axis |
rpm
|
0 - 1.7
|

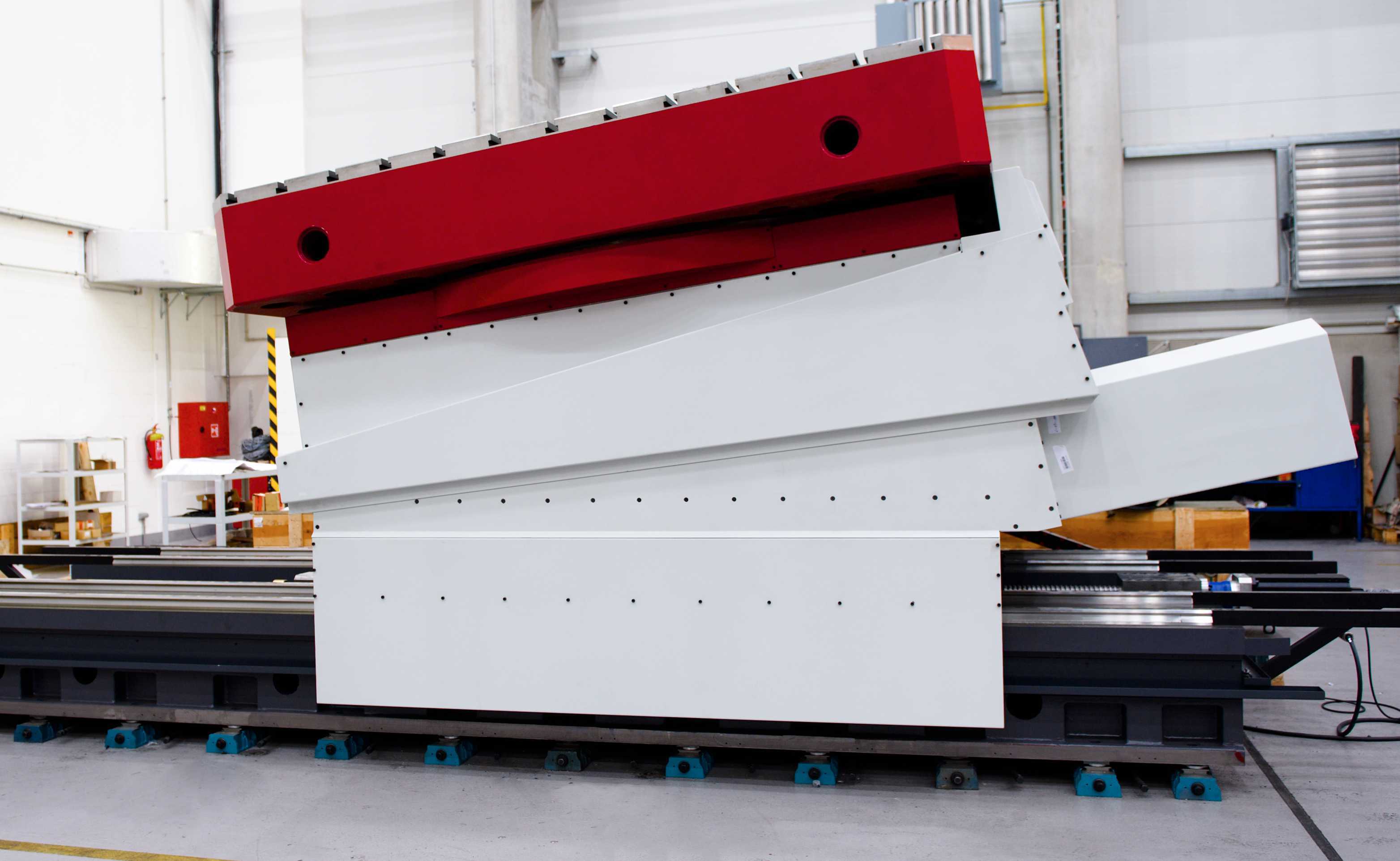

| Tilting Angle |
°
|
0 - 10
|
